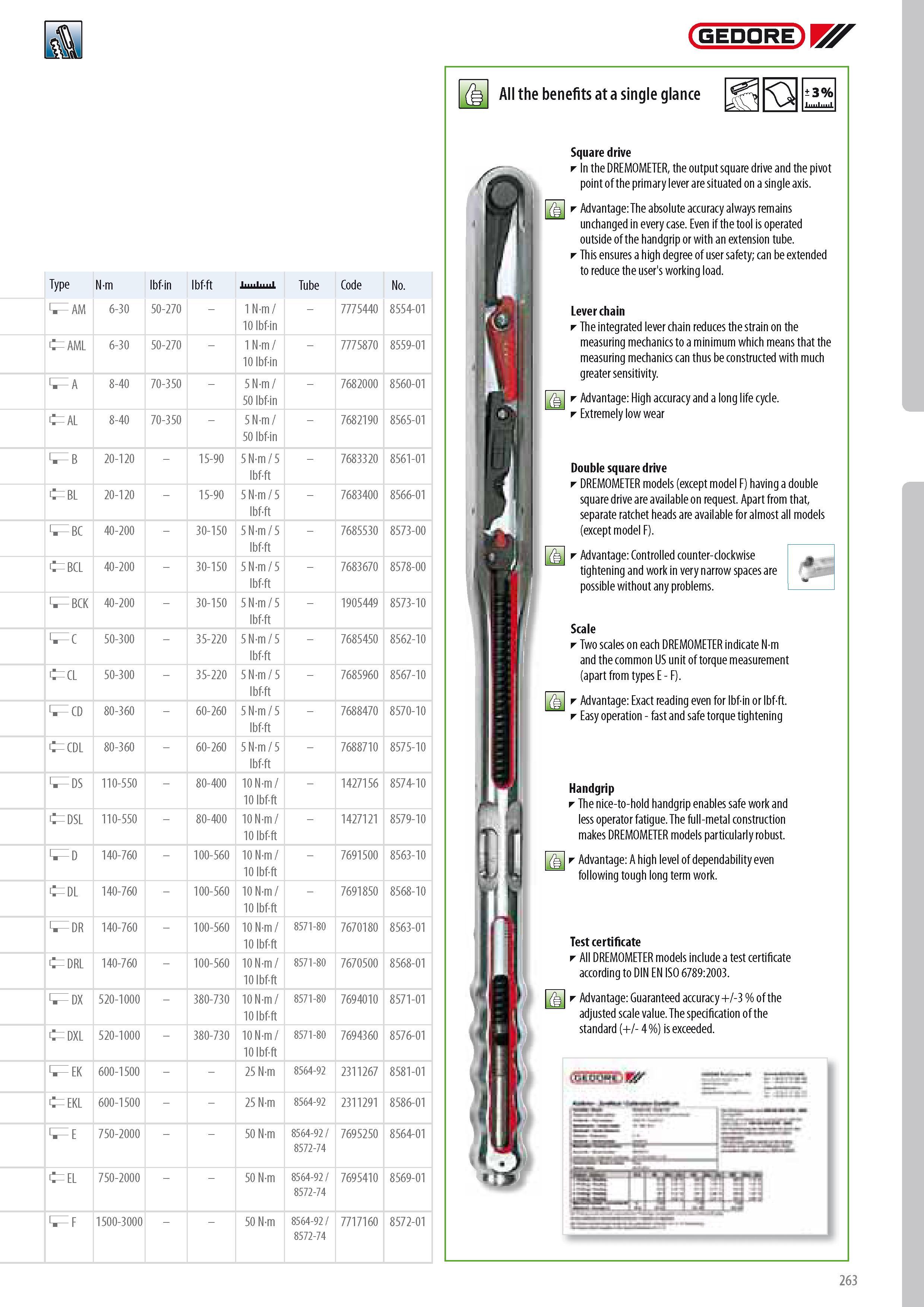

265 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.263

Каталог GEDORE 2014 Слесарный инструмент Стр. 263 0265 ENG Lab2u

GEDORE Type N-m lbfin lbf-ft Tube Code No. S AM 6-30 50-270 - 1 N-m 10 lbfin - 7775440 8554-01 AML 6-30 50-270 - 1 N-m 10 lbfin - 7775870 8559-01 S A 8-40 70-350 - 5 N-m 50 lbfin - 7682000 8560-01 AL 8-40 70-350 - 5 N-m 50 lbfin - 7682190 8565-01 S B 20-120 - 15-90 5 N-m 5 lbf-ft - 7683320 8561-01 BL 20-120 - 15-90 5 N-m 5 lbf-ft - 7683400 8566-01 S BC 40-200 - 30-150 5 N-m 5 lbf-ft - 7685530 8573-00 BCL 40-200 - 30-150 5 N-m 5 lbf-ft - 7683670 8578-00 S BCK 40-200 - 30-150 5 N-m 5 lbf-ft - 1905449 8573-10 S C 50-300 - 35-220 5 N-m 5 lbf-ft - 7685450 8562-10 CL 50-300 - 35-220 5 N-m 5 lbf-ft - 7685960 8567-10 S CD 80-360 - 60-260 5 N-m 5 lbf-ft - 7688470 8570-10 CDL 80-360 - 60-260 5 N-m 5 lbf-ft - 7688710 8575-10 S DS 110-550 - 80-400 10 N-m 10 lbf-ft - 1427156 8574-10 DSL 110-550 - 80-400 10 N-m 10 lbf-ft - 1427121 8579-10 S D 140-760 - 100-560 10 N-m 10 lbf-ft - 7691500 8563-10 DL 140-760 - 100-560 10 N-m 10 lbf-ft - 7691850 8568-10 S DR 140-760 - 100-560 10 N-m 10 lbf-ft 8571-80 7670180 8563-01 DRL 140-760 - 100-560 10 N-m 10 lbf-ft 8571-80 7670500 8568-01 S DX 520-1000 - 380-730 10 N-m 10 lbf-ft 8571-80 7694010 8571-01 DXL 520-1000 - 380-730 10 N-m 10 lbf-ft 8571-80 7694360 8576-01 S EK 600-1500 25 N-m 8564-92 2311267 8581-01 EKL 600-1500 25 N-m 8564-92 2311291 8586-01 S E 750-2000 50 N-m 8564-92 8572-74 7695250 8564-01 EL 750-2000 50 N-m 8564-92 8572-74 7695410 8569-01 S F 1500-3000 50 N-m 8564-92 8572-74 7717160 8572-01 d All the benefits at a single glance 3% A Square drive In the DREMOMETER the output square drive and the pivot point of the primary lever are situated on a single axis. Advantage The absolute accuracy always remains unchanged in every case. Even if the tool is operated outside of the handgrip or with an extension tube. This ensures a high degree of user safety; can be extended to reduce the user's working load. Lever chain The integrated lever chain reduces the strain on the measuring mechanics to a minimum which means that the measuring mechanics can thus be constructed with much greater sensitivity. Advantage High accuracy and a long life cycle. Extremely low wear Double square drive DREMOMETER models (except model F) having a double square drive are available on request. Apart from that separate ratchet heads are available for almost all models (except model F). Advantage Controlled counter-clockwise tightening and work in very narrow spaces are possible without any problems. Scale Two scales on each DREMOMETER indicate N-m and the common US unit of torque measurement (apart from types E - F). Advantage Exact reading even for lbfin or lbf-ft. Easy operation - fast and safe torque tightening Handgrip The nice-to-hold handgrip enables safe work and less operator fatigue. The full-metal construction makes DREMOMETER models particularly robust. Advantage A high level of dependability even following tough long term work. Test certificate All DREMOMETER models include a test certificate according to DIN EN ISO 6789:2003. Advantage Guaranteed accuracy + -3 % of the adjusted scale value. The specification of the standard (+ - 4 %) is exceeded. 263
