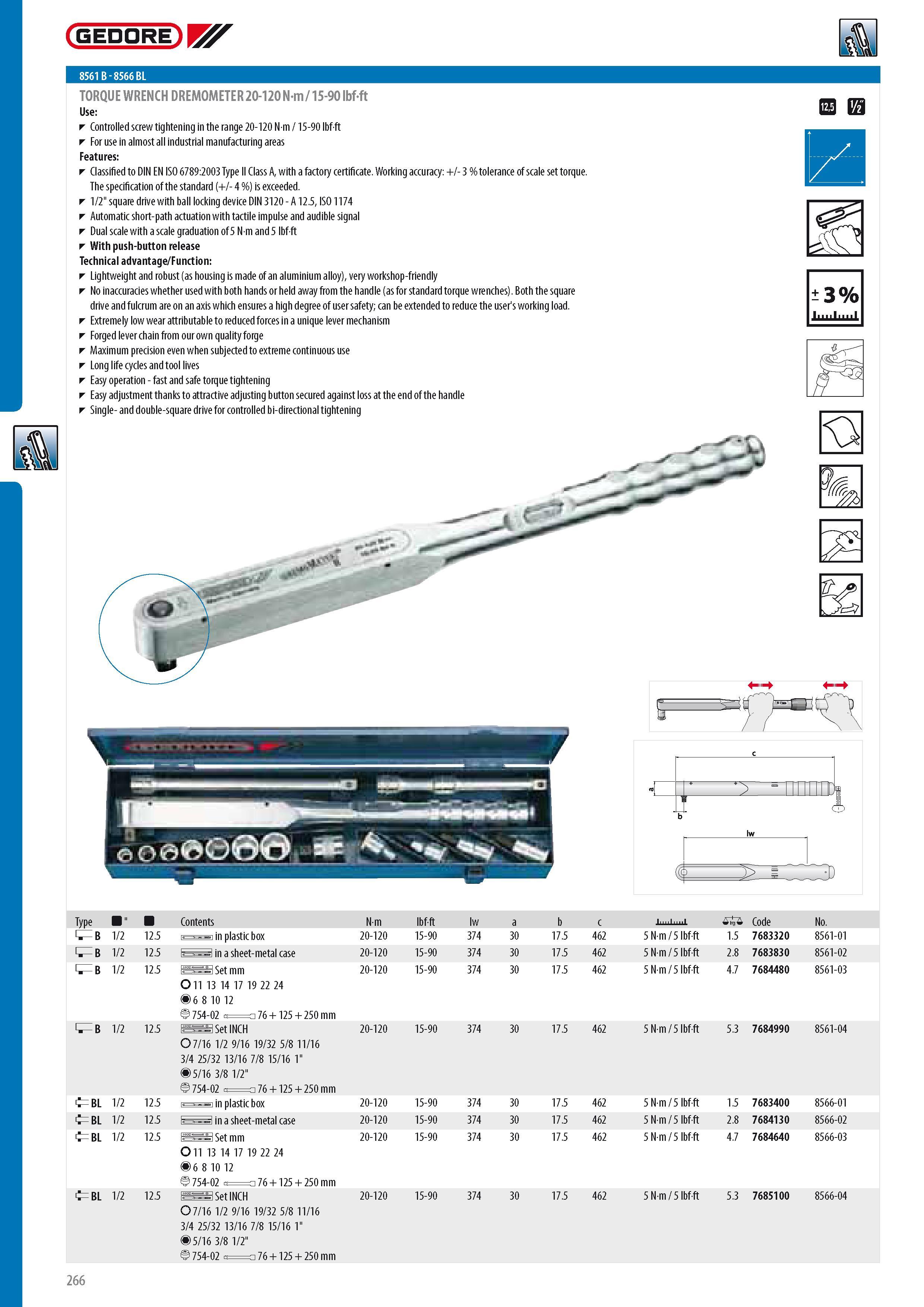

GEDORE 8561 B - 8566 BL TORQUE WRENCH DREMOMETER 20-120 N-m 15-90 lbf-ft Controlled screw tightening in the range 20-120 N m 15-90 lbf-ft For use in almost all industrial manufacturing areas Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. 1 2" square drive with ball locking device DIN 3120 - A 12.5 ISO 1174 Automatic short-path actuation with tactile impulse and audible signal Dual scale with a scale graduation of 5 N m and 5 lbf-ft With push-button release Technical advantage Function Lightweight and robust (as housing is made of an aluminium alloy) very workshop-friendly No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load. Extremely low wear attributable to reduced forces in a unique lever mechanism Forged lever chain from our own quality forge Maximum precision even when subjected to extreme continuous use Long life cycles and tool lives Easy operation - fast and safe torque tightening Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle Single- and double-square drive for controlled bi-directional tightening MM O d Is 3% & Type " Contents Nm lbf-ft lw a b c 0 Code No. S B 1 2 12.5 in plastic box 20-120 15-90 374 30 17.5 462 5 Nm 5 lbf-ft 1.5 7683320 8561-01 S B 1 2 12.5 i in a sheet-metal case 20-120 15-90 374 30 17.5 462 5 Nm 5 lbf-ft 2.8 7683830 8561-02 S B 1 2 12.5 Set mm 20-120 15-90 374 30 17.5 462 5 Nm 5 lbf-ft 4.7 7684480 8561-03 S B 1 2 12.5 BL 1 2 BL 1 2 BL 1 2 12.5 12.5 12.5 BL 1 2 12.5 O11 13 14 17 19 22 24 56 8 10 12 754-02 76 + 125 + 250 mm Set INCH O7 16 1 2 9 16 19 32 5 8 11 16 3 4 25 32 13 16 7 8 15 16 1" 55 16 3 8 1 2" 754-02 76 + 125 + 250 mm in plastic box i in a sheet-metal case Set mm O 11 13 14 17 19 22 24 5 6 8 10 12 754-02 76 + 125 + 250 mm Set INCH O7 16 1 2 9 16 19 32 5 8 11 16 3 4 25 32 13 16 7 8 15 16 1" 5 5 16 3 8 1 2" 754-02 76 + 125 + 250 mm 20-120 15-90 374 17.5 462 5 Nm 5 lbf-ft 5.3 7684990 8561-04 20-120 15-90 374 30 17.5 462 5 Nm 5 lbf-ft 1.5 7683400 8566-01 20-120 15-90 374 30 17.5 462 5 Nm 5 lbf-ft 2.8 7684130 8566-02 20-120 15-90 374 30 17.5 462 5 Nm 5 lbf-ft 4.7 7684640 8566-03 20-120 15-90 374 30 17.5 462 5 Nm 5 lbf-ft 5.3 7685100 8566-04 30 266
