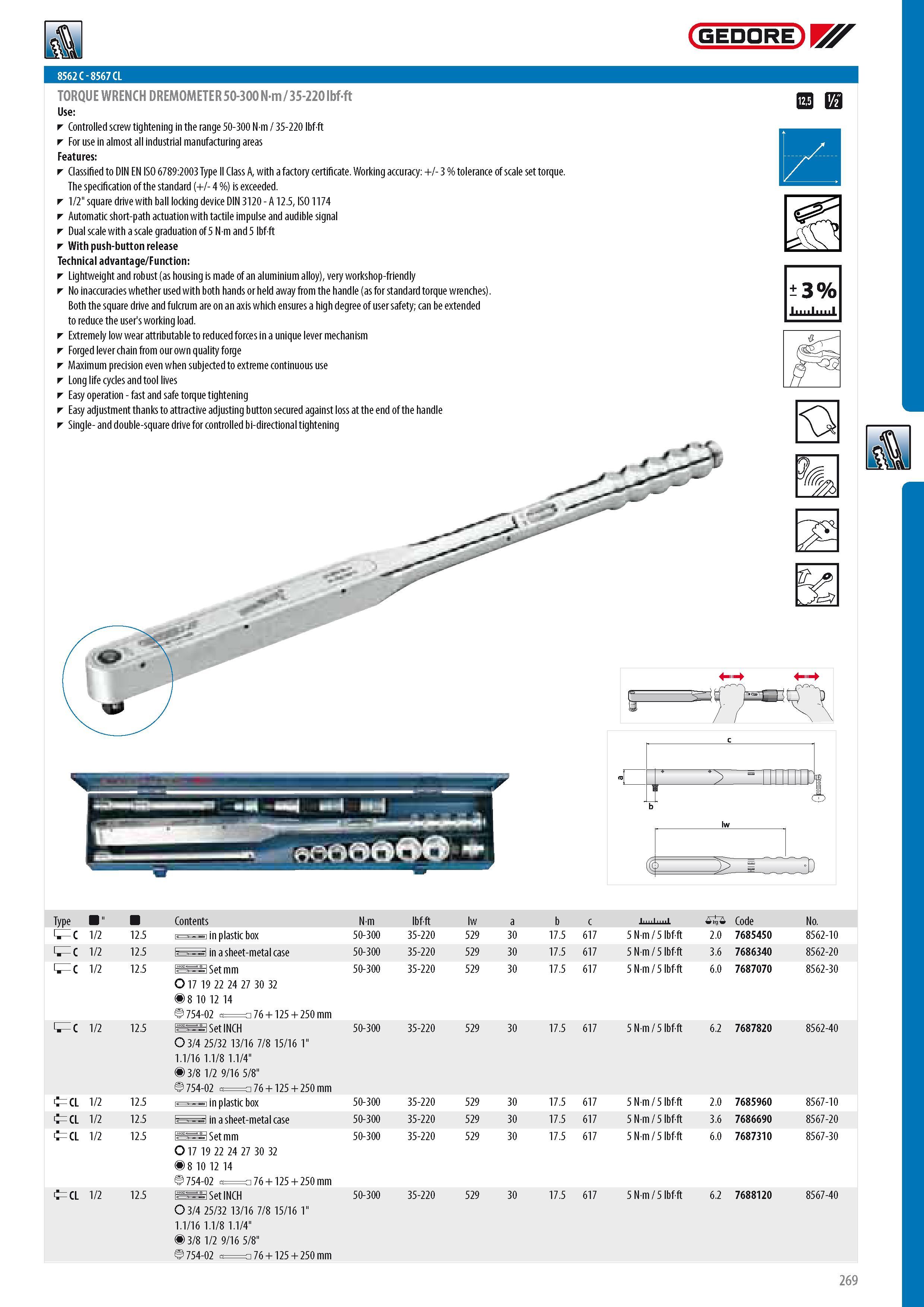

8562 C - 8567 CL TORQUE WRENCH DREMOMETER 50-300 Nm 35-220 lbf-ft Controlled screw tightening in the range 50-300 N m 35-220 lbf-ft For use in almost all industrial manufacturing areas Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. 1 2" square drive with ball locking device DIN 3120 - A 12.5 ISO 1174 Automatic short-path actuation with tactile impulse and audible signal Dual scale with a scale graduation of 5 N m and 5 lbf-ft With push-button release Technical advantage Function Lightweight and robust (as housing is made of an aluminium alloy) very workshop-friendly No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load. Extremely low wear attributable to reduced forces in a unique lever mechanism Forged lever chain from our own quality forge Maximum precision even when subjected to extreme continuous use Long life cycles and tool lives Easy operation - fast and safe torque tightening Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle Single- and double-square drive for controlled bi-directional tightening GEDORE o d i3% 11111 & (i Type " S C 1 2 S C 1 2 S C 1 2 tCL 1 2 tCL 1 2 tCL 1 2 CL 1 2 Contents 12.5 in plastic box 12.5 i i in a sheet-metal case 12.5 Set mm O17 19 22 24 27 30 32 5 8 10 12 14 754-02 76 + 125 + 250 mm 12.5 Set INCH O 3 4 25 32 13 16 7 8 15 16 1" 1.1 16 1.1 8 1.1 4" 5 3 8 1 2 9 16 5 8" 754-02 76 + 125 + 250 mm 12.5 in plastic box 12.5 i in a sheet-metal case 12.5 Set mm O17 19 22 24 27 30 32 5 8 10 12 14 754-02 76 + 125 + 250 mm 12.5 Set INCH O 3 4 25 32 13 16 7 8 15 16 1" 1.1 16 1.1 8 1.1 4" 5 3 8 1 2 9 16 5 8" 754-02 76 + 125 + 250 mm Nm lbf-ft lw a b c 0 Code No. 50-300 35-220 529 30 17.5 617 5 Nm 5 lbf-ft 2.0 7685450 8562-10 50-300 35-220 529 30 17.5 617 5 Nm 5 lbf-ft 3.6 7686340 8562-20 50-300 35-220 529 30 17.5 617 5 Nm 5 lbf-ft 6.0 7687070 8562-30 50-300 35-220 529 30 17.5 617 5 Nm 5 lbf-ft 6.2 7687820 8562-40 50-300 35-220 529 30 17.5 617 5 Nm 5 lbf-ft 2.0 7685960 8567-10 50-300 35-220 529 30 17.5 617 5 Nm 5 lbf-ft 3.6 7686690 8567-20 50-300 35-220 529 30 17.5 617 5 Nm 5 lbf-ft 6.0 7687310 8567-30 50-300 35-220 529 30 17.5 617 5 Nm 5 lbf-ft 6.2 7688120 8567-40 269
