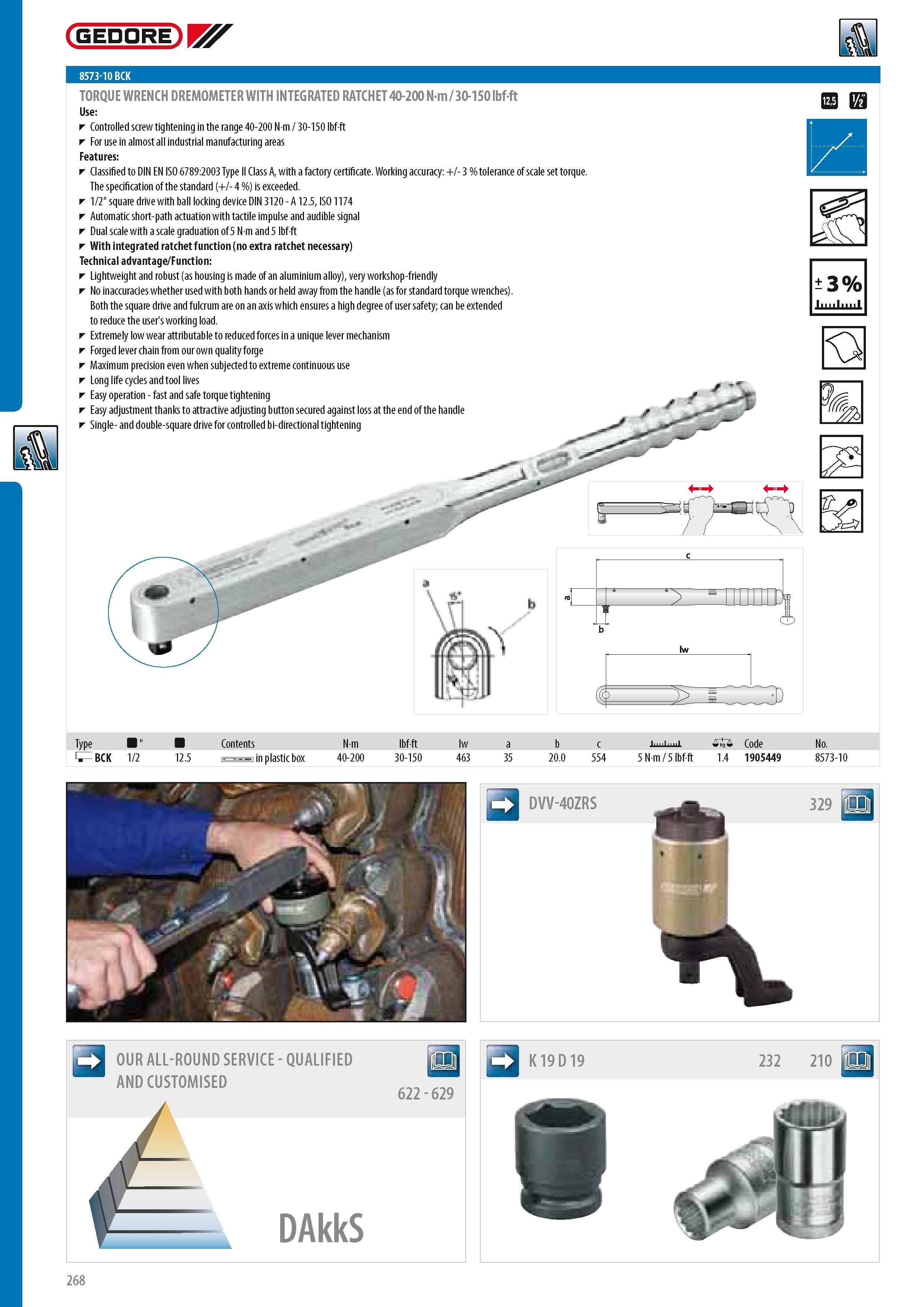

GEDORE 8573-10 BCK TORQUE WRENCH DREMOMETER WITH INTEGRATED RATCHET 40-200 Nm 30-150 ibfft Controlled screw tightening in the range 40-200 N m 30-150 lbfft For use in almost all industrial manufacturing areas Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. 1 2" square drive with ball locking device DIN 3120 - A 12.5 ISO 1174 Automatic short-path actuation with tactile impulse and audible signal Dual scale with a scale graduation of 5 N m and 5 lbf ft With integrated ratchet function (no extra ratchet necessary) Technical advantage Function Lightweight and robust (as housing is made of an aluminium alloy) very workshop-friendly No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load. Extremely low wear attributable to reduced forces in a unique lever mechanism Forged lever chain from our own quality forge Maximum precision even when subjected to extreme continuous use o d 3% Imllnnl & Type " Contents Nm lbfft lw a b c S BCK 1 2 12.5 in plastic box 40-200 30-150 463 35 20.0 554 Code 5 Nm 5 lbfft 1.4 1905449 No. 8573-10 DVV-40ZRS 329 X OUR ALL-ROUND SERVICE - QUALIFIED AND CUSTOMISED nm 622 - 629 DAkkS K 19 D 19 232 210 r 268
