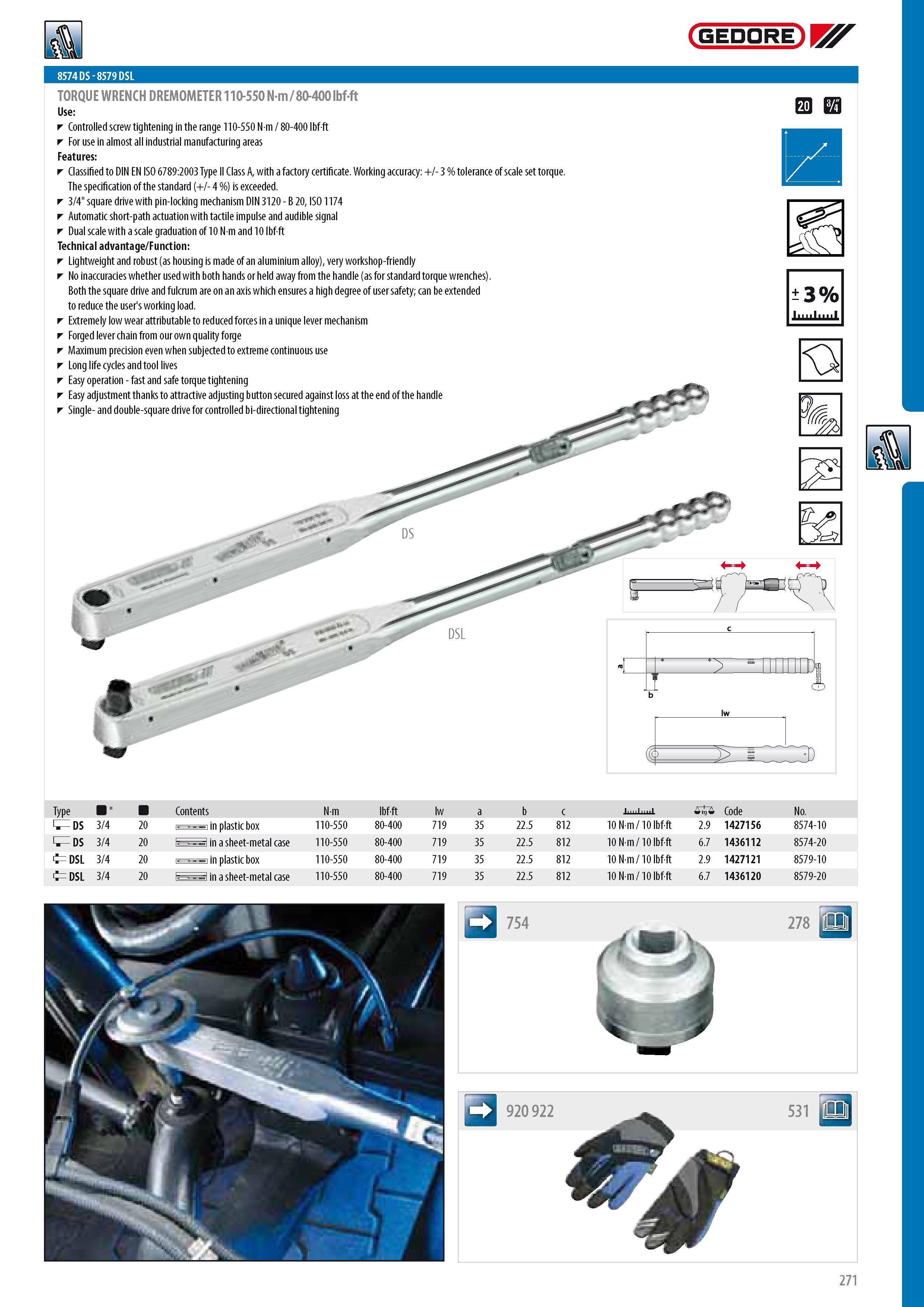

8574 DS - 8579 DSL TORQUE WRENCH DREMOMETER 110-550 N-m 80-400 ibf-ft Controlled screw tightening in the range 110-550 N m 80-400 lbf ft For use in almost all industrial manufacturing areas Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. 3 4" square drive with pin-locking mechanism DIN 3120 - B 20 ISO 1174 Automatic short-path actuation with tactile impulse and audible signal Dual scale with a scale graduation of 10 N m and 10 lbf ft Technical advantage Function Lightweight and robust (as housing is made of an aluminium alloy) very workshop-friendly No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load. Extremely low wear attributable to reduced forces in a unique lever mechanism Forged lever chain from our own quality forge Maximum precision even when subjected to extreme continuous use Long life cycles and tool lives Easy operation - fast and safe torque tightening Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle Single- and double-square drive for controlled bi-directional tightening GEDORE p e ii 3% & Wry Type " Contents Nm lbfft lw a b c 0 Code No. S DS 3 4 20 in plastic box 110-550 80-400 719 35 22.5 812 10 Nm 10 lbfft 2.9 1427156 8574-10 S DS 3 4 20 i in a sheet-metal case 110-550 80-400 719 35 22.5 812 10 Nm 10 lbfft 6.7 1436112 8574-20 DSL 3 4 20 in plastic box 110-550 80-400 719 35 22.5 812 10 Nm 10 lbfft 2.9 1427121 8579-10 DSL 3 4 20 i in a sheet-metal case 110-550 80-400 719 35 22.5 812 10 Nm 10 lbfft 6.7 1436120 8579-20 754 278 920922 531 n 271
