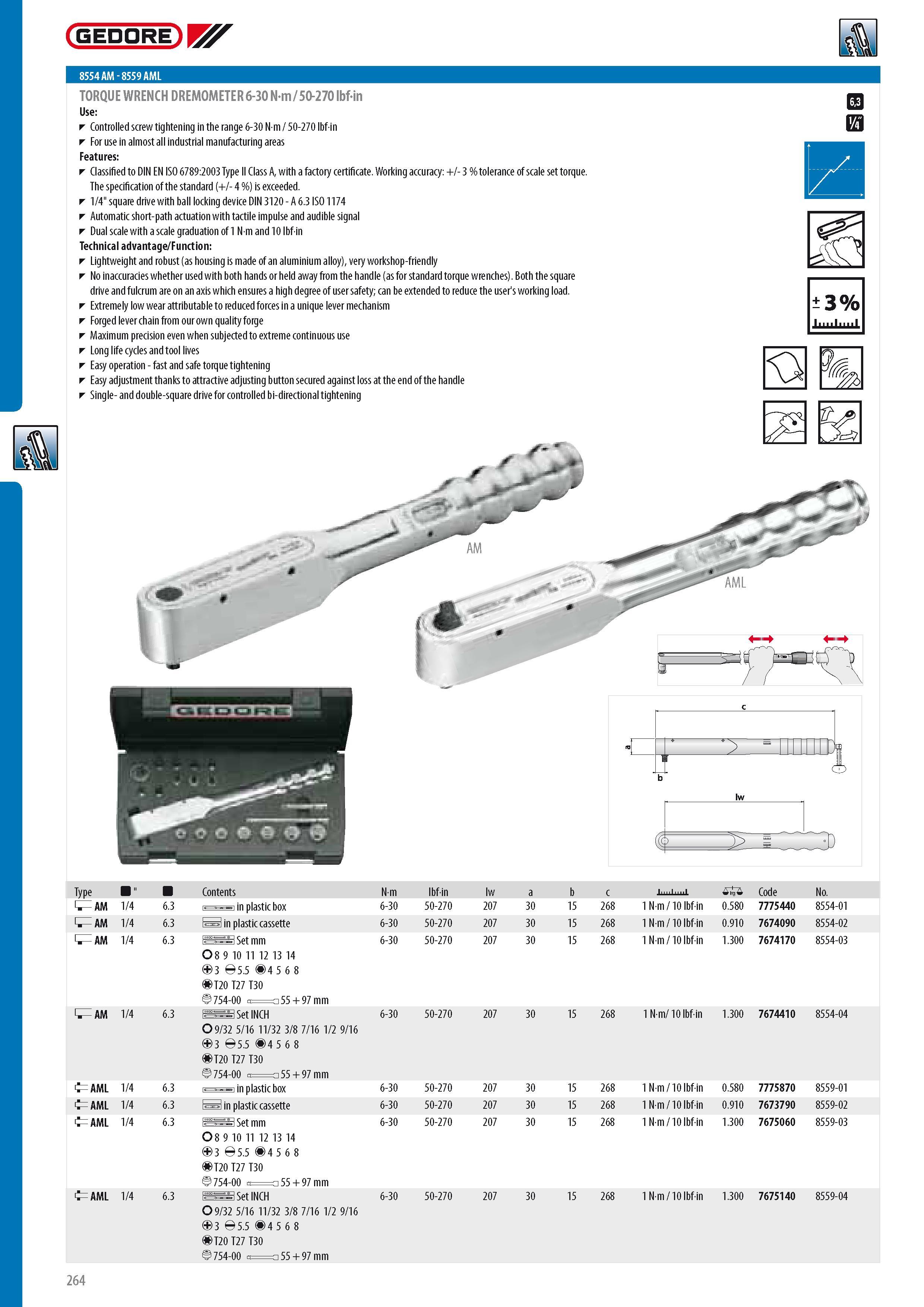

266 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.264

Каталог GEDORE 2014 Слесарный инструмент Стр. 264 0266 ENG Lab2u

GEDORE 8554 AM - 8559 AML TORQUE WRENCH DREMOMETER 6-30 N-m 50-270 ibfin Controlled screw tightening in the range 6-30 N m 50-270 lbfin For use in almost all industrial manufacturing areas Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. 1 4" square drive with ball locking device DIN 3120 - A 6.3 ISO 1174 Automatic short-path actuation with tactile impulse and audible signal Dual scale with a scale graduation of 1 N m and 10 lbfin Technical advantage Function Lightweight and robust (as housing is made of an aluminium alloy) very workshop-friendly No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load. Extremely low wear attributable to reduced forces in a unique lever mechanism Forged lever chain from our own quality forge Maximum precision even when subjected to extreme continuous use Long life cycles and tool lives Easy operation - fast and safe torque tightening Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle Single- and double-square drive for controlled bi-directional tightening 3% Type S AM 1 4 S AM 1 4 S AM 1 4 S AM 1 4 AML 1 4 AML 1 4 AML 1 4 AML 1 4 & 9 unm k 6.3 6.3 Contents in plastic box 3 in plastic cassette Set mm O 8 9 10 11 12 13 14 ; 3 5.5 5 4 5 6 8 T20 T27 T30 754-00 55 + 97 mm Set INCH O 9 32 5 16 11 32 3 8 7 16 1 2 9 16 ; 3 5.5 5 4 5 6 8 T20 T27 T30 754-00 55 + 97 mm in plastic box 3 in plastic cassette Set mm O 8 9 10 11 12 13 14 ; 3 5.5 5 4 5 6 8 T20 T27 T30 754-00 55 + 97 mm Set INCH O9 32 5 16 11 32 3 8 7 16 1 2 9 16 ; 3 5.5 5 4 5 6 8 T20 T27 T30 754-00 55 + 97 mm Nm lbfin lw a b c 0 Code No. 6-30 50-270 207 30 15 268 1 Nm 10 lbfin 0.580 7775440 8554-01 6-30 50-270 207 30 15 268 1 Nm 10 lbfin 0.910 7674090 8554-02 6-30 50-270 207 30 15 268 1 Nm 10 lbfin 1.300 7674170 8554-03 6-30 50-270 207 30 15 268 1 Nm 10 lbfin 1.300 7674410 8554-04 6-30 50-270 207 30 15 268 1 Nm 10 lbfin 0.580 7775870 8559-01 6-30 50-270 207 30 15 268 1 Nm 10 lbfin 0.910 7673790 8559-02 6-30 50-270 207 30 15 268 1 Nm 10 lbfin 1.300 7675060 8559-03 6-30 50-270 207 30 15 268 1 Nm 10 lbfin 1.300 7675140 8559-04 264
