263 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.261

Каталог GEDORE 2014 Слесарный инструмент Стр. 261 0263 ENG Lab2u

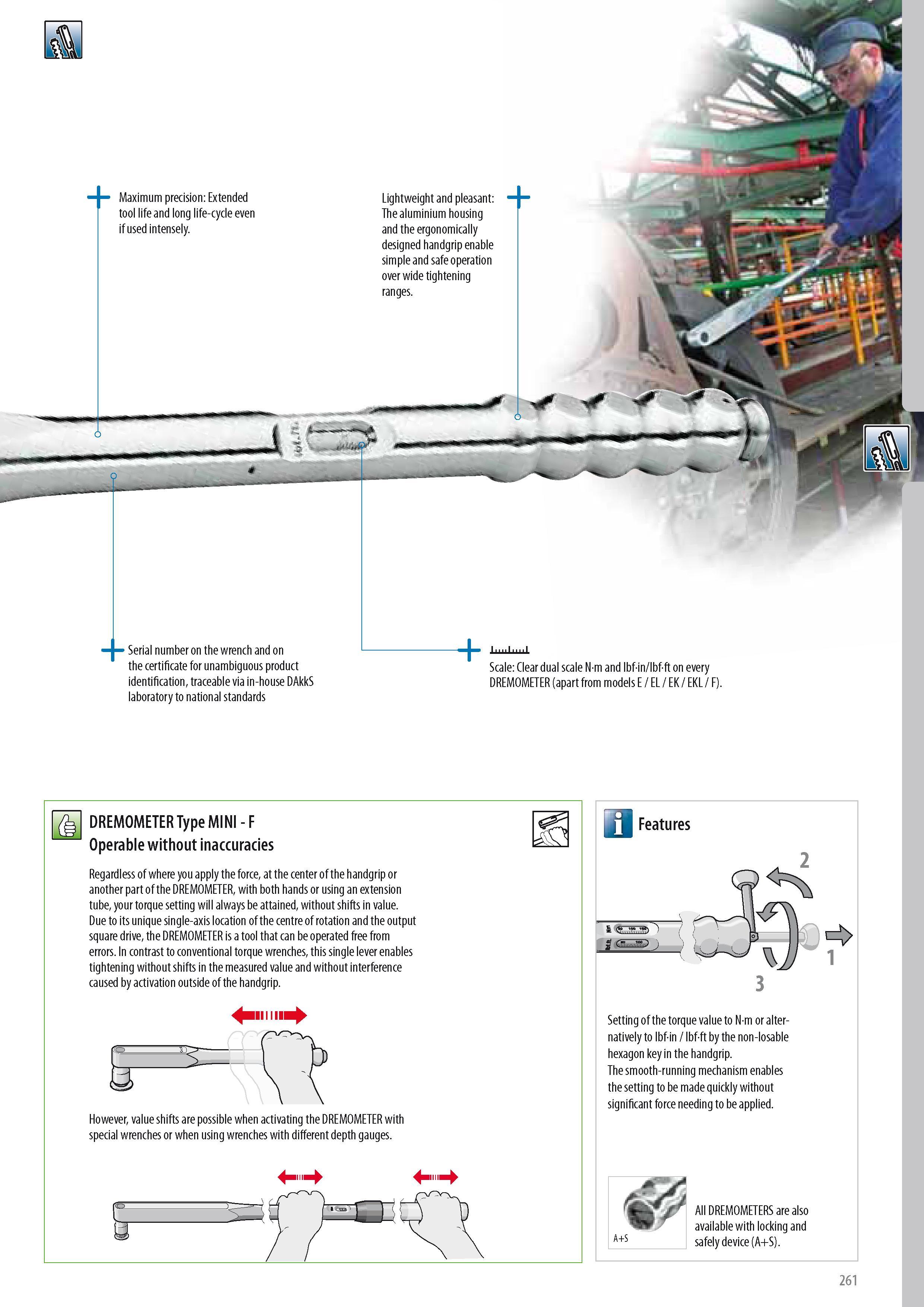

Maximum precision Extended tool life and long life-cycle even if used intensely. ' Serial number on the wrench and on the certificate for unambiguous product identification traceable via in-house DAkkS laboratory to national standards Lightweight and pleasant The aluminium housing and the ergonomically designed handgrip enable simple and safe operation over wide tightening ranges. iiiiiiiiiii Scale Clear dual scale N-m and lbfin lbfft on every DREMOMETER (apart from models E EL EK EKL F). DREMOMETER Type MINI - F Operable without inaccuracies Regardless of where you apply the force at the center of the handgrip or another part of the DREMOMETER with both hands or using an extension tube your torque setting will always be attained without shifts in value. Due to its unique single-axis location of the centre of rotation and the output square drive the DREMOMETER is a tool that can be operated free from errors. In contrast to conventional torque wrenches this single lever enables tightening without shifts in the measured value and without interference caused by activation outside of the handgrip. 11111 However value shifts are possible when activating the DREMOMETER with special wrenches or when using wrenches with different depth gauges. Features 2 CiTfhliUhffajJ j 3 1 Setting of the torque value to N-m or alternatively to lbfin lbfft by the non-losable hexagon key in the handgrip. The smooth-running mechanism enables the setting to be made quickly without significant force needing to be applied. All DREMOMETERS are also available with locking and safely device (A+S). 261
