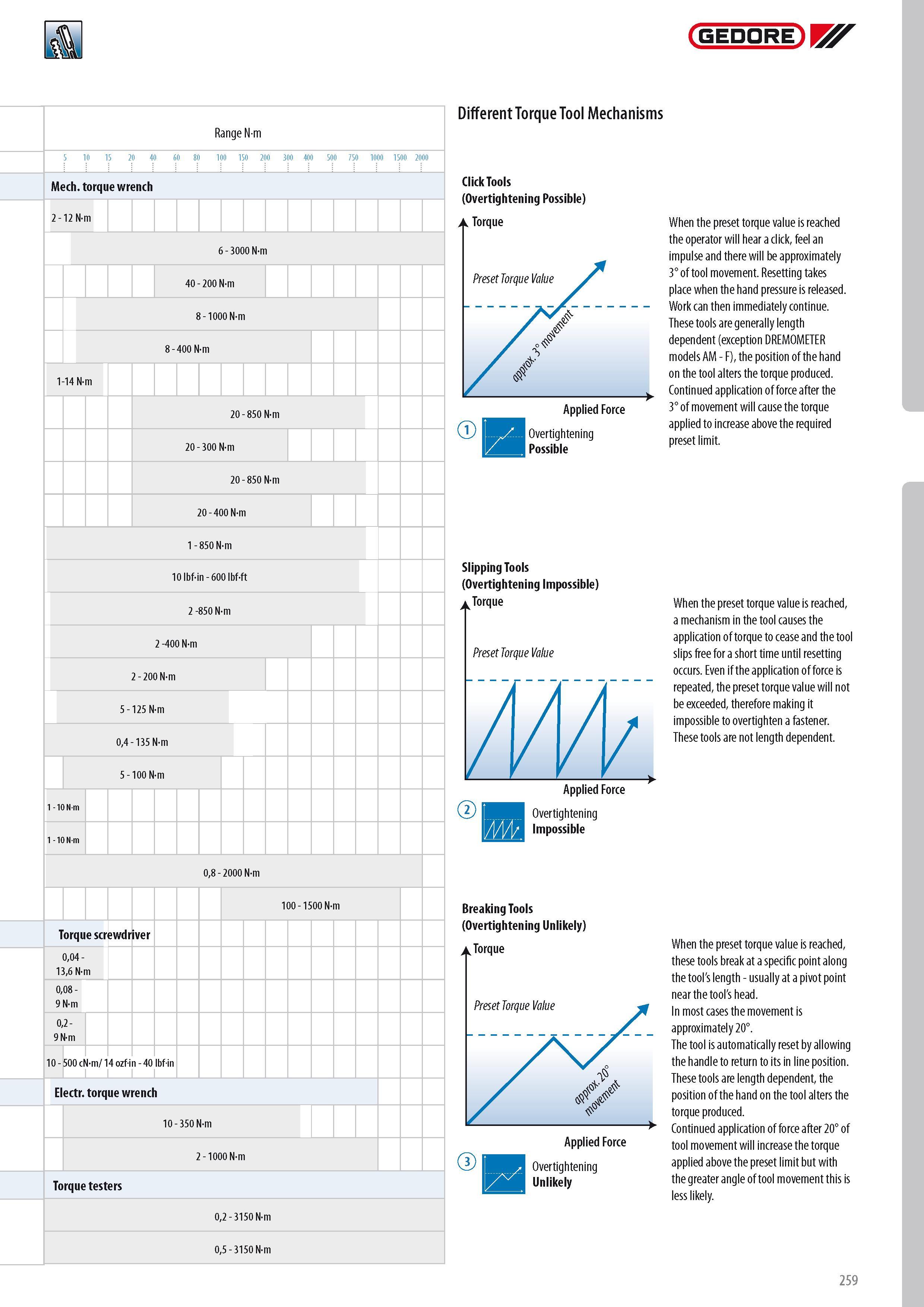

261 Каталог GEDORE 2014 Профессиональный слесарный инструмент и оборудование Стр.259

Каталог GEDORE 2014 Слесарный инструмент Стр. 259 0261 ENG Lab2u

GEDORE Range N-m 5 10 15 20 40 60 80 100 150 200 300 400 500 750 1000 1500 2000 Mech. torque wrench 2 - 12 N-m 6 - 3000 N-m 40 - 200 N-m 8 - 1000 N-m 8 - 400 N-m 1-14 N-m 20 - 850 N-m 20 - 300 N-m 20 - 850 N-m 20 - 400 N-m 1 - 850 N-m 10 Ibfin - 600 Ibfft 2-850 N-m 2-400 N-m 2 - 200 N-m 5 - 125 N-m 04 - 135 N-m 5 - 100 N-m 08 - 2000 N-m Torque scr ewdriver 004 -136 N-m 008 -9 N-m 02 -9 N-m 10 - 500 cN-m 14 ozfin - 40 Ibfin J I 100 - 1500 N-m Electr. torque wrench 10 - 350 N-m 2 - 1000 N-m Torque testers 02 - 3150 N-m 05 - 3150 N-m Different Torque Tool Mechanisms Click Tools (Overtightening Possible) Torque Preset Torque Value I Overtightening Possible Slipping Tools (Overtightening Impossible) Overtightening IBBBB Impossible Breaking Tools (Overtightening Unlikely) Overtightening Unlikely When the preset torque value is reached the operator will hear a click feel an impulse and there will be approximately 3 of tool movement. Resetting takes place when the hand pressure is released. Work can then immediately continue. These tools are generally length dependent (exception DREMOMETER models AM - F) the position of the hand on the tool alters the torque produced. Continued application of force after the 3 of movement will cause the torque applied to increase above the required preset limit. When the preset torque value is reached a mechanism in the tool causes the application of torque to cease and the tool slips free for a short time until resetting occurs. Even if the application of force is repeated the preset torque value will not be exceeded therefore making it impossible to overtighten a fastener. These tools are not length dependent. When the preset torque value is reached these tools break at a specific point along the tool's length - usually at a pivot point near the tool's head. In most cases the movement is approximately 20. The tool is automatically reset by allowing the handle to return to its in line position. These tools are length dependent the position of the hand on the tool alters the torque produced. Continued application of force after 20 of tool movement will increase the torque applied above the preset limit but with the greater angle of tool movement this is less likely. 1 - 10 Nm 1 - 10 Nm 259
