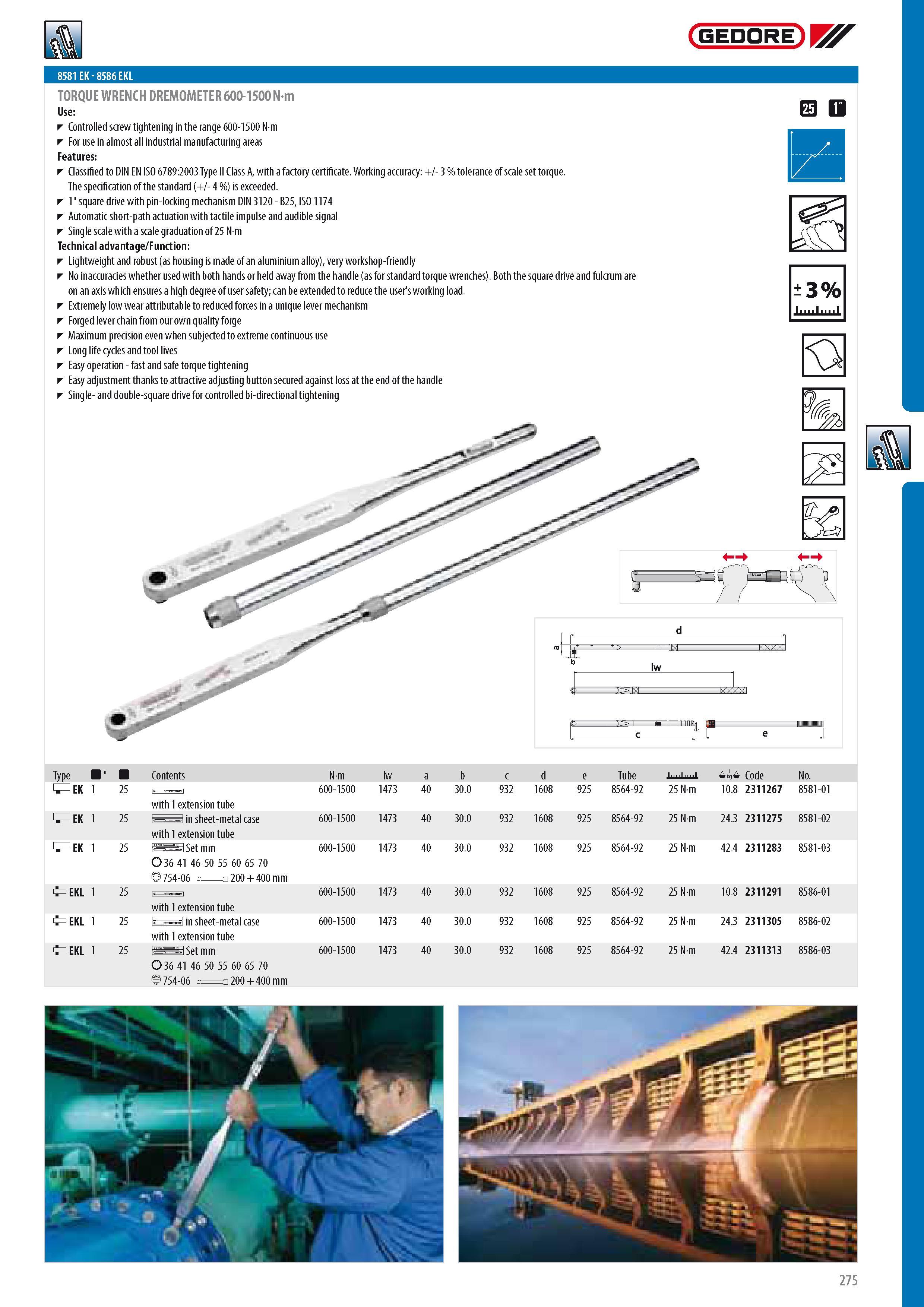

8581 EK - 8586 EKL TORQUE WRENCH DREMOMETER 600-1500 Nm Controlled screw tightening in the range 600-1500 N m For use in almost all industrial manufacturing areas Features Classified to DIN EN ISO 6789:2003 Type II Class A with a factory certificate. Working accuracy + - 3 % tolerance of scale set torque. The specification of the standard (+ - 4 %) is exceeded. 1" square drive with pin-locking mechanism DIN 3120 - B25 ISO 1174 Automatic short-path actuation with tactile impulse and audible signal Single scale with a scale graduation of 25 N m Technical advantage Function Lightweight and robust (as housing is made of an aluminium alloy) very workshop-friendly No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches). Both the square drive and fulcrum are on an axis which ensures a high degree of user safety; can be extended to reduce the user's working load. Extremely low wear attributable to reduced forces in a unique lever mechanism Forged lever chain from our own quality forge Maximum precision even when subjected to extreme continuous use Long life cycles and tool lives Easy operation - fast and safe torque tightening Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle CGEDOREJB r a 3% 11111 & Type S EK 1 S EK 1 S EK 1 EKL 1 EKL 1 EKL 1 " 25 Contents with 1 extension tube 25 25 25 25 25 in sheet-metal case with 1 extension tube Set mm O 36 41 46 50 55 60 65 70 754-06 200 + 400 mm with 1 extension tube i in sheet-metal case with 1 extension tube Set mm O 36 41 46 50 55 60 65 70 754-06 200 + 400 mm Nm lw a b c d e Tube 600-1500 1473 40 30.0 932 1608 925 8564-92 25 Nm 600-1500 1473 40 30.0 932 1608 925 8564-92 25 Nm 600-1500 1473 40 30.0 932 1608 925 8564-92 25 Nm 600-1500 1473 40 30.0 932 1608 925 8564-92 25 Nm 600-1500 1473 40 30.0 932 1608 925 8564-92 25 Nm 600-1500 1473 40 30.0 932 1608 925 8564-92 25 Nm 0 Code No. 10.8 2311267 8581-01 24.3 2311275 8581-02 42.4 2311283 8581-03 275
