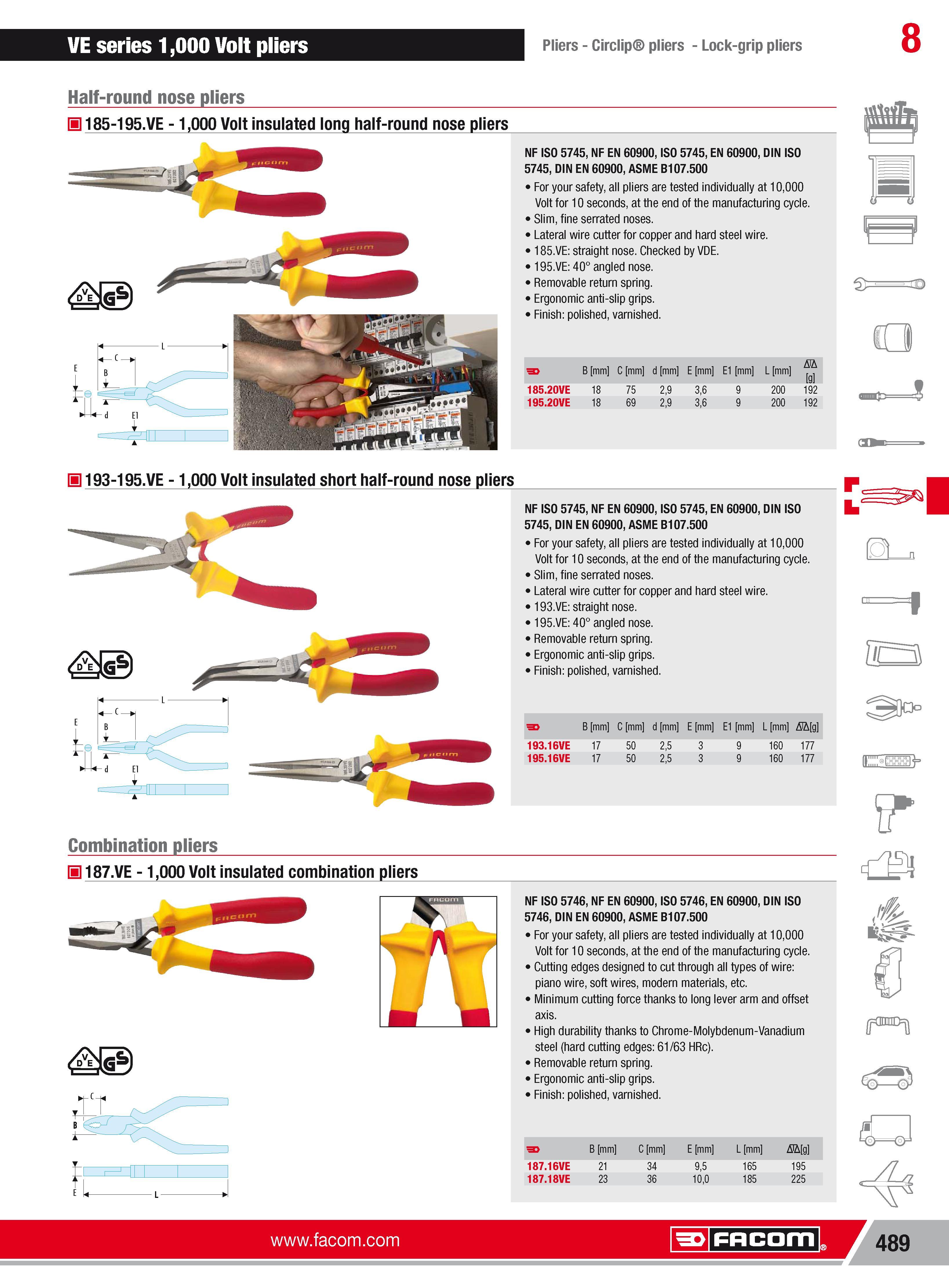

515 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.489

Каталог FACOM 2013 Инструмент Оборудование Стр. 489 0515 ENG Lab2u

VE series 1 Volt pliers Pliers Circlip pliers Lock-grip pliers 8 Half-round nose pliers 185-195.VE 1000 Volt insulated long half-round nose pliers NF ISO 5745 NF EN 60900 ISO 5745 EN 60900 DIN ISO 5745 DIN EN 60900 ASME B107.500 For your safety all pliers are tested individually at 10000 Volt for 10 seconds at the end of the manufacturing cycle. Slim fine serrated noses. Lateral wire cutter for copper and hard steel wire. 185.VE straight nose. Checked by VDE. 195.VE 40 angled nose. Removable return spring. Ergonomic anti-slip grips. Finish polished varnished. B mm C mm d mm E mm E1 mm L mm Nh g 185.20VE 18 75 2 36 9 200 192 195.20VE 18 69 2 36 9 200 192 193-195.VE 1000 Volt insulated short half-round nose pliers NF ISO 5745 NF EN 60900 ISO 5745 EN 60900 DIN ISO 5745 DIN EN 60900 ASME B107.500 For your safety all pliers are tested individually at 10000 Volt for 10 seconds at the end of the manufacturing cycle. Slim fine serrated noses. Lateral wire cutter for copper and hard steel wire. 193.VE straight nose. 195.VE 40 angled nose. Removable return spring. Ergonomic anti-slip grips. Finish polished varnished. B mm C mm d mm E mm E1 mm L mm AiA g 193.16VE 17 50 5 2 3 9 160 177 195.16VE 17 50 LO 2 3 9 160 177 ir Combination pliers 187.VE 1000 Volt insulated combination pliers NF ISO 5746 NF EN 60900 ISO 5746 EN 60900 DIN ISO 5746 DIN EN 60900 ASME B107.500 For your safety all pliers are tested individually at 10000 Volt for 10 seconds at the end of the manufacturing cycle. Cutting edges designed to cut through all types of wire piano wire soft wires modern materials etc. Minimum cutting force thanks to long lever arm and offset axis. High durability thanks to Chrome-Molybdenum-Vanadium steel (hard cutting edges 61 63 HRc). Removable return spring. Ergonomic anti-slip grips. Finish polished varnished. B mm C mm E mm L mm A A g 187.16VE 21 34 95 165 195 187.18VE 23 36 100 185 225 Facom 489 Facom
