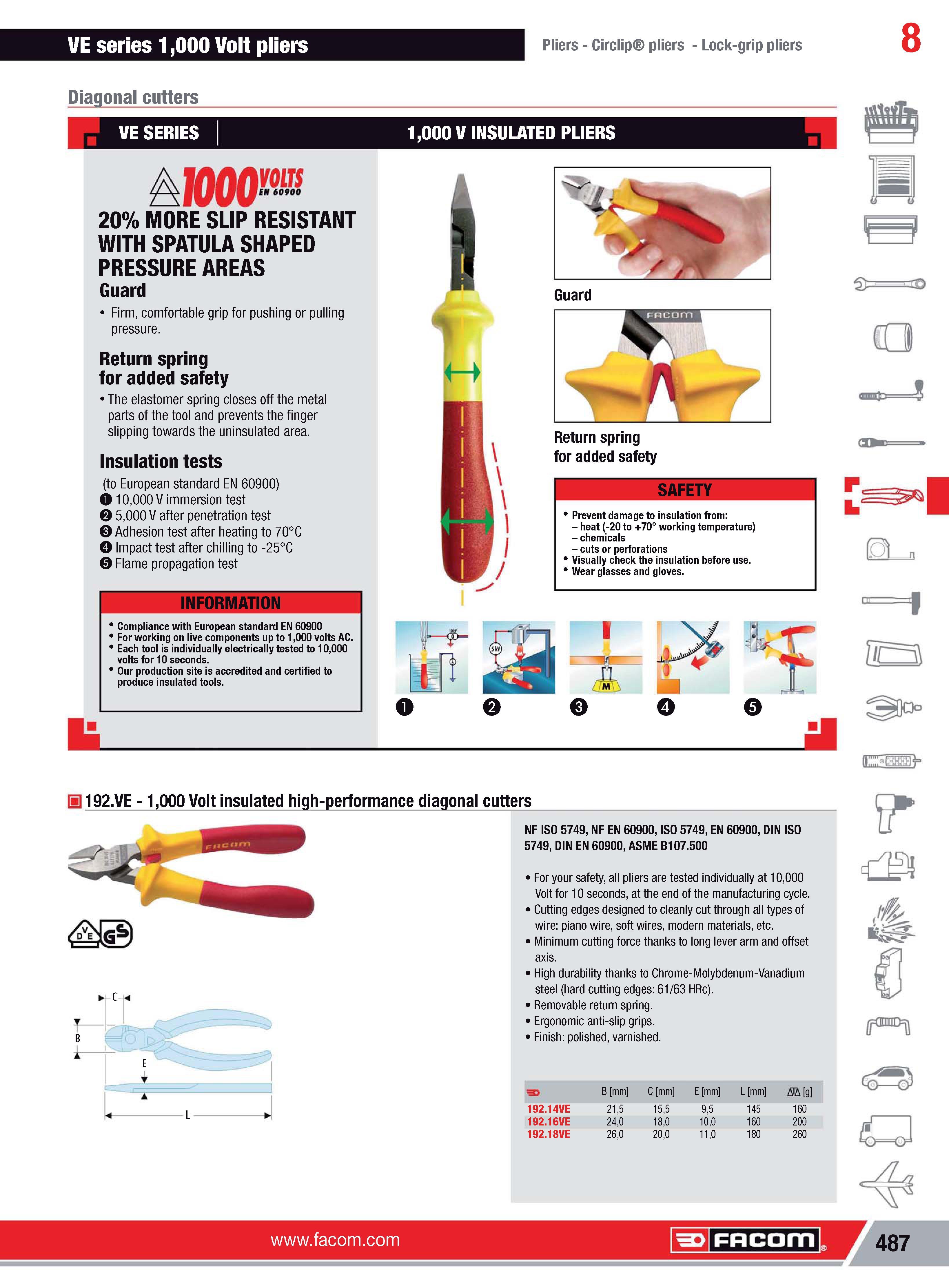

513 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.487

Каталог FACOM 2013 Инструмент Оборудование Стр. 487 0513 ENG Lab2u

VE series 1000 Volt pliers Pliers Circlip pliers Lock-grip pliers 8 Diagonal cutters VE SERIES 1 000 V INSULATED PLIERS ill VOLTS IN 60900 20% MORE SLIP RESISTANT WITH SPATULA SHAPED PRESSURE AREAS Guard Firm comfortable grip for pushing or pulling pressure. Return spring for added safety The elastomer spring closes off the metal parts of the tool and prevents the finger slipping towards the uninsulated area. Insulation tests (to European standard EN 60900) O 10000 V immersion test 0 5 000 V after penetration test 0 Adhesion test after heating to 70C Impact test after chilling to -25C 0 Flame propagation test INFORMATION Compliance with European standard EN 60900 For working on live components up to 1000 volts AC. Each tool is individually electrically tested to 10000 volts for 10 seconds. Our production site is accredited and certified to produce insulated tools. u U Guard a Return spring for added safety SAFETY Prevent damage to insulation from heat (-20 to +70 working temperature) chemicals cuts or perforations Visually check the insulation before use. Wear glasses and gloves. 0 O n f cutters B A E T NF ISO 5749 NF EN 60900 ISO 5749 EN 60900 DIN ISO 5749 DIN EN 60900 ASME B107.500 For your safety all pliers are tested individually at 10000 Volt for 10 seconds at the end of the manufacturing cycle. Cutting edges designed to cleanly cut through all types of wire piano wire soft wires modern materials etc. Minimum cutting force thanks to long lever arm and offset axis. High durability thanks to Chrome-Molybdenum-Vanadium steel (hard cutting edges 61 63 HRc). Removable return spring. Ergonomic anti-slip grips. Finish polished varnished. fdDDf D B mm C mm E mm L mm g 'SLl 192.14VE 215 155 95 145 160 192.16VE 240 180 100 160 200 192.18VE 260 200 110 180 260 7 L 192.VE 1000 Volt insulated high-performance diagonal Facom F TFFTiTI 487 w mM
