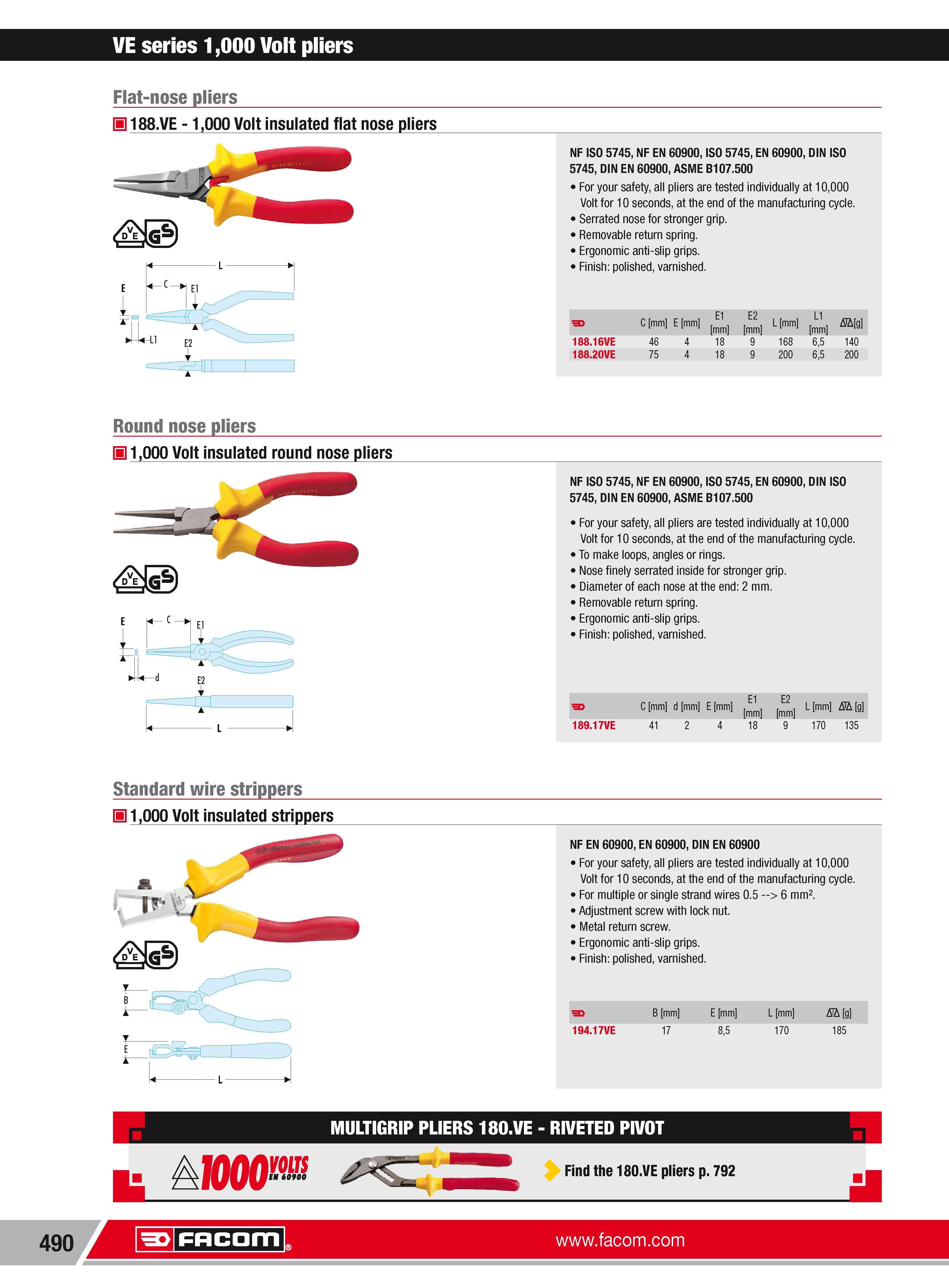

VE series 1 Volt pliers Flat-nose pliers 188.VE 1000 Volt insulated flat nose pliers NF ISO 5745 NF EN 60900 ISO 5745 EN 60900 DIN ISO 5745 DIN EN 60900 ASME B107.500 For your safety all pliers are tested individually at 10000 Volt for 10 seconds at the end of the manufacturing cycle. Serrated nose for stronger grip. Removable return spring. Ergonomic anti-slip grips. Finish polished varnished. C mm E mm E1 mm E2 mm L mm L1 mm M g 188.16VE 46 4 18 9 168 65 140 188.20VE 75 4 18 9 200 65 200 Round nose pliers H 1000 Volt insulated round nose pliers NF ISO 5745 NF EN 60900 ISO 5745 EN 60900 DIN ISO 5745 DIN EN 60900 ASME B107.500 For your safety all pliers are tested individually at 10000 Volt for 10 seconds at the end of the manufacturing cycle. To make loops angles or rings. Nose finely serrated inside for stronger grip. Diameter of each nose at the end 2 mm. Removable return spring. Ergonomic anti-slip grips. Finish polished varnished. 189.17VE C mm d mm E mm 41 2 4 E1 mm 18 E2 mm 9 L mm Nh g 170 135 Standard wire strippers 111000 Volt insulated strippers NF EN 60900 EN 60900 DIN EN 60900 For your safety all pliers are tested individually at 10000 Volt for 10 seconds at the end of the manufacturing cycle. For multiple or single strand wires 0.5 6 mm2. Adjustment screw with lock nut. Metal return screw. Ergonomic anti-slip grips. Finish polished varnished. B mm E mm L mm Nh g 194.17VE 17 85 170 185 MULTIGRIP PLIERS 180.VE RIVETED PIVOT &noo V01TS CN 60900 Find the 180.VE pliers p. 792 490 Facom
