514 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.488

Каталог FACOM 2013 Инструмент Оборудование Стр. 488 0514 ENG Lab2u

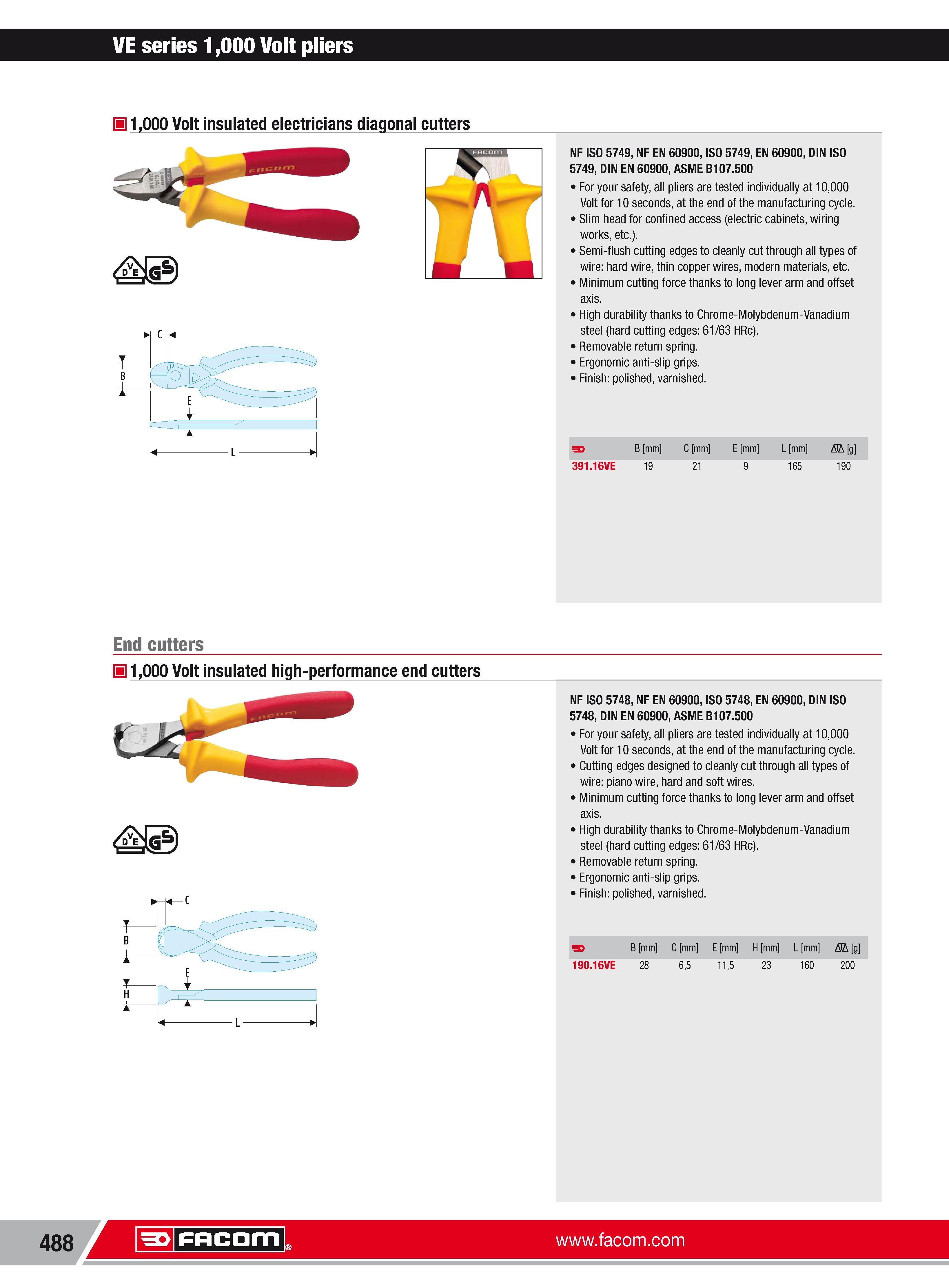

VE series 1 Volt pliers 1000 Volt insulated electricians diagonal cutters NF ISO 5749 NF EN 60900 ISO 5749 EN 60900 DIN ISO 5749 DIN EN 60900 ASME B107.500 For your safety all pliers are tested individually at 10000 Volt for 10 seconds at the end of the manufacturing cycle. Slim head for confined access (electric cabinets wiring works etc.). Semi-flush cutting edges to cleanly cut through all types of wire hard wire thin copper wires modern materials etc. Minimum cutting force thanks to long lever arm and offset axis. High durability thanks to Chrome-Molybdenum-Vanadium steel (hard cutting edges 61 63 HRc). Removable return spring. Ergonomic anti-slip grips. Finish polished varnished. B mm C mm E mm L mm M g 391.16VE 19 21 9 165 190 End cutters H 1000 Volt insulated high-performance end cutters B H L NF ISO 5748 NF EN 60900 ISO 5748 EN 60900 DIN ISO 5748 DIN EN 60900 ASME B107.500 For your safety all pliers are tested individually at 10000 Volt for 10 seconds at the end of the manufacturing cycle. Cutting edges designed to cleanly cut through all types of wire piano wire hard and soft wires. Minimum cutting force thanks to long lever arm and offset axis. High durability thanks to Chrome-Molybdenum-Vanadium steel (hard cutting edges 61 63 HRc). Removable return spring. Ergonomic anti-slip grips. Finish polished varnished. B mm C mm E mm H mm L mm AIA g 190.16VE 28 65 115 23 160 200 488 Facom
