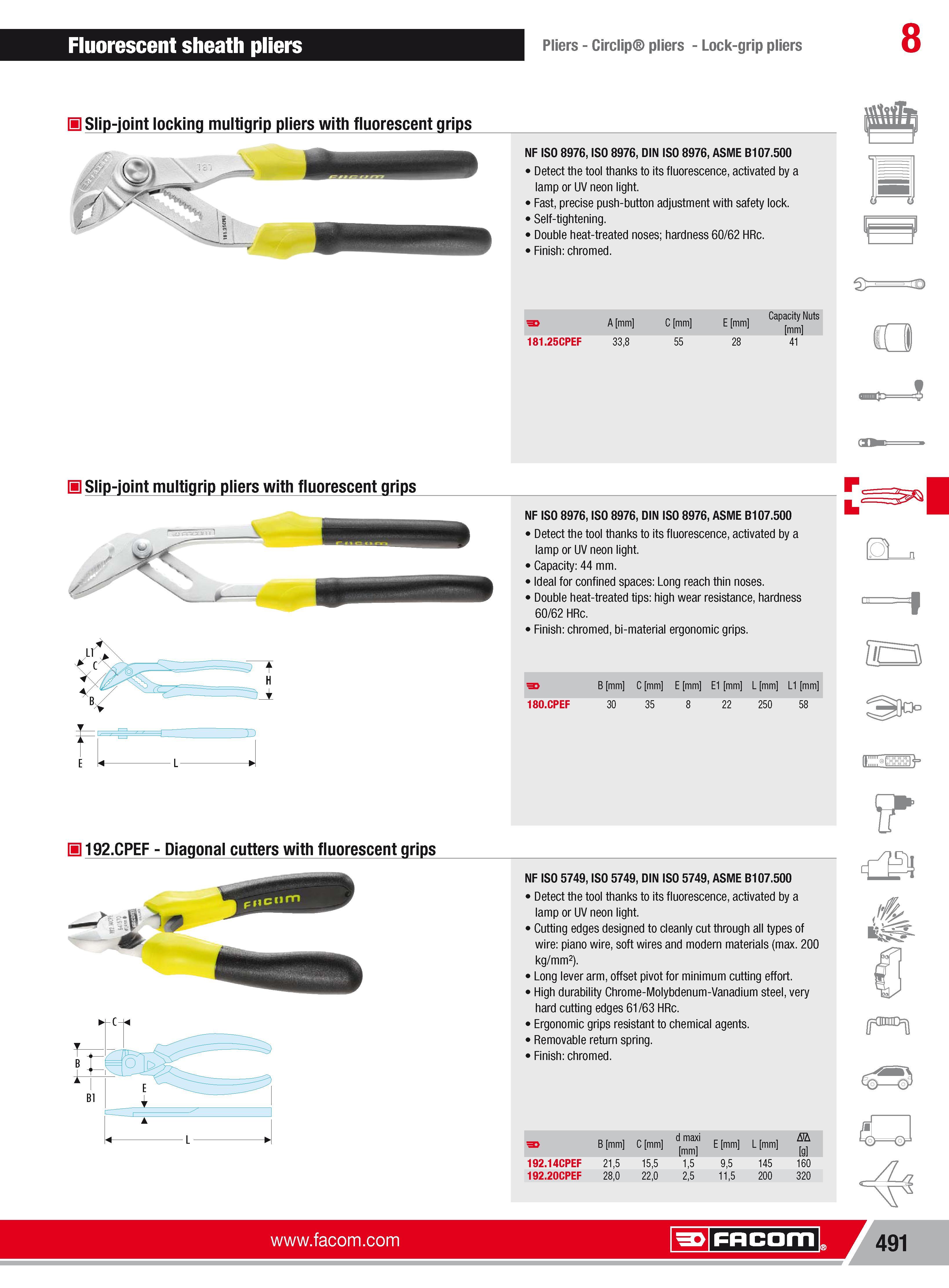

517 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.491

Каталог FACOM 2013 Инструмент Оборудование Стр. 491 0517 ENG Lab2u

Fluorescent sheath pliers Pliers Circlip pliers Lock-grip pliers 8 H Slip-joint locking multigrip pliers with fluorescent grips NF ISO 8976 ISO 8976 DIN ISO 8976 ASME B107.500 Detect the tool thanks to its fluorescence activated by a lamp or UV neon light. Fast precise push-button adjustment with safety lock. Self-tightening. Double heat-treated noses; hardness 60 62 HRc. Finish chromed. 181.25CPEF A mm 338 C mm 55 E mm 28 Capacity Nuts mm 41 H Slip-joint multigrip pliers with fluorescent grips NF ISO 8976 ISO 8976 DIN ISO 8976 ASME B107.500 Detect the tool thanks to its fluorescence activated by a lamp or UV neon light. Capacity 44 mm. Ideal for confined spaces Long reach thin noses. Double heat-treated tips high wear resistance hardness 60 62 HRc. Finish chromed bi-material ergonomic grips. 3 B mm C mm E mm E1 mm L mm L1 mm 180.CPEF 30 35 8 22 250 58 ir 192.CPEF Diagonal cutters with fluorescent grips NF ISO 5749 ISO 5749 DIN ISO 5749 ASME B107.500 Detect the tool thanks to its fluorescence activated by a lamp or UV neon light. Cutting edges designed to cleanly cut through all types of wire piano wire soft wires and modern materials (max. 200 kg mm2). Long lever arm offset pivot for minimum cutting effort. High durability Chrome-Molybdenum-Vanadium steel very hard cutting edges 61 63 HRc. Ergonomic grips resistant to chemical agents. Removable return spring. Finish chromed. B mm C mm d maxi mm E mm L mm Nh g 192.14CPEF 215 155 15 95 145 160 192.20CPEF 280 220 25 115 200 320 Facom 491 Facom
