518 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.492

Каталог FACOM 2013 Инструмент Оборудование Стр. 492 0518 ENG Lab2u

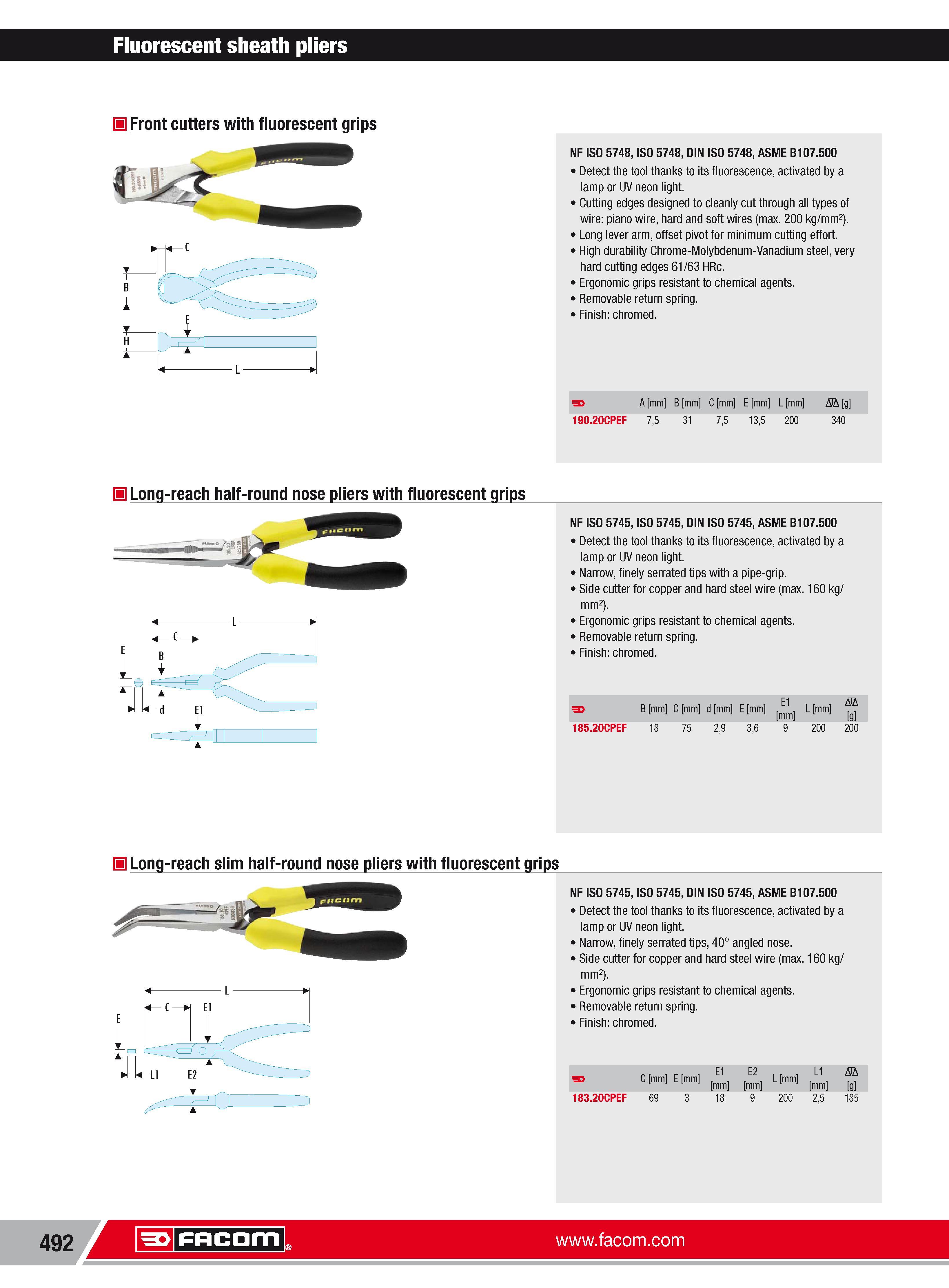

Fluorescent sheath pliers H Front cutters with fluorescent grips L NF ISO 5748 ISO 5748 DIN ISO 5748 ASME B107.500 Detect the tool thanks to its fluorescence activated by a lamp or UV neon light. Cutting edges designed to cleanly cut through all types of wire piano wire hard and soft wires (max. 200 kg mm2). Long lever arm offset pivot for minimum cutting effort. High durability Chrome-Molybdenum-Vanadium steel very hard cutting edges 61 63 HRc. Ergonomic grips resistant to chemical agents. Removable return spring. Finish chromed. A mm B mm C mm E mm L mm Nh g 190.20CPEF 75 31 75 135 200 340 H Long-reach half-round nose pliers with fluorescent grips NF ISO 5745 ISO 5745 DIN ISO 5745 ASME B107.500 Detect the tool thanks to its fluorescence activated by a lamp or UV neon light. Narrow finely serrated tips with a pipe-grip. Side cutter for copper and hard steel wire (max. 160 kg mm2). Ergonomic grips resistant to chemical agents. Removable return spring. Finish chromed. B mm C mm d mm E mm m L mm 185.20CPEF 18 75 29 36 9 200 200 H Long-reach slim half-round nose pliers with fluorescent grips NF ISO 5745 ISO 5745 DIN ISO 5745 ASME B107.500 Detect the tool thanks to its fluorescence activated by a lamp or UV neon light. Narrow finely serrated tips 40 angled nose. Side cutter for copper and hard steel wire (max. 160 kg mm2). Ergonomic grips resistant to chemical agents. Removable return spring. Finish chromed. 183.20CPEF C mm E mm 69 3 E1 mm 18 E2 mm 9 L mm 200 L1 mm 25 Nh g 185 492 Facom
