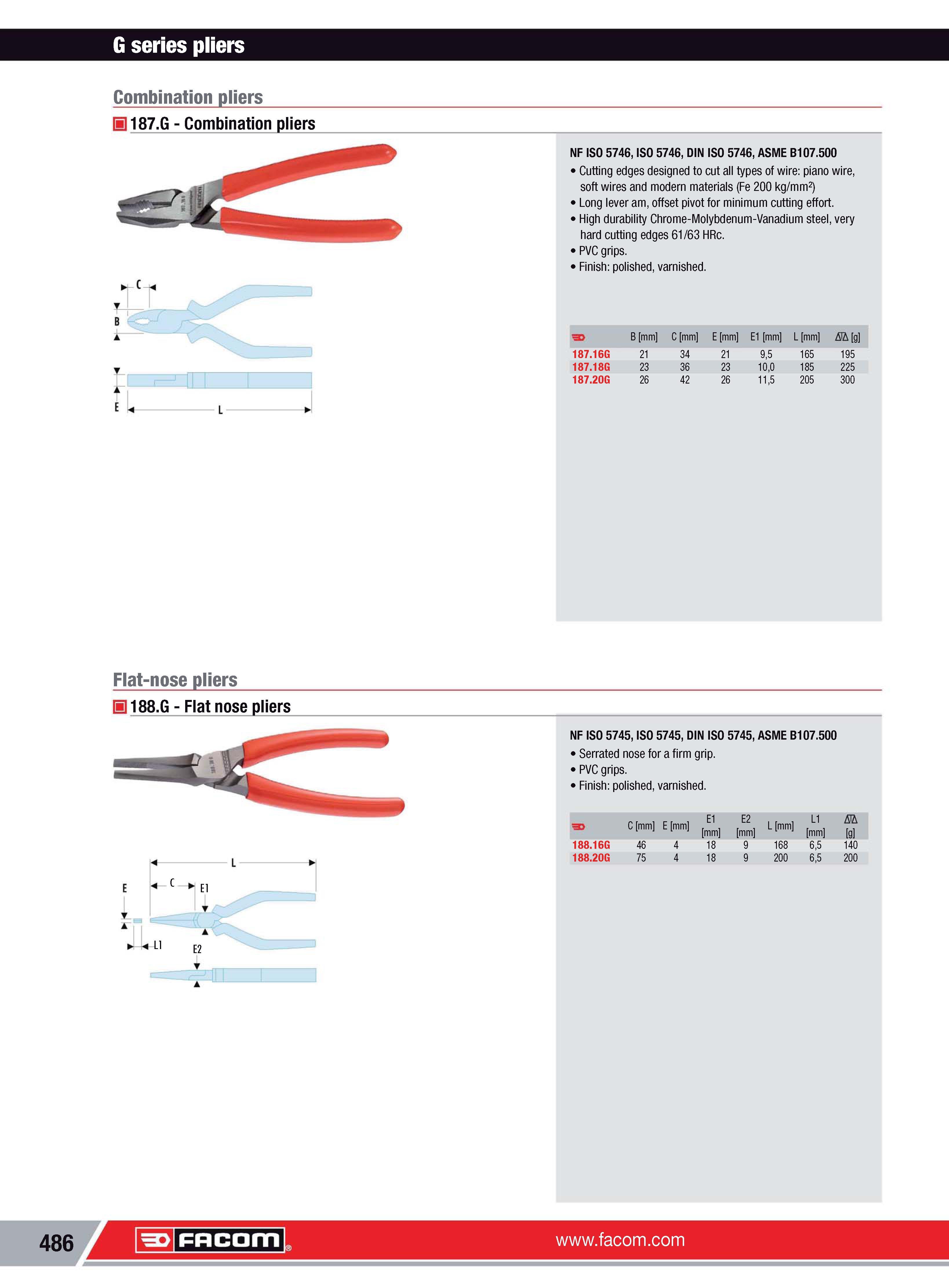

G series pliers Combination pliers 187.G Combination pliers A E U L NF ISO 5746 ISO 5746 DIN ISO 5746 ASME B107.500 Cutting edges designed to cut all types of wire piano wire soft wires and modern materials (Fe 200 kg mm2) Long lever am offset pivot for minimum cutting effort. High durability Chrome-Molybdenum-Vanadium steel very hard cutting edges 61 63 HRc. PVC grips. Finish polished varnished. B mm C mm E mm E1 mm L mm Nh g 187.16G 21 34 21 95 165 195 187.18G 23 36 23 100 185 225 187.20G 26 42 26 115 205 300 Flat-nose pliers 188.G Flat nose pliers -4 T A LI El A E2 ; NF ISO 5745 ISO 5745 DIN ISO 5745 ASME B107.500 Serrated nose for a firm grip. PVC grips. Finish polished varnished. 3D C mm E mm E1 mm E2 mm L mm L1 mm Nh g 188.16G 46 4 18 9 168 65 140 188.20G 75 4 18 9 200 65 200 486 33 P Facom
