510 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.484

Каталог FACOM 2013 Инструмент Оборудование Стр. 484 0510 ENG Lab2u

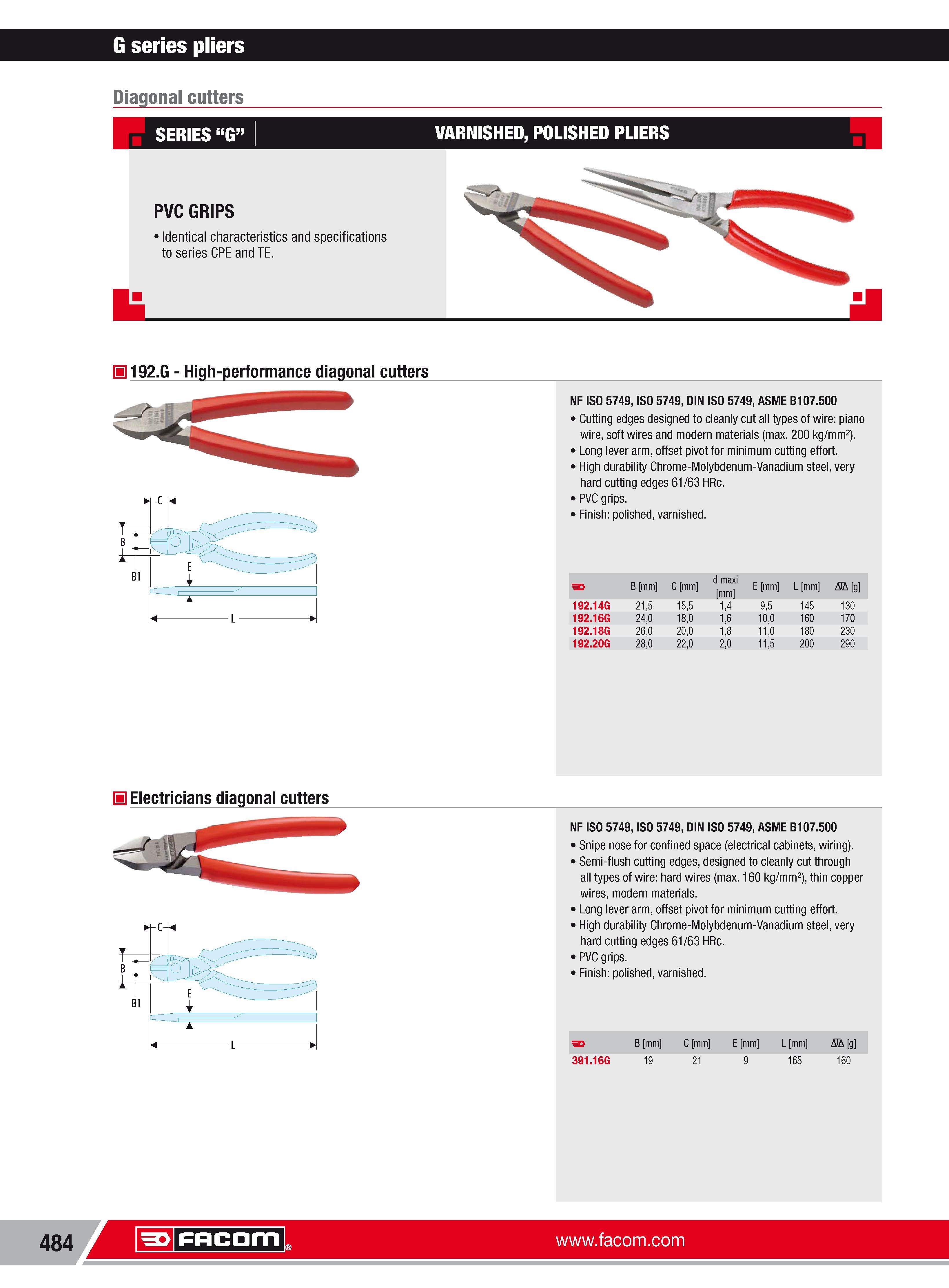

G series pliers Diagonal cutters SERIES G VARNISHED POLISHED PLIERS PVC GRIPS Identical characteristics and specifications to series CPE and TE. 192.G High-performance diagonal cutters NF ISO 5749 ISO 5749 DIN ISO 5749 ASME B107.500 Cutting edges designed to cleanly cut all types of wire piano wire soft wires and modern materials (max. 200 kg mm2). Long lever arm offset pivot for minimum cutting effort. High durability Chrome-Molybdenum-Vanadium steel very hard cutting edges 61 63 HRc. PVC grips. Finish polished varnished. H Electricians diagonal cutters 484 NF ISO 5749 ISO 5749 DIN ISO 5749 ASME B107.500 Snipe nose for confined space (electrical cabinets wiring). Semi-flush cutting edges designed to cleanly cut through all types of wire hard wires (max. 160 kg mm2) thin copper wires modern materials. Long lever arm offset pivot for minimum cutting effort. High durability Chrome-Molybdenum-Vanadium steel very hard cutting edges 61 63 HRc. PVC grips. Finish polished varnished. 391.16G B mm 19 C mm 21 E mm 9 L mm 165 Nh g 160 Facom
