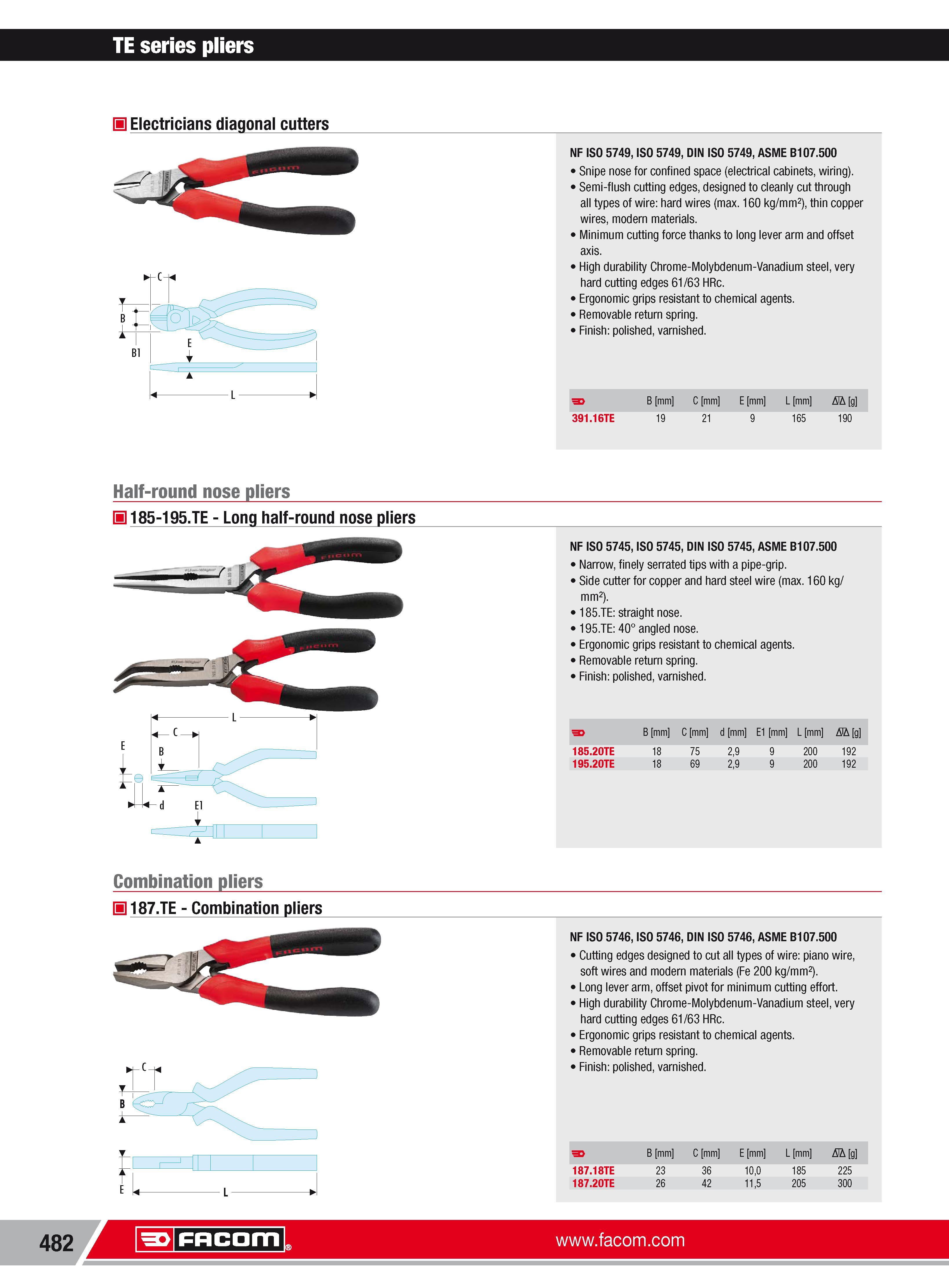

508 Каталог FACOM 2013 Профессиональный ручной инструмент и оборудование Стр.482

Каталог FACOM 2013 Инструмент Оборудование Стр. 482 0508 ENG Lab2u

TE series pliers H Electricians diagonal cutters NF ISO 5749 ISO 5749 DIN ISO 5749 ASME B107.500 Snipe nose for confined space (electrical cabinets wiring). Semi-flush cutting edges designed to cleanly cut through all types of wire hard wires (max. 160 kg mm2) thin copper wires modern materials. Minimum cutting force thanks to long lever arm and offset axis. High durability Chrome-Molybdenum-Vanadium steel very hard cutting edges 61 63 HRc. Ergonomic grips resistant to chemical agents. Removable return spring. Finish polished varnished. 391.16TE B mm 19 C mm 21 E mm 9 L mm 165 Nh g 190 Half-round nose pliers 185-195.TE Long half-round nose pliers NF ISO 5745 ISO 5745 DIN ISO 5745 ASME B107.500 Narrow finely serrated tips with a pipe-grip. Side cutter for copper and hard steel wire (max. 160 kg mm2). 185.TE straight nose. 195.TE 40 angled nose. Ergonomic grips resistant to chemical agents. Removable return spring. Finish polished varnished. B mm C mm d mm E1 mm L mm Nh g 185.20TE 18 75 29 9 200 192 195.20TE 18 69 29 9 200 192 Combination pliers 187.TE Combination pliers 482 NF ISO 5746 ISO 5746 DIN ISO 5746 ASME B107.500 Cutting edges designed to cut all types of wire piano wire soft wires and modern materials (Fe 200 kg mm2). Long lever arm offset pivot for minimum cutting effort. High durability Chrome-Molybdenum-Vanadium steel very hard cutting edges 61 63 HRc. Ergonomic grips resistant to chemical agents. Removable return spring. Finish polished varnished. B mm C mm E mm L mm Nh g 187.18TE 23 36 100 185 225 187.20TE 26 42 115 205 300 Facom
