758 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.761

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 761 0758 ENG Lab2u

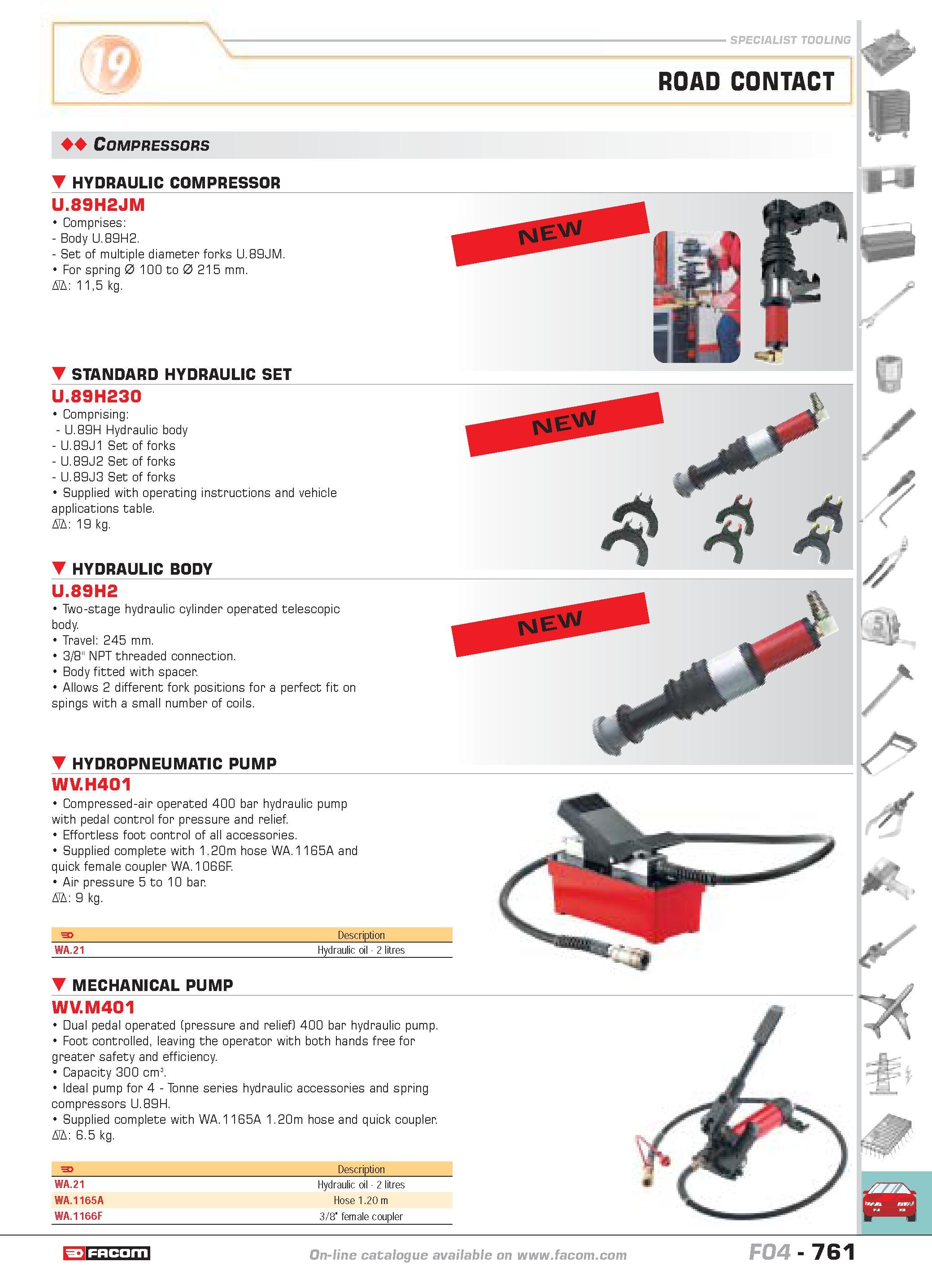

SPECIALIST TOOLING Compressors HYDRAULIC COMPRESSOR U.89H2JM Comprises Body U.89H2. Set of multiple diameter forks U.89JM. For spring 0 100 to 0 215 mm. D 115 kg. STANDARD HYDRAULIC SET U.89H230 Comprising U.89H Hydraulic body U.89J1 Set of forks U.89J2 Set of forks U.89J3 Set of forks Supplied with operating instructions and vehicle applications table. D 19 kg. HYDRAULIC BODY U.89H2 Two-stage hydraulic cylinder operated telescopic body Travel 245 mm. 3/8" NPT threaded connection. Body fitted with spacer. Allows 2 different fork positions for a perfect fit on spings with a small number of coils. HYDROPNEUMATIC PUMP WV.H401 Compressed-air operated 400 bar hydraulic pump with pedal control for pressure and relief. Effortless foot control of all accessories. Supplied complete with 1.20m hose WA.1165A and quick female coupler WA.1066F. Air pressure 5 to 10 bar D 9 kg. F Description WA.21 Hydraulic oil 2 litres MECHANICAL PUMP WV.M401 Dual pedal operated (pressure and relief) 400 bar hydraulic pump. Foot controlled leaving the operator with both hands free for greater safety and efficiency. Capacity 300 cm3. Ideal pump for 4 Tonne series hydraulic accessories and spring compressors U.89H. Supplied complete with WA.1165A 1.20m hose and quick coupler. D 6.5 kg. F Description WA.21 Hydraulic oil 2 litres WA.1165A Hose 1.20 m WA.1166F 3/8" female coupler EHEUHHTi catalogue catalogue FACOM F05 761
