761 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.764

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 764 0761 ENG Lab2u

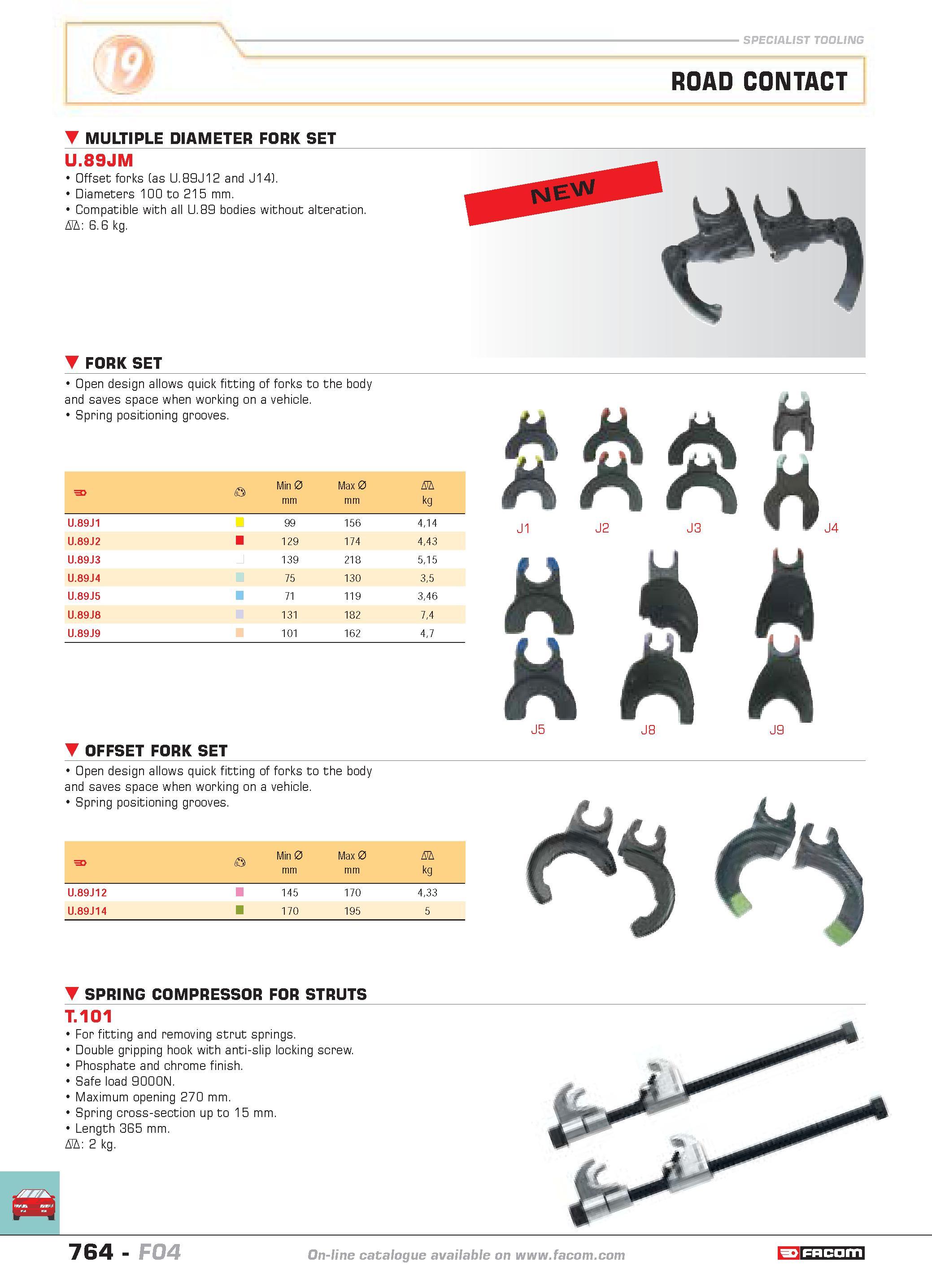

SPECIALIST TOOLING ROAD CONTACT MULTIPLE DIAMETER FORK SET U.89JM Offset forks (as U.89J12 and J14). Diameters 100 to 215 mm. Compatible with all U.89 bodies without alteration. D 6.6 kg. c ) FORK SET Open design allows quick fitting of forks to the body and saves space when working on a vehicle. Spring positioning grooves. F j Min 0 mm Max 0 mm D kg U.89J1 99 156 414 U.89J2 129 174 443 U.89J3 139 218 515 U.89J4 75 130 35 U.89J5 71 119 346 U.89J8 131 182 74 U.89J9 101 162 47 A ft A J1 J2 J3 St J4 OFFSET FORK SET Open design allows quick fitting of forks to the body and saves space when working on a vehicle. Spring positioning grooves. F j Min 0 mm Max 0 mm D kg U.89J12 145 170 433 U.89J14 170 195 5 SPRING COMPRESSOR FOR STRUTS T.101 For fitting and removing strut springs. Double gripping hook with anti-slip locking screw. Phosphate and chrome finish. Safe load 9000N. Maximum opening 270 mm. Spring cross-section up to 15 mm. Length 365 mm. D 2 kg. 764 F04 catalogue FACOM
