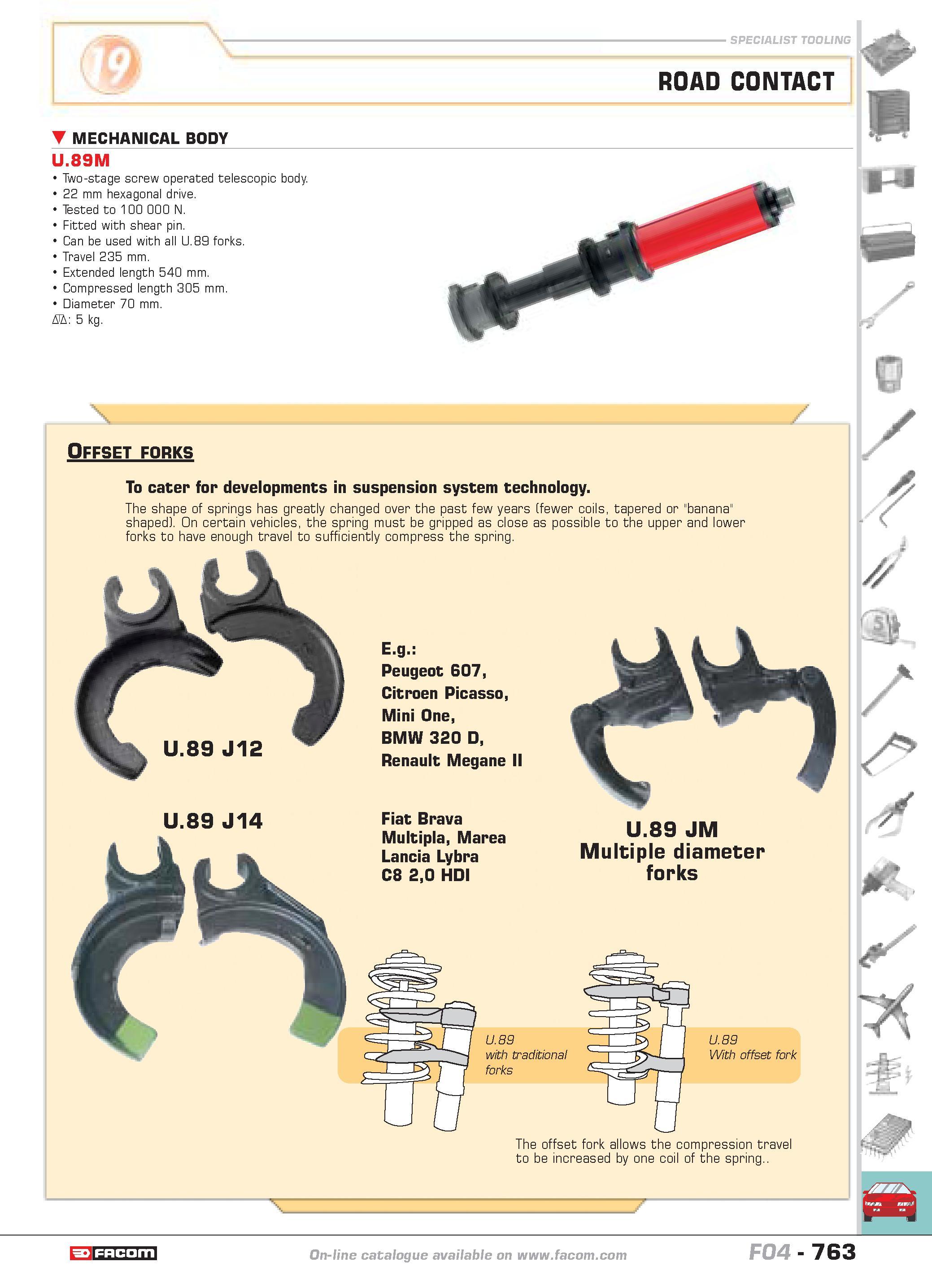

SPECIALIST TOOLING 1 MECHANICAL BODY ROAD CONTACT v- H U.89M Two-stage screw operated telescopic body 22 mm hexagonal drive. Tested to 100 000 N. Fitted with shear pin. Can be used with all U.89 forks. Travel 235 mm. Extended length 540 mm. Compressed length 305 mm. Diameter 70 mm. D 5 kg. Offset forks To cater for developments in suspension system technology. The shape of springs has greatly changed over the past few years (fewer coils tapered or "banana" shaped). On certain vehicles the spring must be gripped as close as possible to the upper and lower forks to have enough travel to sufficiently compress the spring. U.89 J14 E.g. Peugeot 607 Citroen Picasso Mini One BMW 320 D Renault Megane II Fiat Brava Multipla Marea Lancia Lybra C8 20 HDI U.89 JM Multiple diameter forks U.89 with traditional forks y U.89 With offset fork The offset fork allows the compression travel to be increased by one coil of the spring.. i 1 r 'X catalogue catalogue FACOM F05 763
