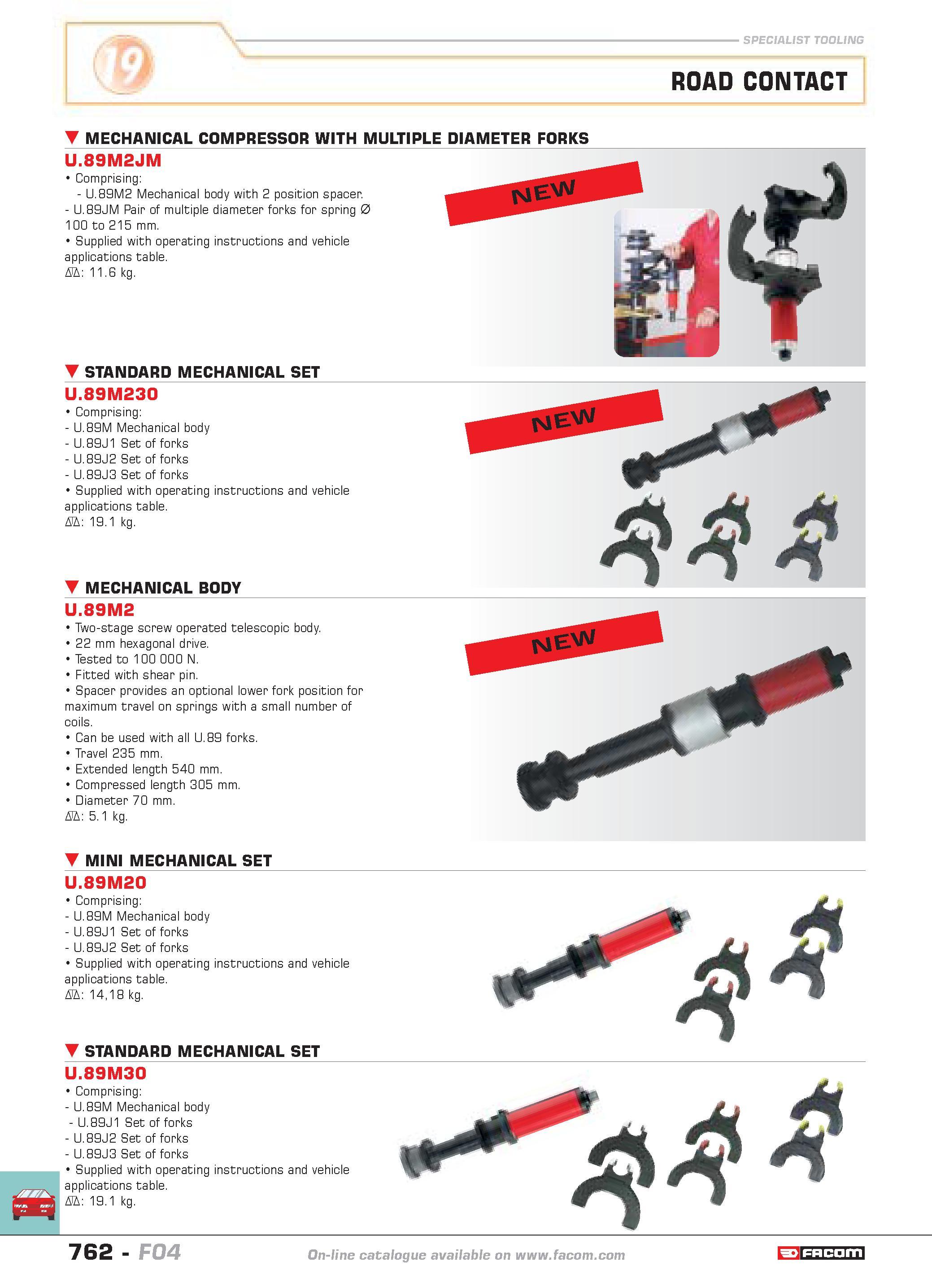

specialist tooling ROAD CONTACT mechanical compressor with multiple diameter forks U.89M2JM Comprising U.89M2 Mechanical body with 2 position spacer. U.89JM Pair of multiple diameter forks for spring 0 100 to 215 mm. Supplied with operating instructions and vehicle applications table. D 11.6 kg. STANDARD MECHANICAL SET U.89M230 Comprising U.89M Mechanical body U.89J1 Set of forks U.89J2 Set of forks U.89J3 Set of forks Supplied with operating instructions and vehicle applications table. D 19.1 kg. mechanical body U.89M2 Two-stage screw operated telescopic body. 22 mm hexagonal drive. Tested to 100 000 N. Fitted with shear pin. Spacer provides an optional lower fork position for maximum travel on springs with a small number of coils. Can be used with all U.89 forks. Travel 235 mm. Extended length 540 mm. Compressed length 305 mm. Diameter 70 mm. D 5.1 kg. MINI MECHANICAL SET U.89M20 Comprising U.89M Mechanical body U.89J1 Set of forks U.89J2 Set of forks Supplied with operating instructions and vehicle applications table. D 1418 kg. STANDARD MECHANICAL SET U.89M30 Comprising U.89M Mechanical body U.89J1 Set of forks U.89J2 Set of forks U.89J3 Set of forks Supplied with operating instructions and vehicle applications table. D 19.1 kg. 762 F04 catalogue FACOM l d M 1111
