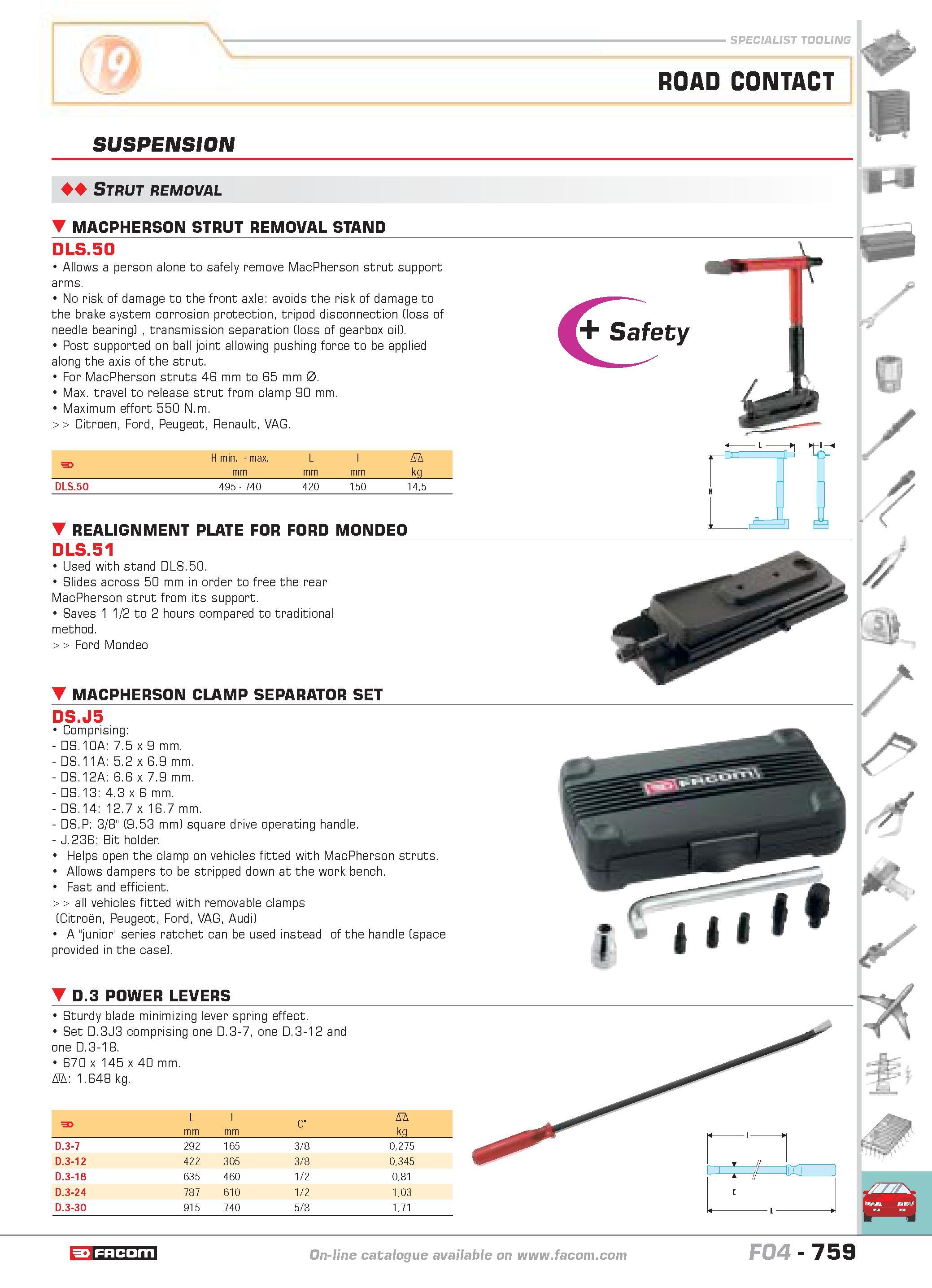

ROAD CONTACT SUSPENSION Strut removal macpherson strut removal stand DLS.50 Allows a person alone to safely remove MacPherson strut support arms. No risk of damage to the front axle avoids the risk of damage to the brake system corrosion protection tripod disconnection (loss of needle bearing) transmission separation (loss of gearbox oil). Post supported on ball joint allowing pushing force to be applied along the axis of the strut. For MacPherson struts 46 mm to 65 mm 0. Max. travel to release strut from clamp 90 mm. Maximum effort 550 N.m. Citroen Ford Peugeot Renault VAG. Safety H min. max. mm L mm I D J L 145 realignment plate for ford mondeo DLS.51 Used with stand DLS.50. Slides across 50 mm in order to free the rear MacPherson strut from its support. Saves 1 1 2 to 2 hours compared to traditional method. Ford Mondeo macpherson clamp separator set DS.J5 Comprising DS.10A 7.5 x 9 mm. DS.11A 5.2 x 6.9 mm. DS.12A 6.6 x 7.9 mm. DS.13 4.3 x 6 mm. DS.14 12.7 x 16.7 mm. DS.P 3/8" (9.53 mm) square drive operating handle. J.236 Bit holder. Helps open the clamp on vehicles fitted with MacPherson struts. Allows dampers to be stripped down at the work bench. Fast and efficient. all vehicles fitted with removable clamps (Citroen Peugeot Ford VAG Audi) A "junior" series ratchet can be used instead of the handle (space provided in the case). D.3 POWER LEVERS Sturdy blade minimizing lever spring effect. Set D.3J3 comprising one D.3-7 one D.3-12 and one D.3-18. 670 x 145 x 40 mm. D 1.648 kg. F L mm I mm C" D kg D.3-7 292 165 3 8 0275 D.3-12 422 305 3 8 0345 D.3-18 635 460 1 2 081 D.3-24 787 610 1 2 103 D.3-30 915 740 5 8 171 E3EHHHiI catalogue catalogue FACOM F05 759 F mm 495 740 420 B ltX t
