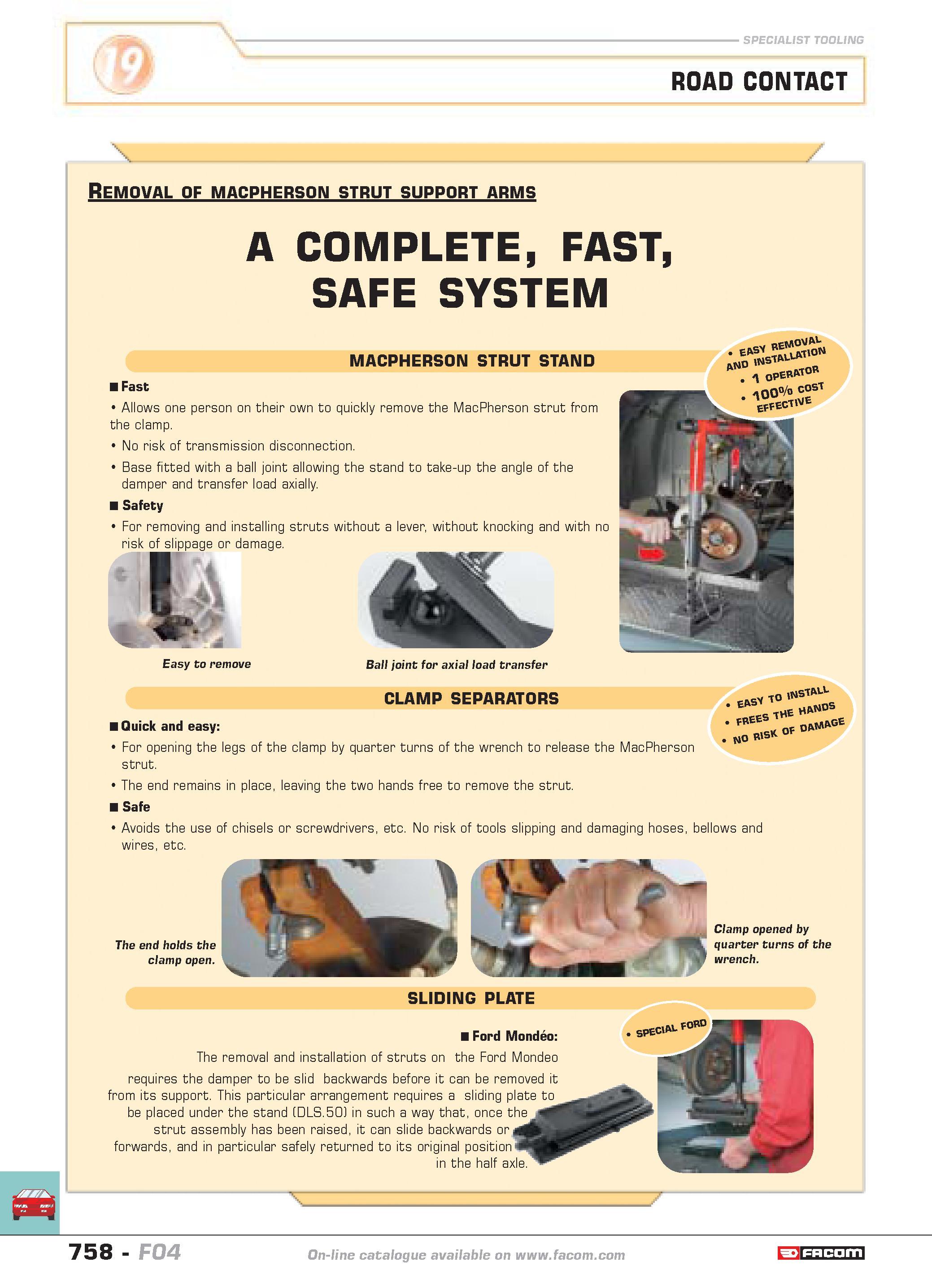

ROAD CONTACT Removal of macpherson strut support arms A COMPLETE FAST SAFE SYSTEM MACPHERSON STRUT STAND I Fast Allows one person on their own to quickly remove the MacPherson strut from the clamp. No risk of transmission disconnection. Base fitted with a ball joint allowing the stand to take-up the angle of the damper and transfer load axially. Safety For removing and installing struts without a lever without knocking and with no risk of slippage or damage. Easy to remove Ball joint for axial load transfer CLAMP SEPARATORS I Quick and easy For opening the legs of the clamp by quarter turns of the wrench to release the MacPherson strut. The end remains in place leaving the two hands free to remove the strut. I Safe Avoids the use of chisels or screwdrivers etc. No risk of tools slipping and damaging hoses bellows and wires etc. The end holds the clamp open. Clamp opened by quarter turns of the wrench. SLIDING PLATE Ford Mondeo The removal and installation of struts on the Ford Mondeo requires the damper to be slid backwards before it can be removed it from its support. This particular arrangement requires a sliding plate to be placed under the stand (DLS.50) in such a way that once the strut assembly has been raised it can slide backwards or forwards and in particular safely returned to its original position in the half axle. 7" 758 F04 catalogue FACOM
