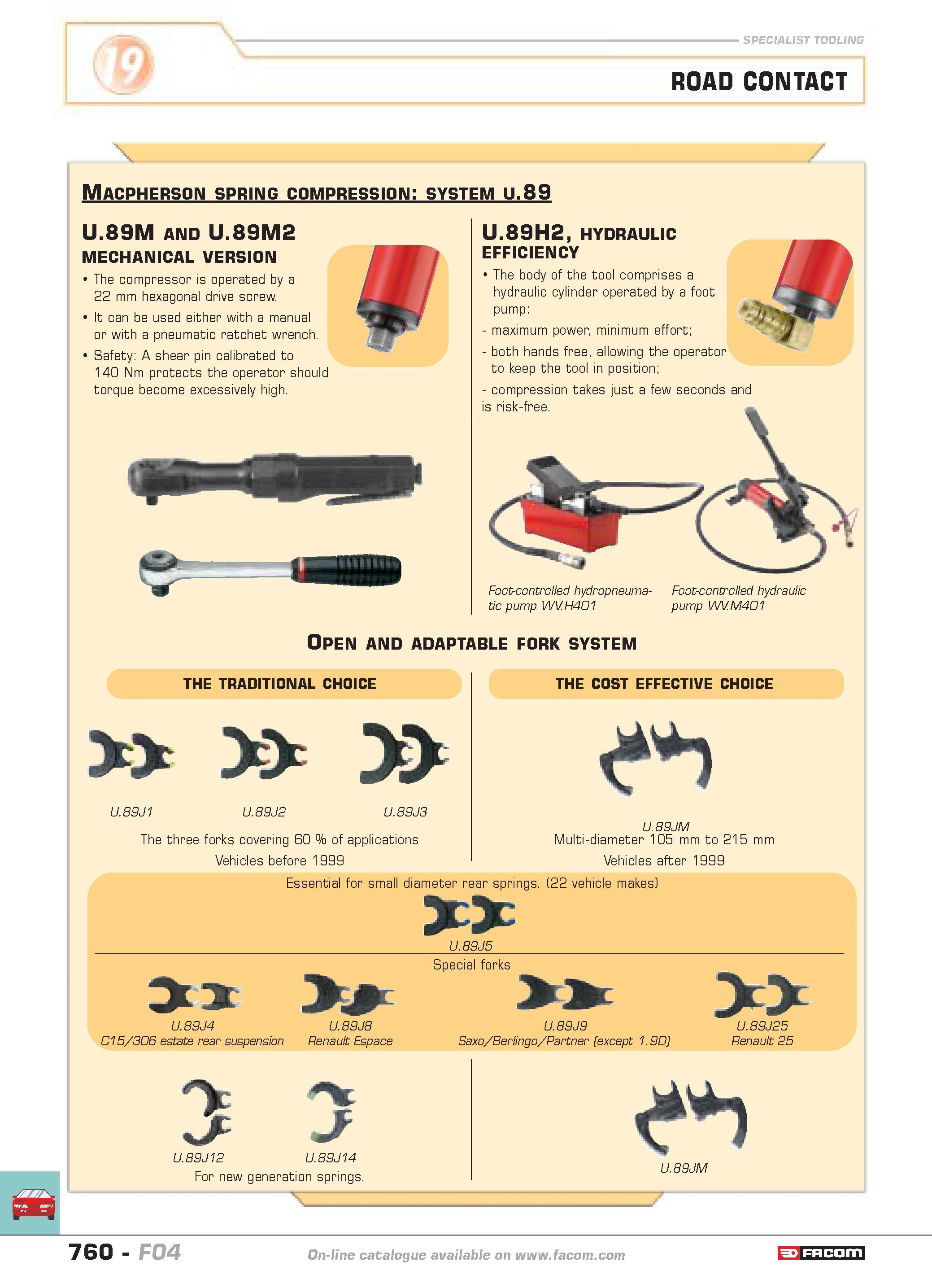

ROAD CONTACT Macpherson spring compression system u.89 U.89M and U.89M2 MECHANICAL VERSION The compressor is operated by a 22 mm hexagonal drive screw. It can be used either with a manual or with a pneumatic ratchet wrench. Safety A shear pin calibrated to 140 Nm protects the operator should torque become excessively high. U.89H2 HYDRAULIC EFFICIENCY The body of the tool comprises a hydraulic cylinder operated by a foot pump maximum power minimum effort; both hands free allowing the operator to keep the tool in position; compression takes just a few seconds and is risk-free. Foot-controlled hydropneuma- Foot-controlled hydraulic tic pump WV.H401 pump WV.M401 Open and adaptable fork system THE TRADITIONAL CHOICE U.89J1 U.89J2 U.89J3 The three forks covering 60 of applications Vehicles before 1999 THE COST EFFECTIVE CHOICE U.89JM Multi-diameter 105 mm to 215 mm Vehicles after 1999 Essential for small diameter rear springs. (22 vehicle makes) XX U.89J5 U.89J4 U.89J8 C15 306 estate rear suspension Renault Espace 5 J U.89J12 U.89J14 For new generation springs. V Special forks U.89J9 Saxo Berlingo Partner (except 1.9D) U.89J25 Renault 25 U.89JM 760 F04 catalogue FACOM
