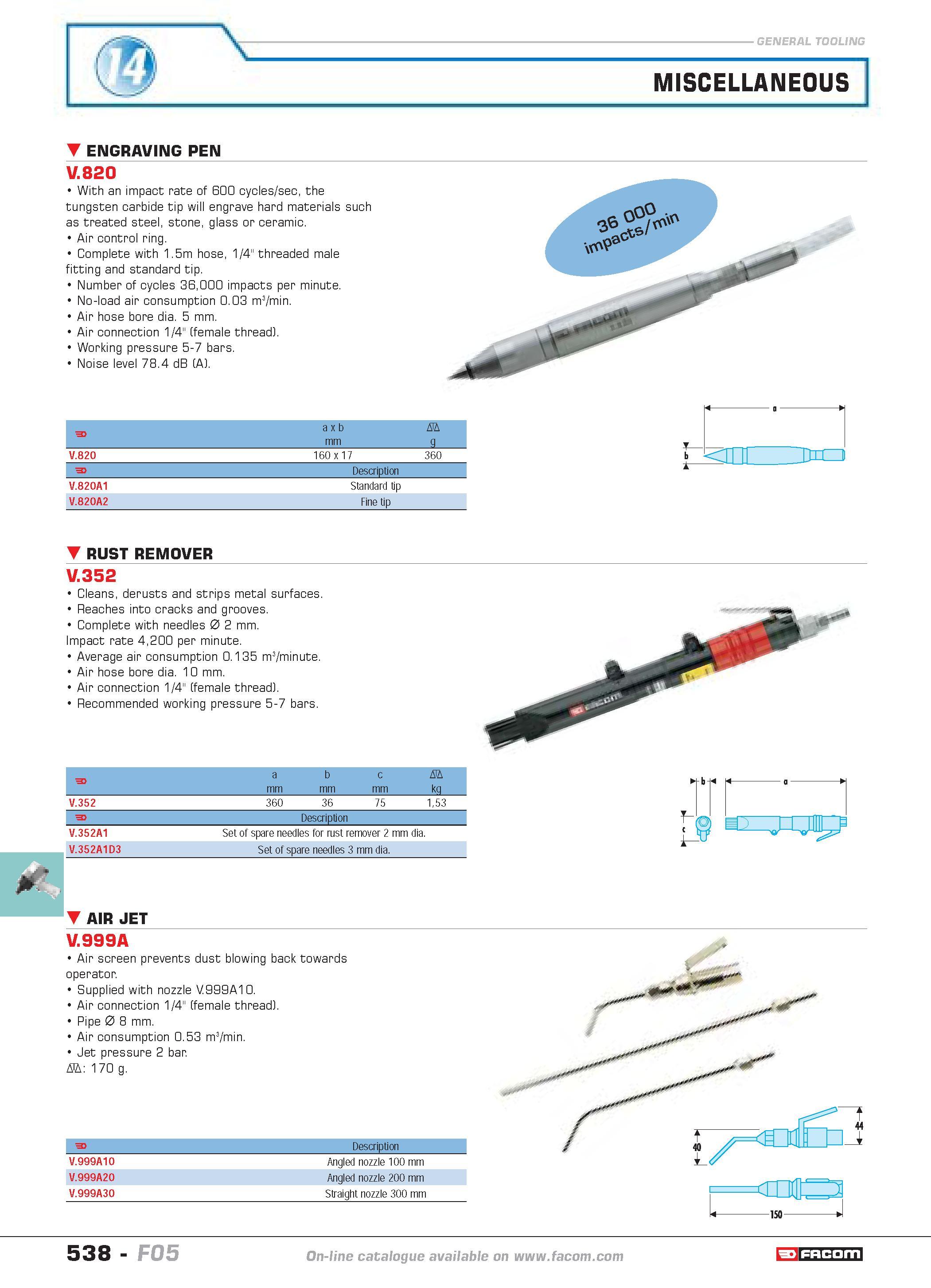

MISCELLANEOUS ENGRAVING PEN V.820 With an impact rate of 600 cycles sec the tungsten carbide tip will engrave hard materials such as treated steel stone glass or ceramic. Air control ring. Complete with 1.5m hose 1/4" threaded male fitting and standard tip. Number of cycles 36000 impacts per minute. No-load air consumption 0.03 m3 min. Air hose bore dia. 5 mm. Air connection 1/4" (female thread). Working pressure 5-7 bars. Noise level 78.4 dB (A). am pn3 a x b D mm g V.820 160x 17 360 Description V.820A1 Standard tip V.820A2 Fine tip RUST REMOVER V.352 Cleans derusts and strips metal surfaces. Reaches into cracks and grooves. Complete with needles 0 2 mm. Impact rate 4200 per minute. Average air consumption 0.135 m3 minute. Air hose bore dia. 10 mm. Air connection 1/4" (female thread). Recommended working pressure 5-7 bars. a b c D mm kg V.352 360 36 75 153 Description V.352A1 Set of spare needles for rust remover 2 mm dia. V.352A1D3 Set of spare needles 3 mm dia. T- AIR JET V.999A Air screen prevents dust blowing back towards operator. Supplied with nozzle V999A10. Air connection 1/4" (female thread). Pipe 0 8 mm. Air consumption 0.53 m3 min. Jet pressure 2 bar D 170 g. Description V.999A10 Angled nozzle 100 mm V.999A20 Angled nozzle 200 mm V.999A30 Straight nozzle 300 mm 538 catalogue FACOM F05
