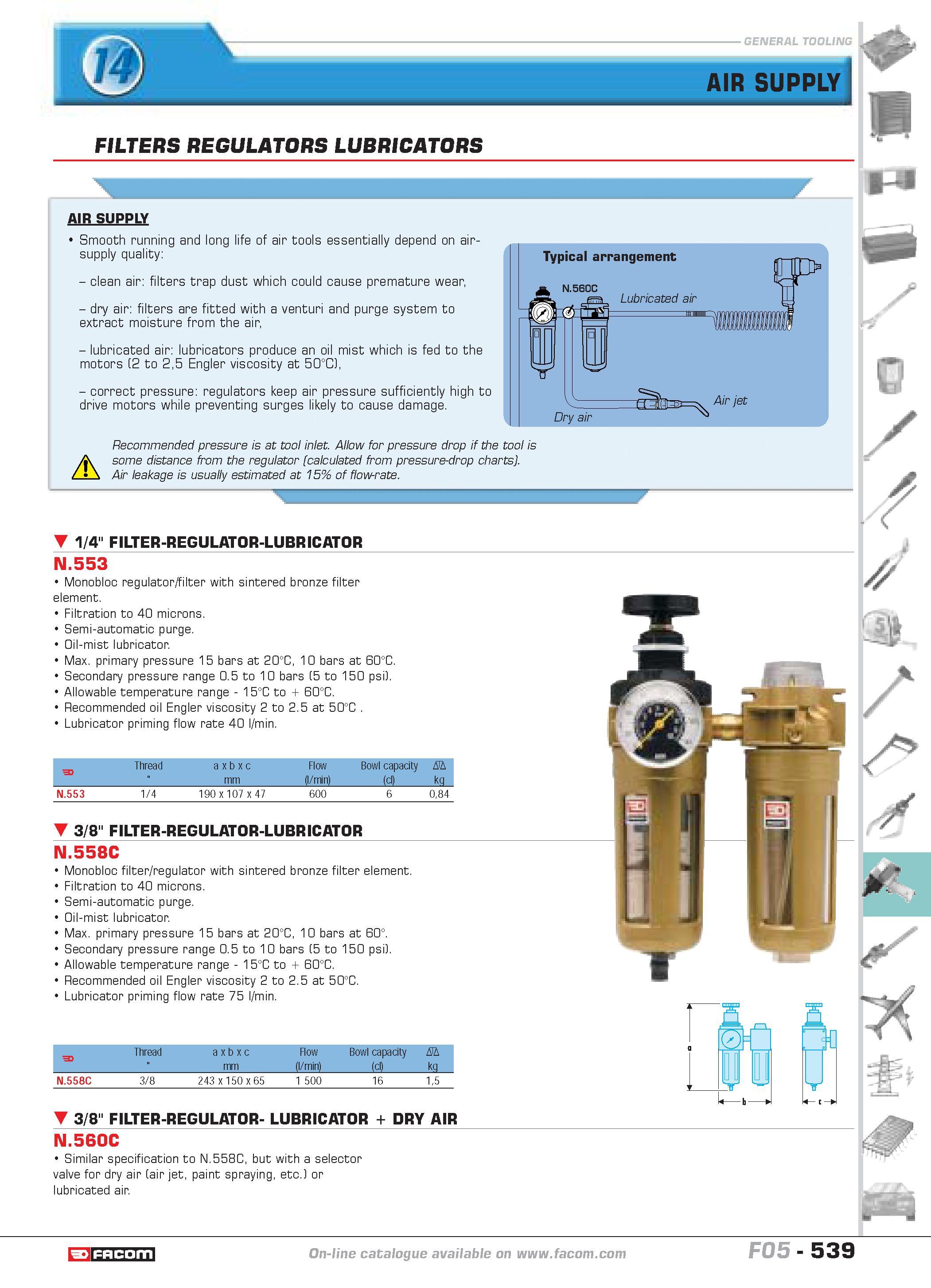

AIR SUPPLY LY FILTERS REGULATORS LUBRICATORS AIR SUPPLY Smooth running and long life of air tools essentially depend on air-supply quality clean air filters trap dust which could cause premature wear dry air filters are fitted with a venturi and purge system to extract moisture from the air lubricated air lubricators produce an oil mist which is fed to the motors (2 to 25 Engler viscosity at 50C) correct pressure regulators keep air pressure sufficiently high to drive motors while preventing surges likely to cause damage. A Recommended pressure is at tool inlet. Allow for pressure drop if the tool is some distance from the regulator (calculated from pressure-drop charts). Air leakage is usually estimated at 15% of flow-rate. 1/4" FILTER-REGULATOR-LUBRICATOR N.553 Monobloc regulator filter with sintered bronze filter element. Filtration to 40 microns. Semi-automatic purge. Oil-mist lubricator Max. primary pressure 15 bars at 20C 10 bars at 60C. Secondary pressure range 0.5 to 10 bars (5 to 150 psi). Allowable temperature range 15C to 60C. Recommended oil Engler viscosity 2 to 2.5 at 50C Lubricator priming flow rate 40 l min. F Thread a x b x c Flow Bowl capacity D mm (l min) (cl) kg N.553 1 4 190 x 107 x 47 600 6 084 3/8" FILTER-REGULATOR-LUBRICATOR N.558C Monobloc filter regulator with sintered bronze filter element. Filtration to 40 microns. Semi-automatic purge. Oil-mist lubricator Max. primary pressure 15 bars at 20C 10 bars at 60. Secondary pressure range 0.5 to 10 bars (5 to 150 psi). Allowable temperature range 15C to 60C. Recommended oil Engler viscosity 2 to 2.5 at 50C. Lubricator priming flow rate 75 l min. F Thread a x b x c Flow Bowl capacity D mm (l min) (cl) kg N.558C 3 8 243 x 150 x 65 1 500 16 15 3/8" FILTER-REGULATOR- LUBRICATOR DRY AIR 0 jhl II 1 i V b t N.560C Similar specification to N.558C but with a selector valve for dry air (air jet paint spraying etc.) or lubricated air. catalogue FACOM F05- 539
