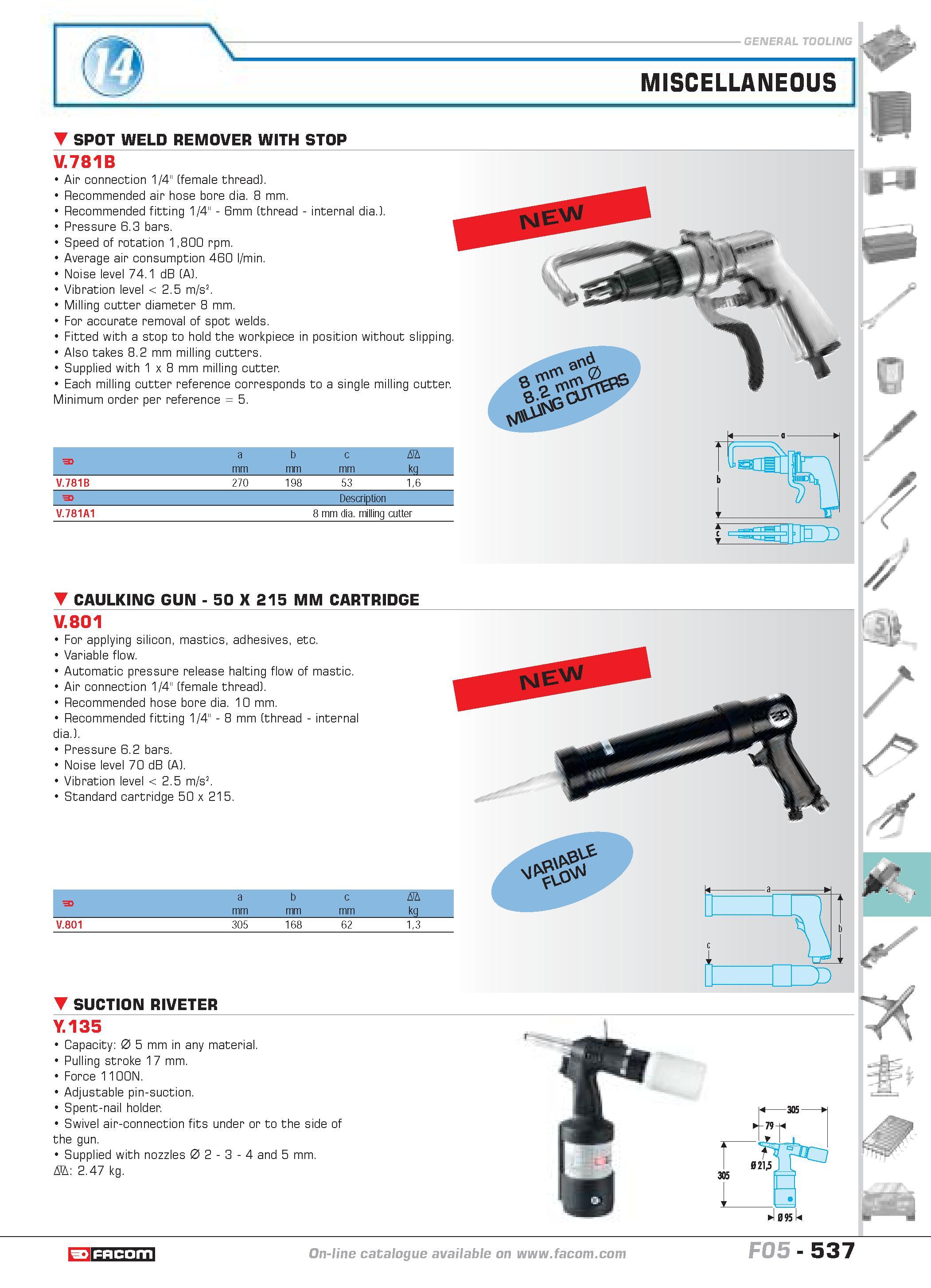

xHSW MISCELLANEOUS SPOT WELD REMOVER WITH STOP V.781B Air connection 1/4" (female thread). Recommended air hose bore dia. 8 mm. Recommended fitting 1/4" 6mm (thread internal dia.). Pressure 6.3 bars. Speed of rotation 1800 rpm. Average air consumption 460 l min. Noise level 74.1 dB (A). Vibration level 2.5 m sz. Milling cutter diameter 8 mm. For accurate removal of spot welds. Fitted with a stop to hold the workpiece in position without slipping Also takes 8.2 mm milling cutters. Supplied with 1 x 8 mm milling cutter. Each milling cutter reference corresponds to a single milling cutter. Minimum order per reference 5. M F a mm b mm c D mm kg V.781B 270 198 53 16 F Description V.781A1 8 mm dia. milling cutter CAULKING GUN 50 X 215 MM CARTRIDGE V.801 For applying silicon mastics adhesives etc. Variable flow. Automatic pressure release halting flow of mastic. Air connection 1/4" (female thread). Recommended hose bore dia. 10 mm. Recommended fitting 1/4" 8 mm (thread internal dia.). Pressure 6.2 bars. Noise level 70 dB (A). Vibration level 2.5 m sz. Standard cartridge 50 x 215. F a b c D mm kg V.801 305 168 62 13 SUCTION RIVETER Y135 Capacity 0 5 mm in any material. Pulling stroke 17 mm. Force 1100N. Adjustable pin-suction. Spent-nail holder. Swivel air-connection fits under or to the side of the gun. Supplied with nozzles 0 2 3 4 and 5 mm. D 2.47 kg. catalogue FACOM F05- 537
