533 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.536

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 536 0533 ENG Lab2u

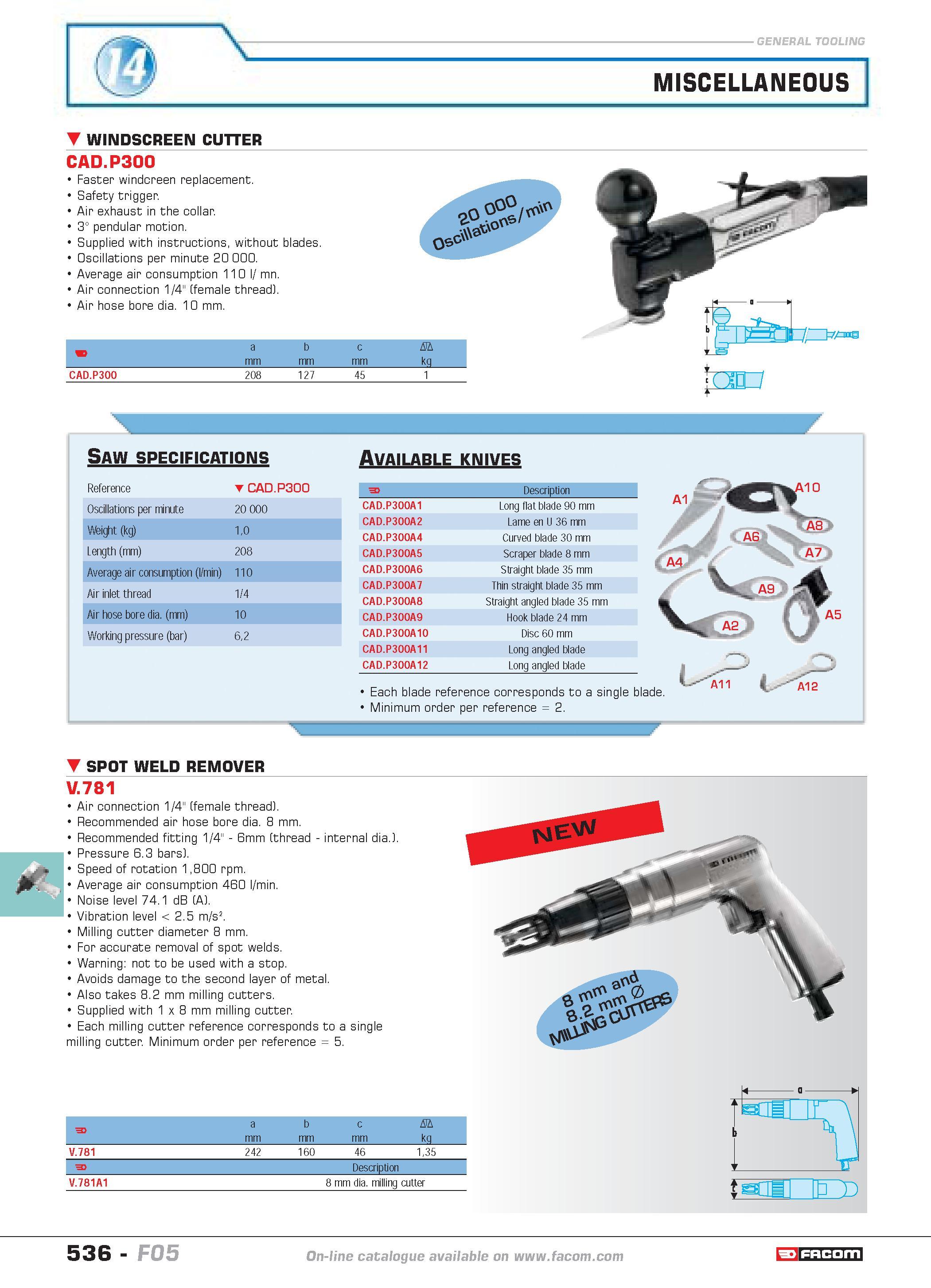

MISCELLANEOUS WINDSCREEN CUTTER CAD.P300 Faster windcreen replacement. Safety trigger. Air exhaust in the collar. 3 pendular motion. Supplied with instructions without blades. Oscillations per minute 20 000. Average air consumption 110 l mn. Air connection 1/4" (female thread). Air hose bore dia. 10 mm. a b c D mm kg CAD.P300 208 127 45 1 WL Saw specifications Reference CAD.P300 Oscillations per minute 20 000 Weight (kg) 10 Length (mm) 208 Average air consumption (l min) 110 Air inlet thread 1 4 Air hose bore dia. (mm) 10 Working pressure (bar) 62 Available knives Description CAD.P300A1 Long flat blade 90 mm CAD.P300A2 Lame en U 36 mm CAD.P300A4 Curved blade 30 mm CAD.P300A5 Scraper blade 8 mm CAD.P300A6 Straight blade 35 mm CAD.P300A7 Thin straight blade 35 mm CAD.P300A8 Straight angled blade 35 mm CAD.P300A9 Hook blade 24 mm CAD.P300A10 Disc 60 mm CAD.P300A11 Long angled blade CAD.P300A12 Long angled blade A1 A10 Each blade reference corresponds to a single blade. Minimum order per reference 2. spot weld remover V.781 Air connection 1/4" (female thread). Recommended air hose bore dia. 8 mm. Recommended fitting 1/4" 6mm (thread internal dia.). Pressure 6.3 bars). Speed of rotation 1800 rpm. Average air consumption 460 l min. Noise level 74.1 dB (A). Vibration level 2.5 m s2. Milling cutter diameter 8 mm. For accurate removal of spot welds. Warning not to be used with a stop. Avoids damage to the second layer of metal. Also takes 8.2 mm milling cutters. Supplied with 1 x 8 mm milling cutter. Each milling cutter reference corresponds to a single milling cutter. Minimum order per reference 5. a mm b mm c D mm kg V.781 242 160 46 135 Description V.781A1 8 mm dia. milling cutter i 536 catalogue FACOM F05
