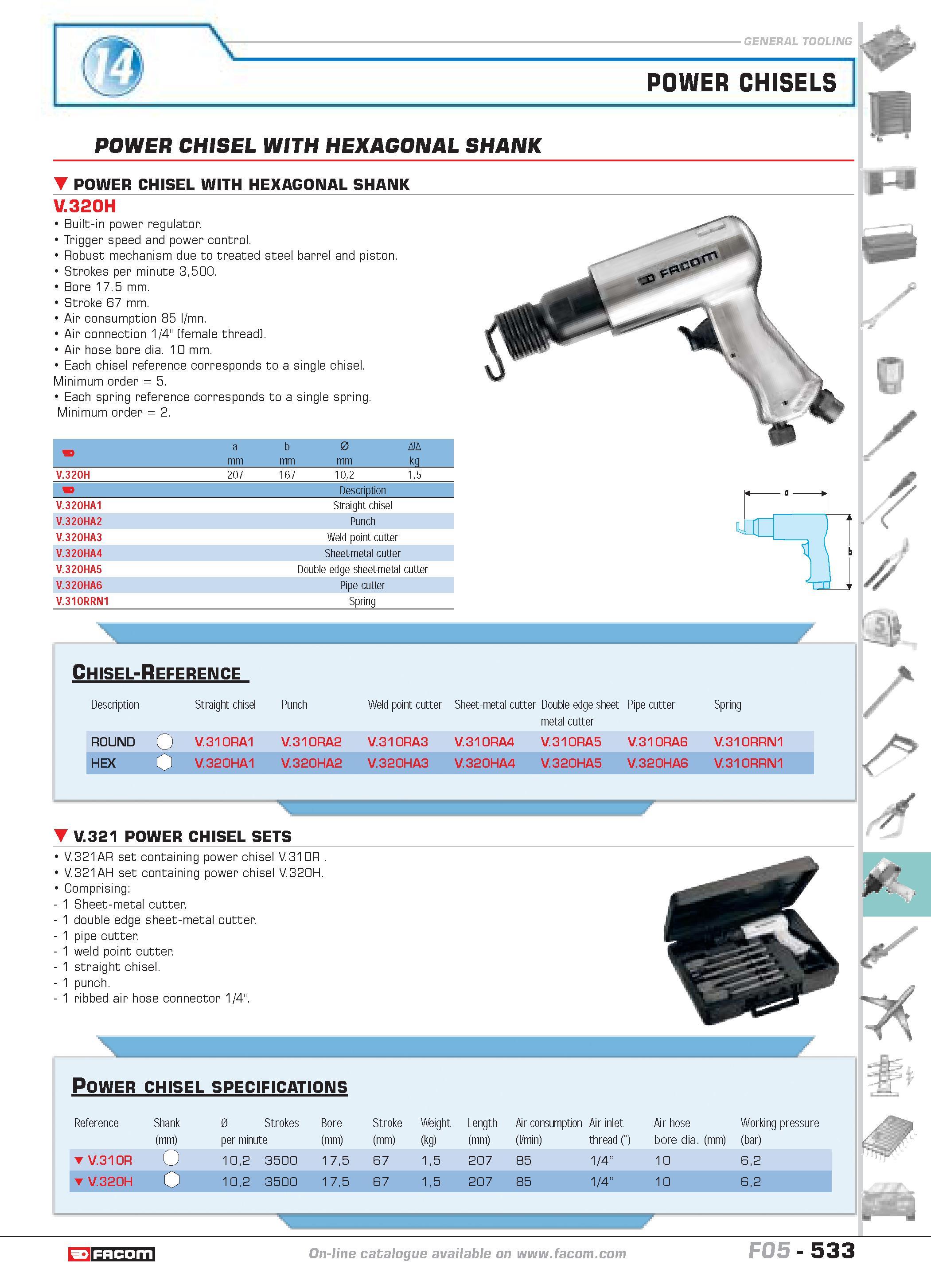

POWER CHISELS POWER CHISEL WITH HEXAGONAL SHANK POWER CHISEL WITH HEXAGONAL SHANK V.320H Built-in power regulator. Trigger speed and power control. Robust mechanism due to treated steel barrel and piston. Strokes per minute 3500. Bore 17.5 mm. Stroke 67 mm. Air consumption 85 l mn. Air connection 1/4" (female thread). Air hose bore dia. 10 mm. Each chisel reference corresponds to a single chisel. Minimum order 5. Each spring reference corresponds to a single spring. Minimum order 2. F a b 0 D mm kg V.320H 207 167 102 15 F Description V.320HA1 Straight chisel V.320HA2 Punch V.320HA3 Weld point cutter V.320HA4 Sheet-metal cutter V.320HA5 Double edge sheet-metal cutter V.320HA6 Pipe cutter V.310RRN1 Spring J Chisel-Reference Description Straight chisel Punch Weld point cutter Sheet-metal cutter Double edge sheet Pipe cutter metal cutter Spring ROUND O V.310RA1 V.310RA2 V.310RA3 V.310RA4 V310RA5 V310RA6 V. 310RRN1 HEX 0 V.320HA1 V.320HA2 V.320HA3 V. 320HA4 V. 320HA5 V.320HA6 V. 310RRN1 V.321 POWER CHISEL SETS V321AR set containing power chisel V310R V321AH set containing power chisel V320H. Comprising 1 Sheet-metal cutter. 1 double edge sheet-metal cutter. 1 pipe cutter. 1 weld point cutter. 1 straight chisel. 1 punch. 1 ribbed air hose connector 1 4". Power chisel specifications Reference Shank 0 Strokes Bore Stroke Weight Length Air consumption Air inlet Air hose Working pressure (mm) per minute (mm) (mm) (kg) (mm) (l min) thread (") bore dia. (mm) (bar) V. 310R o 102 3500 175 67 15 207 85 1 4 10 62 V.320H 0 102 3500 175 67 15 207 85 1 4 10 62 catalogue FACOM F05- 533
