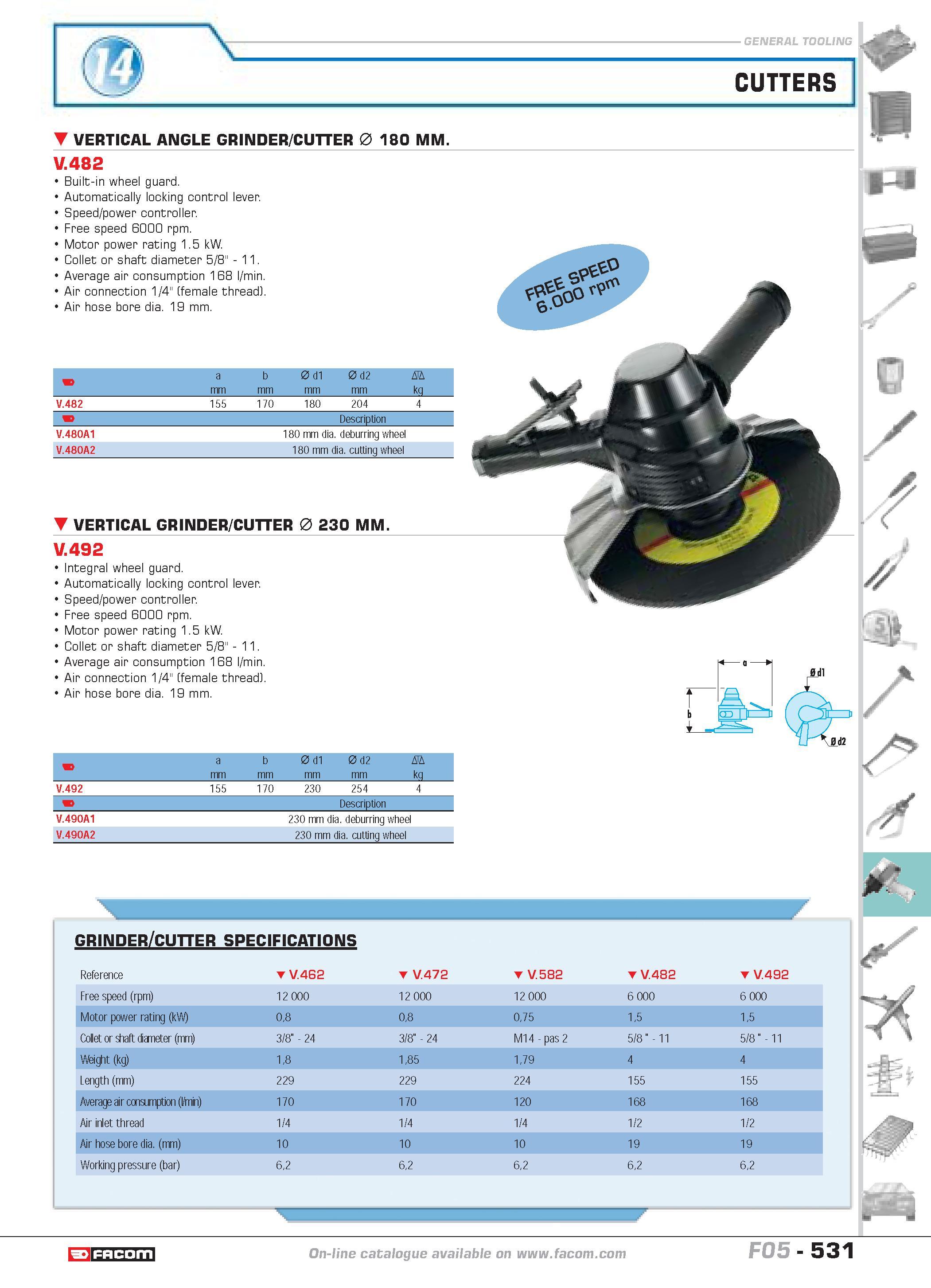

CUTTERS VERTICAL ANGLE GRINDER CUTTER 0 180 MM. V.482 Built-in wheel guard. Automatically locking control lever. Speed power controller. Free speed 6000 rpm. Motor power rating 1.5 kW. Collet or shaft diameter 5 8" 11. Average air consumption 168 l min. Air connection 1/4" (female thread). Air hose bore dia. 19 mm. a b 0 d1 0 d2 Nh mm kg V.482 155 170 180 204 4 Description V.480A1 180 mm dia. deburring wheel V.480A2 180 mm dia. cutting wheel VERTICAL GRINDER CUTTER 0 230 MM. V.492 Integral wheel guard. Automatically locking control lever. Speed power controller. Free speed 6000 rpm. Motor power rating 1.5 kW. Collet or shaft diameter 5 8" 11. Average air consumption 168 l min. Air connection 1/4" (female thread). Air hose bore dia. 19 mm. m a mm b mm 0 d1 mm 0 d2 D mm kg V.492 155 170 230 254 4 Description V.490A1 230 mm dia. deburring wheel V.490A2 230 mm dia. cutting wheel grinder cutter specifications Reference V.462 V.472 V.582 V.482 V.492 Free speed (rpm) 12 000 12 000 12 000 6 000 6 000 Motor power rating (kW) 08 08 075 15 15 Collet or shaft diameter (mm) 3/8" 24 3/8" 24 M14 pas 2 5 8 11 5 8 11 Weight (kg) 18 185 179 4 4 Length (mm) 229 229 224 155 155 Average air consumption (l min) 170 170 120 168 168 Air inlet thread 1 4 1 4 1 4 1 2 1 2 Air hose bore dia. (mm) 10 10 10 19 19 Working pressure (bar) 62 62 62 62 62 catalogue FACOM F05 531
