531 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.534

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 534 0531 ENG Lab2u

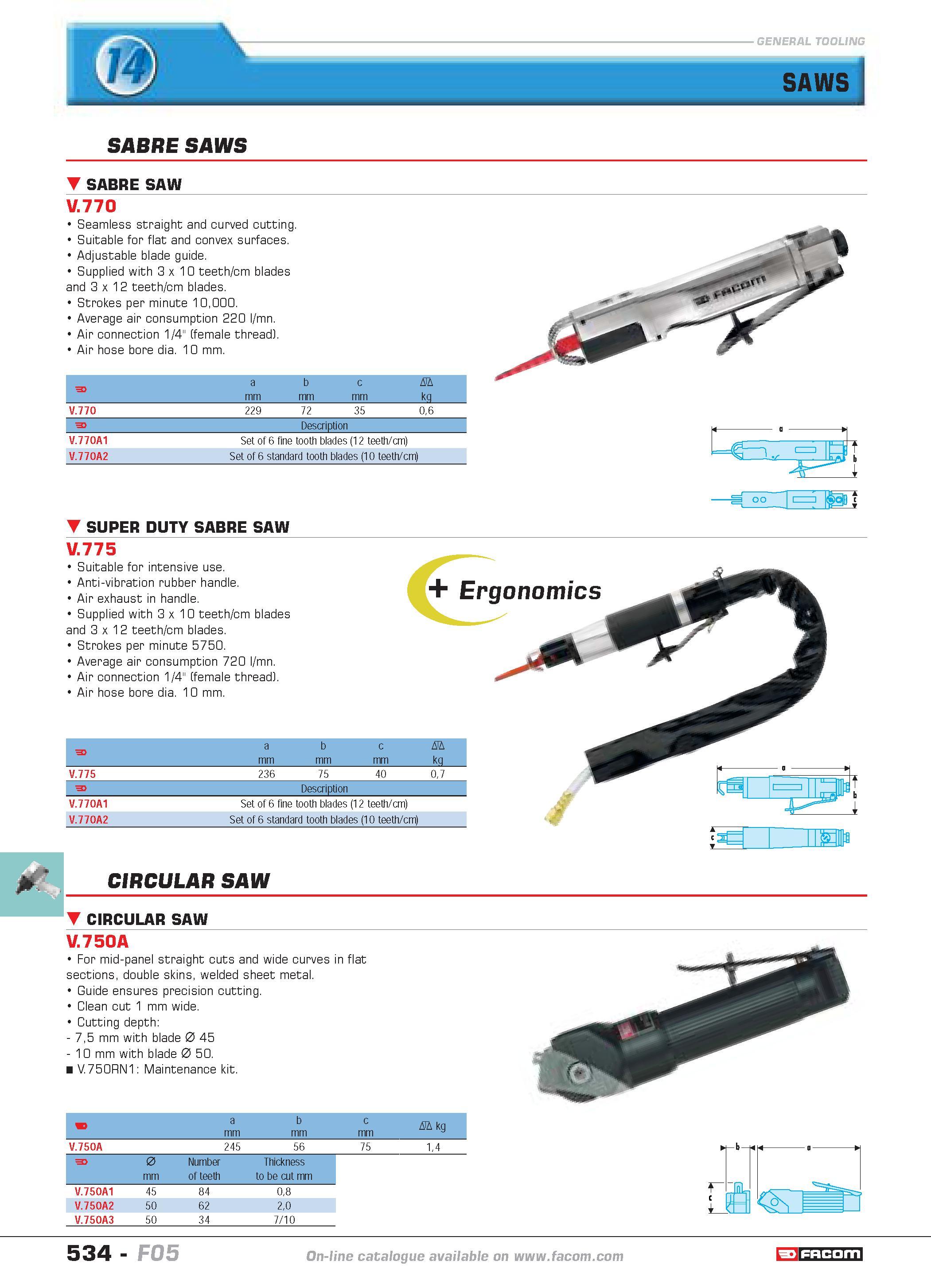

SAWS SABRE SAWS SABRE SAW V.770 Seamless straight and curved cutting. Suitable for flat and convex surfaces. Adjustable blade guide. Supplied with 3 x 10 teeth cm blades and 3 x 12 teeth cm blades. Strokes per minute 10000. Average air consumption 220 l mn. Air connection 1/4" (female thread). Air hose bore dia. 10 mm. a b c D mm kq V.770 229 72 35 06 Description V.770A1 Set of 6 fine tooth blades (12 teeth cm) V.770A2 Set of 6 standard tooth blades (10 teeth cm) SUPER DUTY SABRE SAW V.775 Suitable for intensive use. Anti-vibration rubber handle. Air exhaust in handle. Supplied with 3 x 10 teeth cm blades and 3 x 12 teeth cm blades. Strokes per minute 5750. Average air consumption 720 l mn. Air connection 1/4" (female thread). Air hose bore dia. 10 mm. Ergonomics a b c mm D kg V.775 236 75 40 07 Description V.770A1 Set of 6 fine tooth blades (12 teeth cm) V.770A2 Set of 6 standard tooth blades (10 teeth cm) p 4 1 llUla CIRCULAR SAW CIRCULAR SAW V.750A For mid-panel straight cuts and wide curves in flat sections double skins welded sheet metal. Guide ensures precision cutting. Clean cut 1 mm wide. Cutting depth 75 mm with blade 0 45 10 mm with blade 0 50. V750RN1 Maintenance kit. m a mm b mm c mm D kg V.750A 245 56 75 14 0 Number Thickness mm of teeth to be cut mm V.750A1 45 84 08 V.750A2 50 62 20 V.750A3 50 34 7 10 534 catalogue FACOM F05
