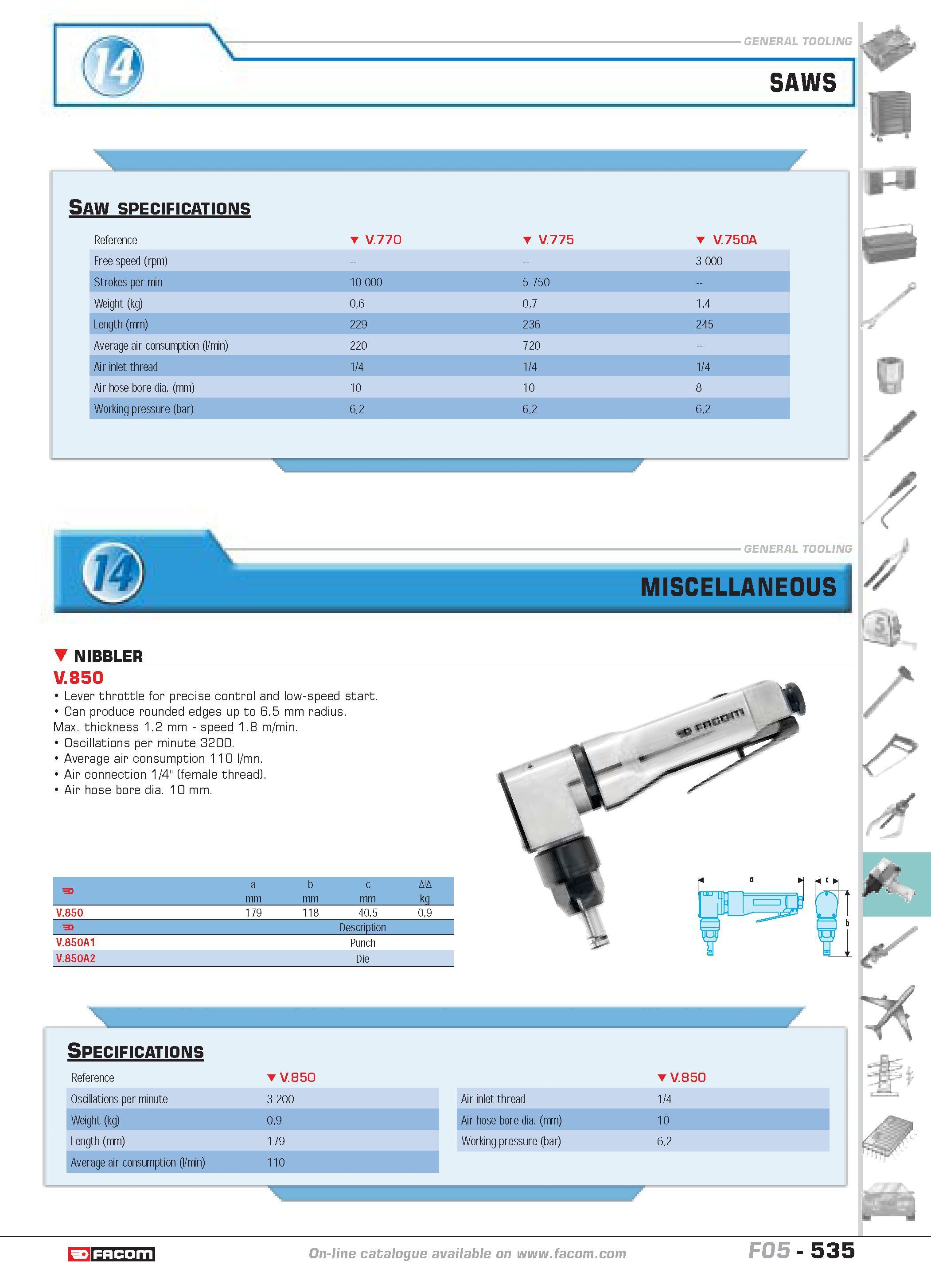

SAWS Saw specifications Reference V.770 V.775 V.750A Free speed (rpm) 3 000 Strokes per min 10 000 5 750 Weight (kg) 06 07 14 Length (mm) 229 236 245 Average air consumption (l min) 220 720 Air inlet thread 1 4 1 4 1 4 Air hose bore dia. (mm) 10 10 8 Working pressure (bar) 62 62 62 k MISCELLANEOUS NIBBLER V.850 Lever throttle for precise control and low-speed start. Can produce rounded edges up to 6.5 mm radius. Max. thickness 1.2 mm speed 1.8 m min. Oscillations per minute 3200. Average air consumption 110 l mn. Air connection 1/4" (female thread). Air hose bore dia. 10 mm. F a mm b mm c mm D kg V.850 179 118 40.5 09 F Description V.850A1 Punch V.850A2 Die Specifications Reference V.850 V.850 Oscillations per minute 3 200 Air inlet thread 1 4 Weight (kg) 09 Air hose bore dia. (mm) 10 Length (mm) 179 Working pressure (bar) 62 Average air consumption (l min) 110 catalogue FACOM F05- 535
