529 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.532

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 532 0529 ENG Lab2u

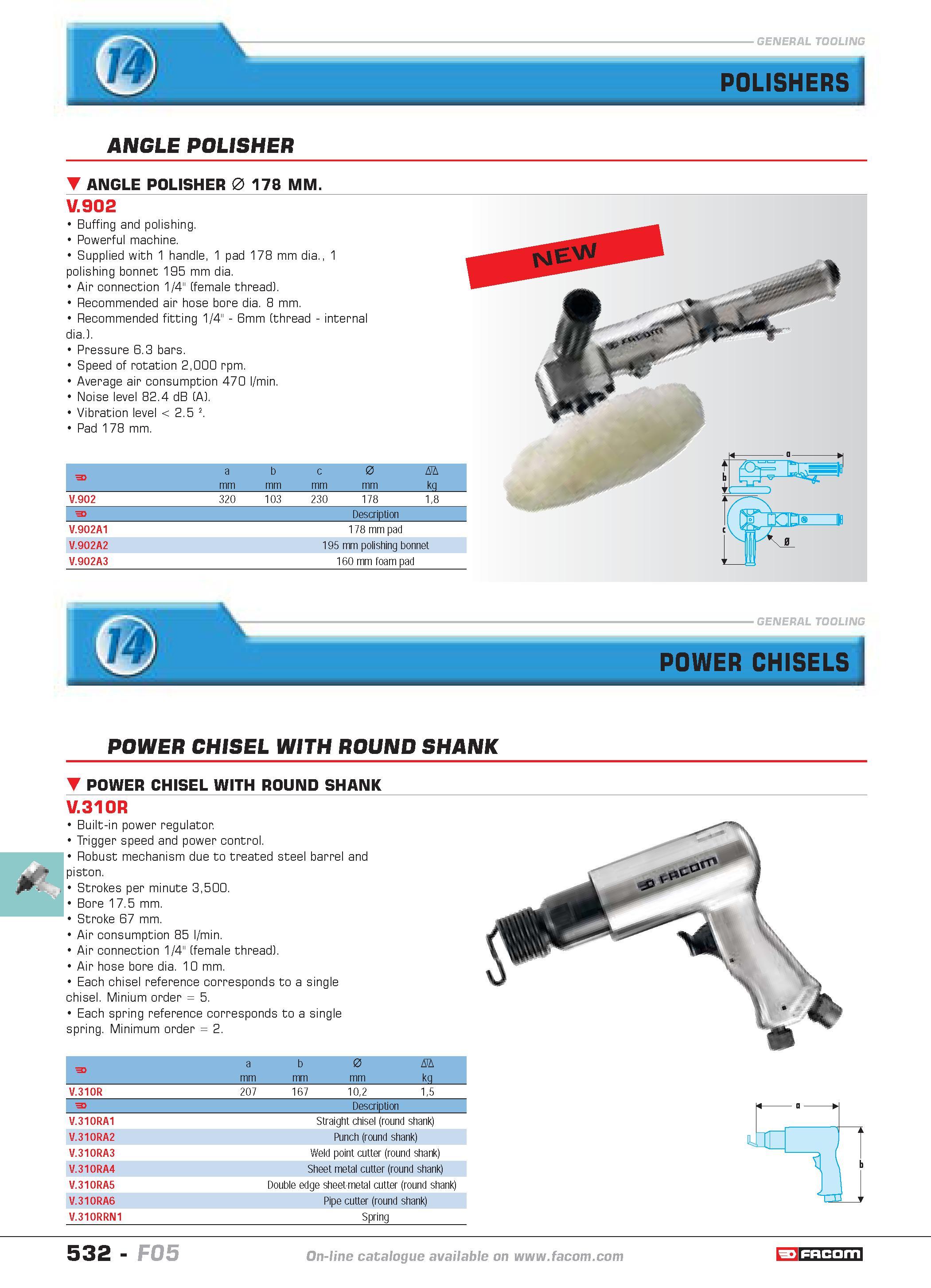

POLISHERS ANGLE POLISHER ANGLE POLISHER 0 178 MM. V.902 Buffing and polishing. Powerful machine. Supplied with 1 handle 1 pad 178 mm dia. 1 polishing bonnet 195 mm dia. Air connection 1/4" (female thread). Recommended air hose bore dia. 8 mm. Recommended fitting 1/4" 6mm (thread internal dia.). Pressure 6.3 bars. Speed of rotation 2000 rpm. Average air consumption 470 l min. Noise level 82.4 dB (A). Vibration level 2.5 z. Pad 178 mm. F a mm b mm c 0 D mm kg V.902 320 103 230 178 18 F Description V.902A1 178 mm pad V.902A2 195 mm polishing bonnet V.902A3 160 mm foam pad POWER CHISELS POWER CHISEL WITH ROUND SHANK POWER CHISEL WITH ROUND SHANK V.310R Built-in power regulator Trigger speed and power control. Robust mechanism due to treated steel barrel and piston. & Strokes per minute 3500. Bore 17.5 mm. Stroke 67 mm. Air consumption 85 l min. Air connection 1/4" (female thread). Air hose bore dia. 10 mm. Each chisel reference corresponds to a single chisel. Minium order 5. Each spring reference corresponds to a single spring. Minimum order 2. F a b 0 D mm kg V.310R 207 167 102 15 F Description V.310RA1 Straight chisel (round shank) V.310RA2 Punch (round shank) V.310RA3 Weld point cutter (round shank) V.310RA4 Sheet metal cutter (round shank) V.310RA5 Double edge sheet-metal cutter (round shank) V.310RA6 Pipe cutter (round shank) V.310RRN1 Spring 532 catalogue FACOM F05
