526 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.529

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 529 0526 ENG Lab2u

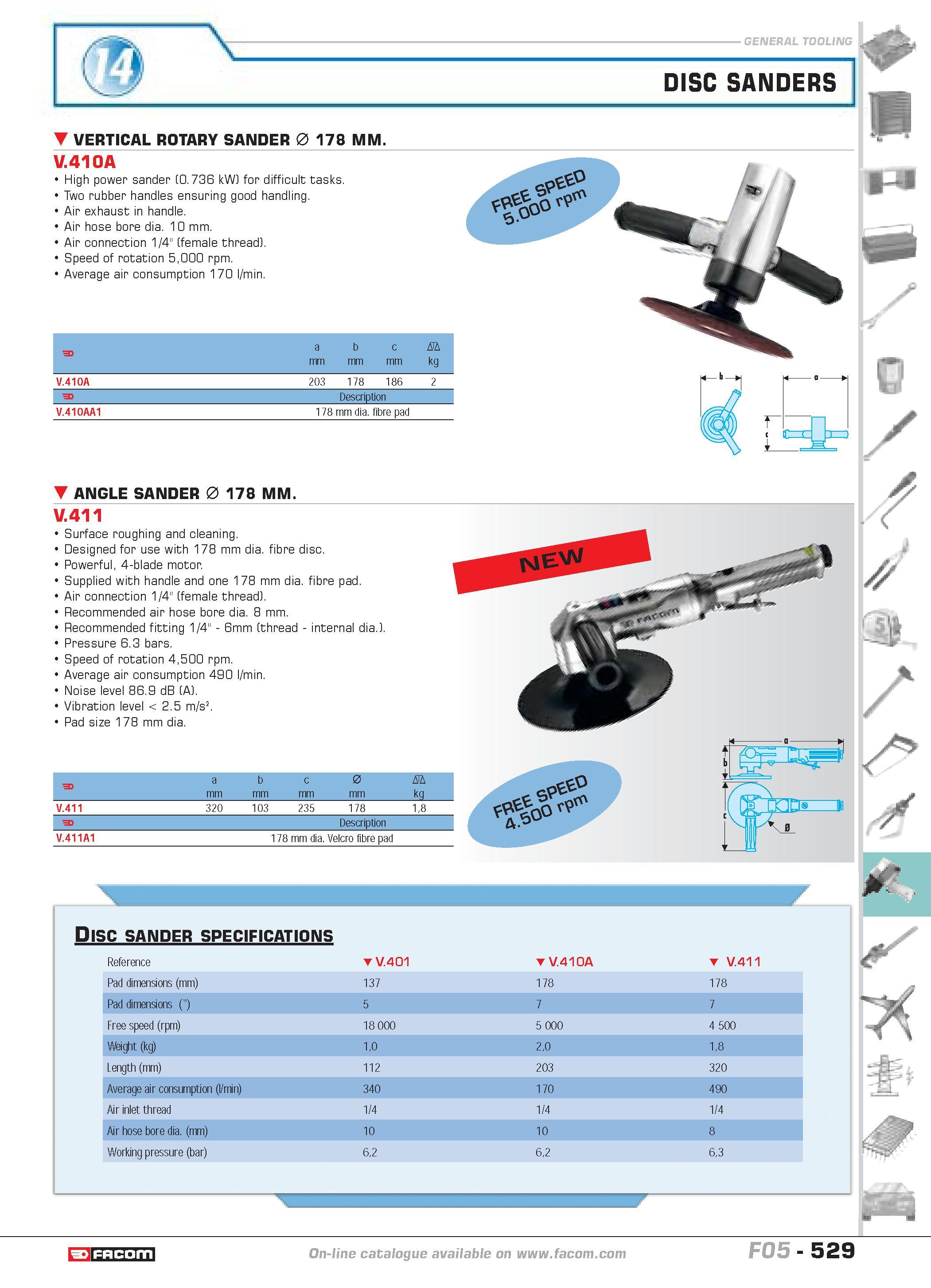

V.410A High power sander (0.736 kW) for difficult tasks. Two rubber handles ensuring good handling. Air exhaust in handle. Air hose bore dia. 10 mm. Air connection 1/4" (female thread). Speed of rotation 5000 rpm. Average air consumption 170 l min. F a mm b c mm D kg V.410A 203 178 186 2 F Description V.410AA1 178 mm dia. fibre pad ANGLE SANDER 0 178 MM. V.411 Surface roughing and cleaning. Designed for use with 178 mm dia. fibre disc. Powerful 4-blade motor. Supplied with handle and one 178 mm dia. fibre pad. Air connection 1/4" (female thread). Recommended air hose bore dia. 8 mm. Recommended fitting 1/4" 6mm (thread internal dia.) Pressure 6.3 bars. Speed of rotation 4500 rpm. Average air consumption 490 l min. Noise level 86.9 dB (A). Vibration level 2.5 m s2. Pad size 178 mm dia. F a b c 0 D mm kg V.411 320 103 235 178 18 F Description V.411A1 178 mm dia. Velcro fibre pad l Pr iJS; Disc sander specifications Reference V.401 V.410A V.411 Pad dimensions (mm) 137 178 178 Pad dimensions (") 5 7 7 Free speed (rpm) 18 000 5 000 4 500 Weight (kg) 10 20 18 Length (mm) 112 203 320 Average air consumption (l min) 340 170 490 Air inlet thread 1 4 1 4 1 4 Air hose bore dia. (mm) 10 10 8 Working pressure (bar) 62 62 63 catalogue FACOM F05- 529
