523 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.526

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 526 0523 ENG Lab2u

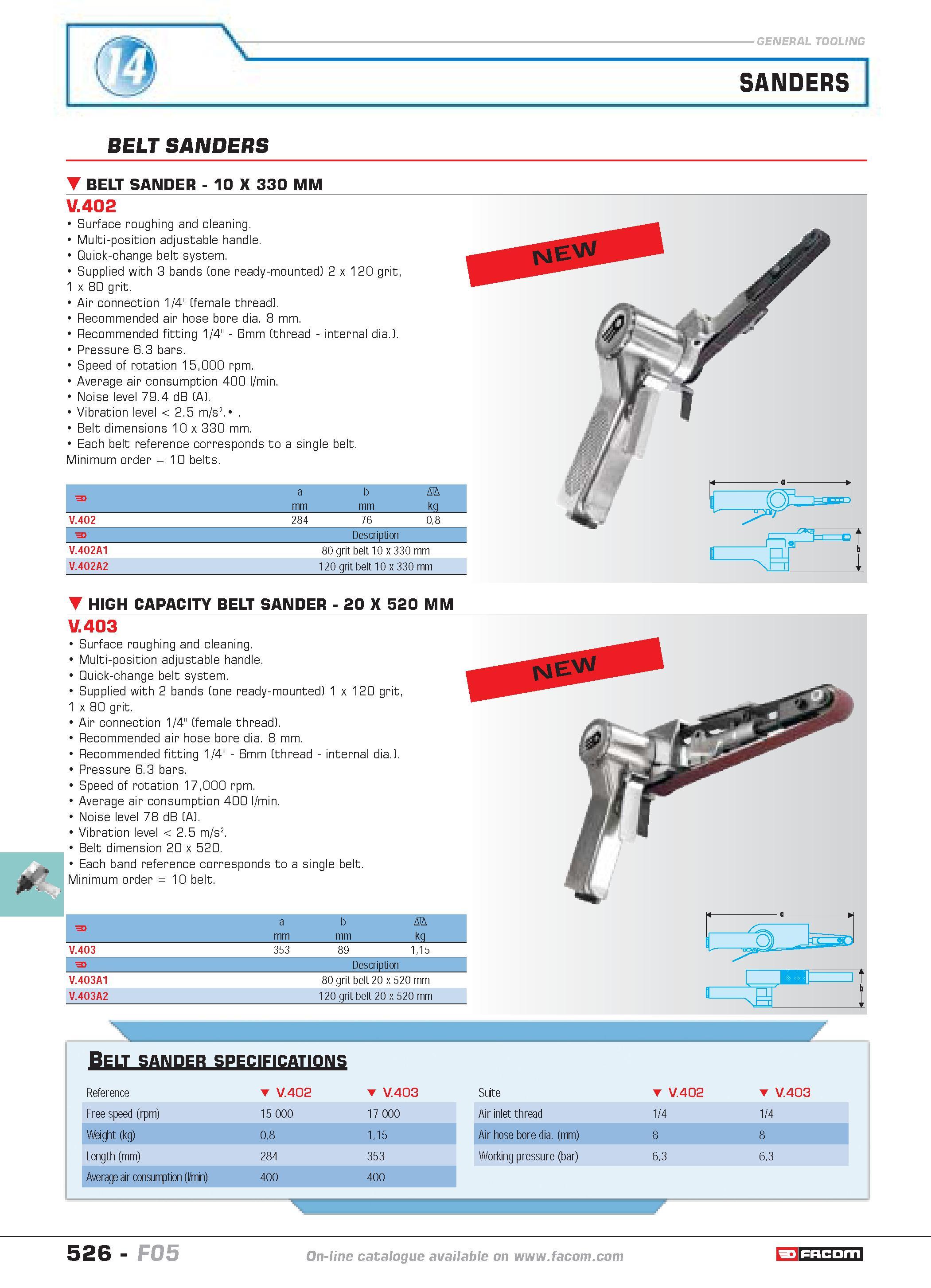

SANDERS BELT SANDERS BELT SANDER 10 X 330 MM V.402 Surface roughing and cleaning. Multi-position adjustable handle. Quick-change belt system. Supplied with 3 bands (one ready-mounted) 2 x 120 grit 1 x 80 grit. Air connection 1/4" (female thread). Recommended air hose bore dia. 8 mm. Recommended fitting 1/4" 6mm (thread internal dia.). Pressure 6.3 bars. Speed of rotation 15000 rpm. Average air consumption 400 l min. Noise level 79.4 dB (A). Vibration level 2.5 m sV Belt dimensions 10 x 330 mm. Each belt reference corresponds to a single belt. Minimum order 10 belts. HIGH CAPACITY BELT SANDER 20 X 520 MM V.403 Surface roughing and cleaning. Multi-position adjustable handle. Quick-change belt system. Supplied with 2 bands (one ready-mounted) 1 x 120 grit 1 x 80 grit. Air connection 1/4" (female thread). Recommended air hose bore dia. 8 mm. Recommended fitting 1/4" 6mm (thread internal dia.). Pressure 6.3 bars. Speed of rotation 17000 rpm. Average air consumption 400 l min. Noise level 78 dB (A). Vibration level 2.5 m s2. Belt dimension 20 x 520. Each band reference corresponds to a single belt. Minimum order 10 belt. F a b D mm kg V.403 353 89 115 F Description V.403A1 0 52 0 cs el b gr 0 8 mm V.403A2 120 grit belt 20 x 520 mm r. Belt sander specifications Reference V.402 V.403 Suite V.402 V.403 Free speed (rpm) 15 000 17 000 Air inlet thread 1 4 1 4 Weight (kg) 08 115 Air hose bore dia. (mm) 8 8 Length (mm) 284 353 Working pressure (bar) 63 63 Average air consumption (l min) 400 400 526 catalogue FACOM F05
