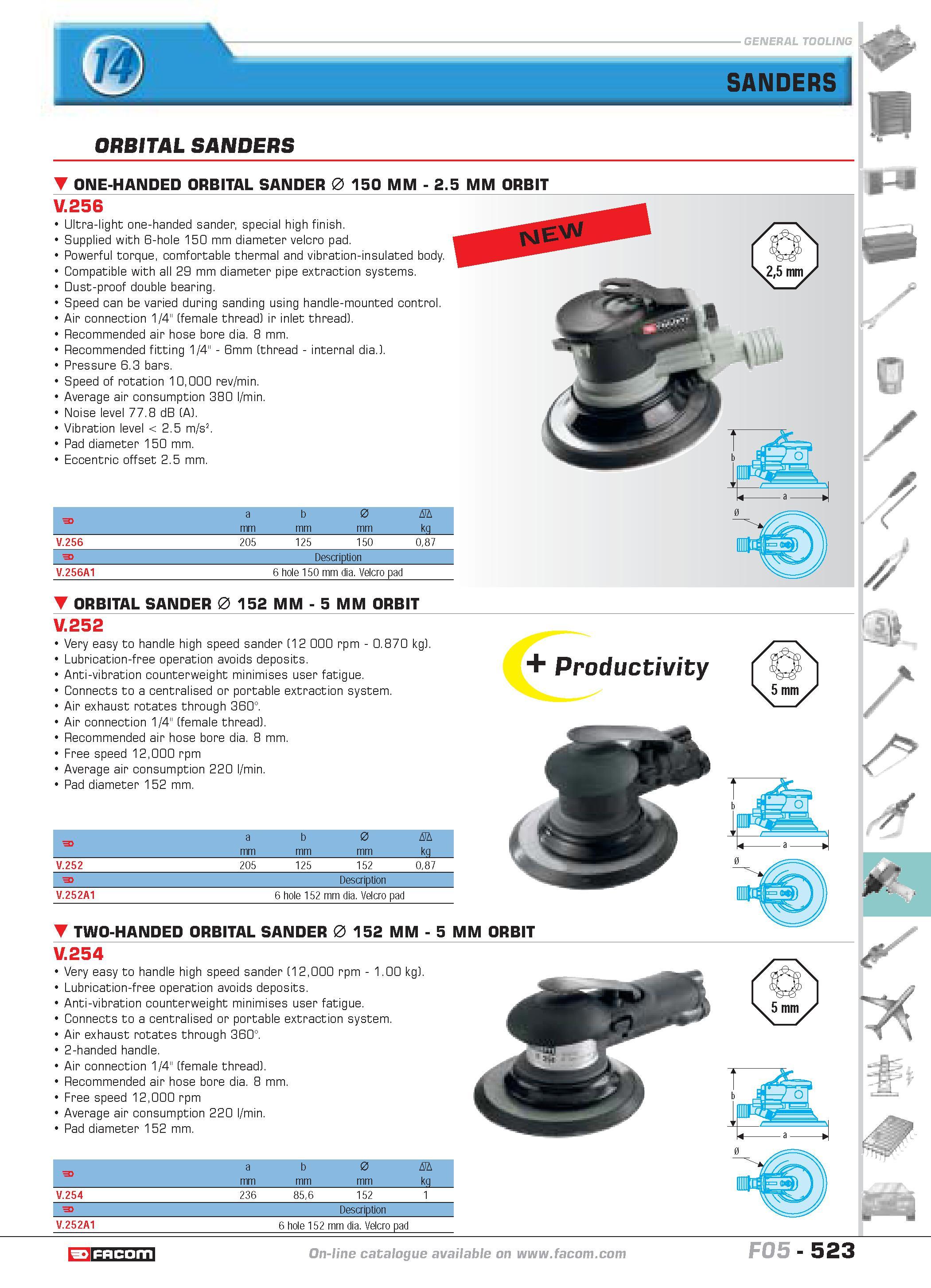

ORBITAL SANDERS ONE-HANDED ORBITAL SANDER 0 150 MM 2.5 MM ORBIT V.256 Ultra-light one-handed sander special high finish. Supplied with 6-hole 150 mm diameter velcro pad. Powerful torque comfortable thermal and vibration-insulated body. Compatible with all 29 mm diameter pipe extraction systems. Dust-proof double bearing. Speed can be varied during sanding using handle-mounted control. Air connection 1/4" (female thread) ir inlet thread). Recommended air hose bore dia. 8 mm. Recommended fitting 1/4" 6mm (thread internal dia.). Pressure 6.3 bars. Speed of rotation 10000 rev min. Average air consumption 380 l min. Noise level 77.8 dB (A). Vibration level 2.5 m s2. Pad diameter 150 mm. Eccentric offset 2.5 mm. F a mm b 0 mm D kg V.256 205 125 150 087 F Description V.256A1 6 hole 150 mm dia. Velcro pad ORBITAL SANDER 0 152 MM 5 MM ORBIT V.252 Very easy to handle high speed sander (12 000 rpm 0.870 kg). Lubrication-free operation avoids deposits. Anti-vibration counterweight minimises user fatigue. Connects to a centralised or portable extraction system. Air exhaust rotates through 360. Air connection 1/4" (female thread). Recommended air hose bore dia. 8 mm. Free speed 12000 rpm Average air consumption 220 l min. Pad diameter 152 mm. F a b 0 D mm kg V.252 205 125 152 087 F Description V.252A1 6 hole 152 mm dia. Velcro pad TWO-HANDED ORBITAL SANDER 0 152 MM 5 MM ORBIT V.254 Very easy to handle high speed sander (12000 rpm 1.00 kg). Lubrication-free operation avoids deposits. Anti-vibration counterweight minimises user fatigue. Connects to a centralised or portable extraction system. Air exhaust rotates through 360. 2-handed handle. Air connection 1/4" (female thread). Recommended air hose bore dia. 8 mm. Free speed 12000 rpm Average air consumption 220 l min. Pad diameter 152 mm. a b 0 D mm kg V.254 236 856 152 1 F Description V.252A1 6 hole 152 mm dia. Velcro pad il catalogue FACOM F05- 523
