518 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.521

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 521 0518 ENG Lab2u

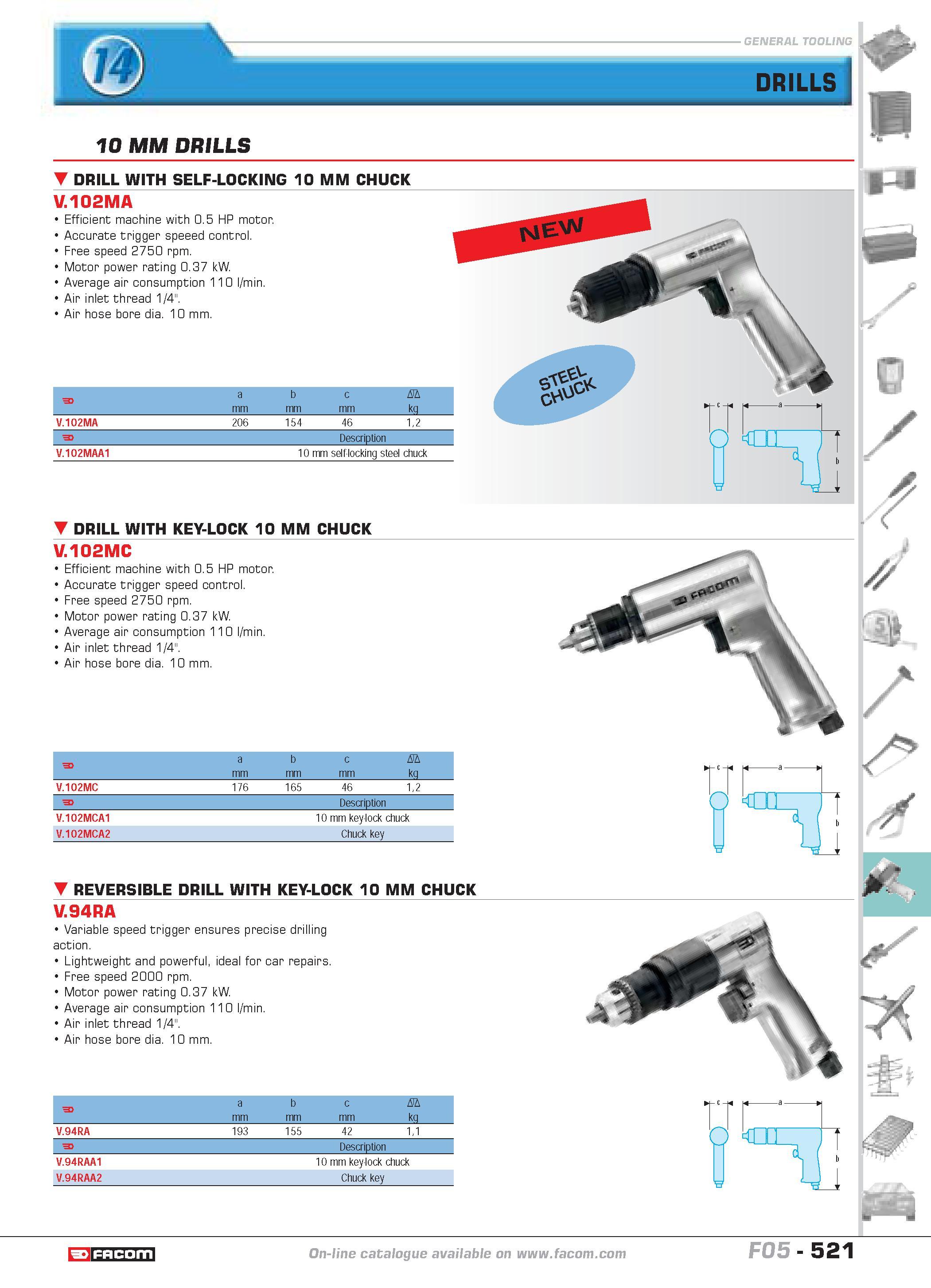

DRILLS S DRILL WITH SELF-LOCKING 10 MM CHUCK V.102MA Efficient machine with 0.5 HP motor. Accurate trigger speeed control. Free speed 2750 rpm. Motor power rating 0.37 kW. Average air consumption 110 l min. Air inlet thread 1 4". Air hose bore dia. 10 mm. a mm b mm c D mm kq V.102MA 206 154 46 12 Description V.102MAA1 10 mm self-lockinq steel chuck DRILL WITH KEY-LOCK 10 MM CHUCK V.102MC Efficient machine with 0.5 HP motor. Accurate trigger speed control. Free speed 2750 rpm. Motor power rating 0.37 kW. Average air consumption 110 l min. Air inlet thread 1 4". Air hose bore dia. 10 mm. a mm b mm c D mm kq V.102MC 176 165 46 12 Description V.102MCA1 10 mm key-lock chuck V.102MCA2 Chuck key c 4 --a REVERSIBLE DRILL WITH KEY-LOCK 10 MM CHUCK V.94RA Variable speed trigger ensures precise drilling action. Lightweight and powerful ideal for car repairs. Free speed 2000 rpm. Motor power rating 0.37 kW. Average air consumption 110 l min. Air inlet thread 1 4". Air hose bore dia. 10 mm. a mm b mm c D mm kq V.94RA 193 155 42 11 Description V.94RAA1 10 mm key-lock chuck V.94RAA2 Chuck key l d M catalogue FACOM F05- 521
