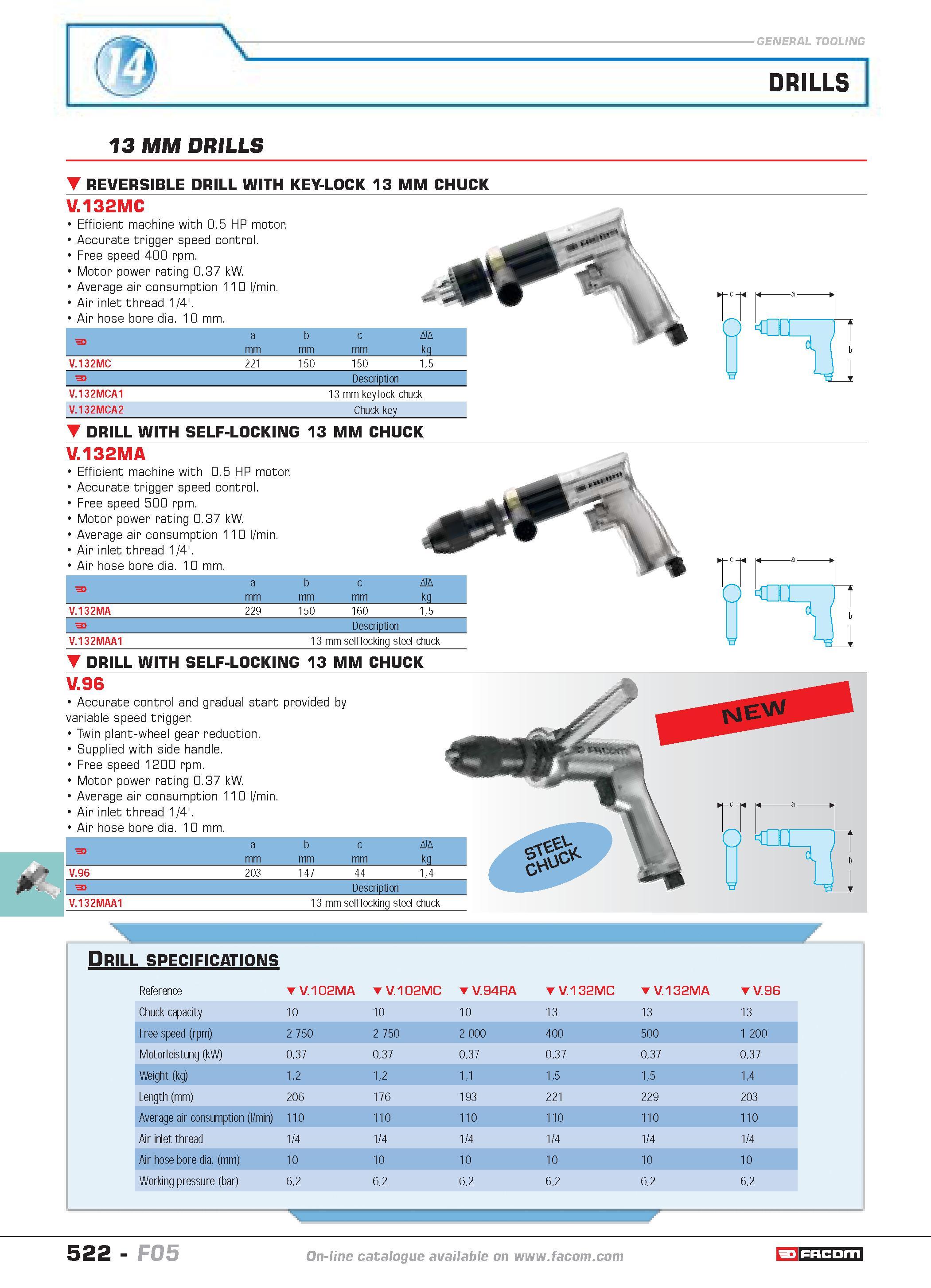

DRILLS 13 MM DRILLS REVERSIBLE DRILL WITH KEY-LOCK 13 MM CHUCK V.132MC Efficient machine with 0.5 HP motor. Accurate trigger speed control. Free speed 400 rpm. Motor power rating 0.37 kW. Average air consumption 110 l min. Air inlet thread 1 4". Air hose bore dia. 10 mm. F a b c Nh mm kg V.132MC 221 150 150 15 F Description V.132MCA1 13 mm key lock chuck V.132MCA2 Chuck key T DRILL WITH SELF-LOCKING 13 MM CHUCK V.132MA Efficient machine with 0.5 HP motor. Accurate trigger speed control. Free speed 500 rpm. Motor power rating 0.37 kW. Average air consumption 110 l min. Air inlet thread 1 4". Air hose bore dia. 10 mm. F a b c Nh mm kg V.132MA 229 150 160 15 F Description V.132MAA1 13 mm self-locking steel chuck DRILL WITH SELF-LOCKING 13 MM CHUCK V.96 Accurate control and gradual start provided by variable speed trigger. Twin plant-wheel gear reduction. Supplied with side handle. Free speed 1200 rpm. Motor power rating 0.37 kW. Average air consumption 110 l min. Air inlet thread 1 4". Air hose bore dia. 10 mm. F a mm b mm c D mm kg V.96 203 147 44 14 F Description V.132MAA1 13 mm self-locking steel chuck W Drill specifications Reference V.102MA V.102MC V.94RA V.132MC V.132MA V.96 Chuck capacity 10 10 10 13 13 13 Free speed (rpm) 2 750 2 750 2 000 400 500 1 200 Motorleistung (kW) 037 037 037 037 037 037 Weight (kg) 12 12 11 15 15 14 Length (mm) 206 176 193 221 229 203 Average air consumption (l min) 110 110 110 110 110 110 Air inlet thread 1 4 1 4 1 4 1 4 1 4 1 4 Air hose bore dia. (mm) 10 10 10 10 10 10 Working pressure (bar) 62 62 62 62 62 62 522 catalogue FACOM F05
