517 Каталог FACOM 2005 Профессиональный ручной инструмент для предприятий Стр.520

Каталог FACOM 2005 Профессиональный ручной инструмент Стр. 520 0517 ENG Lab2u

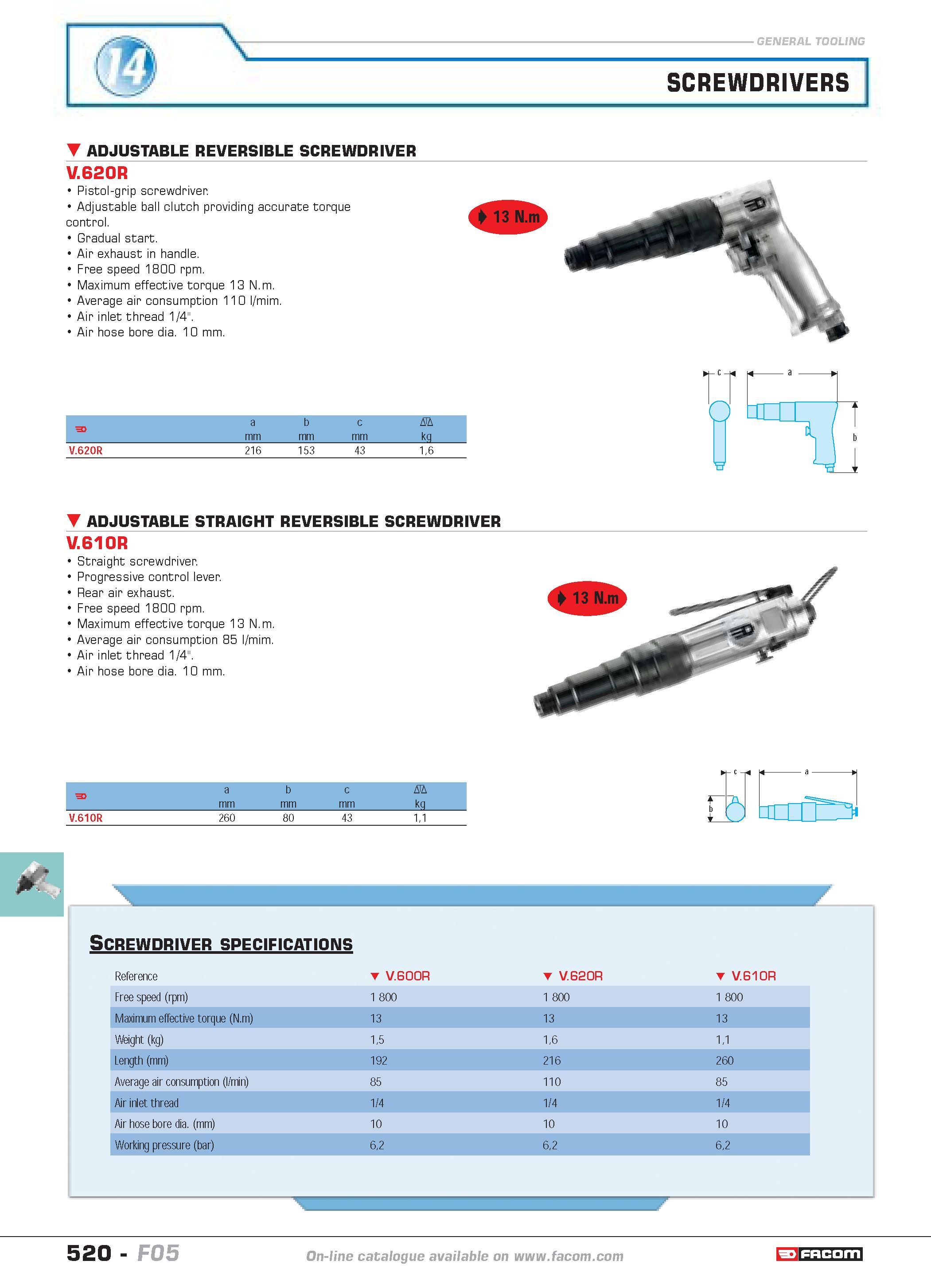

SCREWDRIVERS ADJUSTABLE REVERSIBLE SCREWDRIVER V.620R Pistol-grip screwdriver. Adjustable ball clutch providing accurate torque control. Gradual start. Air exhaust in handle. Free speed 1800 rpm. Maximum effective torque 13 N.m. Average air consumption 110 l mim. Air inlet thread 1 4". Air hose bore dia. 10 mm. F a b c D mm kg V.620R 216 153 43 16 O ADJUSTABLE STRAIGHT REVERSIBLE SCREWDRIVER V.610R Straight screwdriver. Progressive control lever. Rear air exhaust. Free speed 1800 rpm. Maximum effective torque 13 N.m. Average air consumption 85 l mim. Air inlet thread 1 4". Air hose bore dia. 10 mm. F a b c D mm kg V.610R 260 80 43 11 -4 b Screwdriver specifications Reference V.600R V.620R V.610R Free speed (rpm) 1 800 1 800 1 800 Maximum effective torque (N.m) 13 13 13 Weight (kg) 15 16 11 Length (mm) 192 216 260 Average air consumption (l min) 85 110 85 Air inlet thread 1 4 1 4 1 4 Air hose bore dia. (mm) 10 10 10 Working pressure (bar) 62 62 62 520 catalogue FACOM F05
