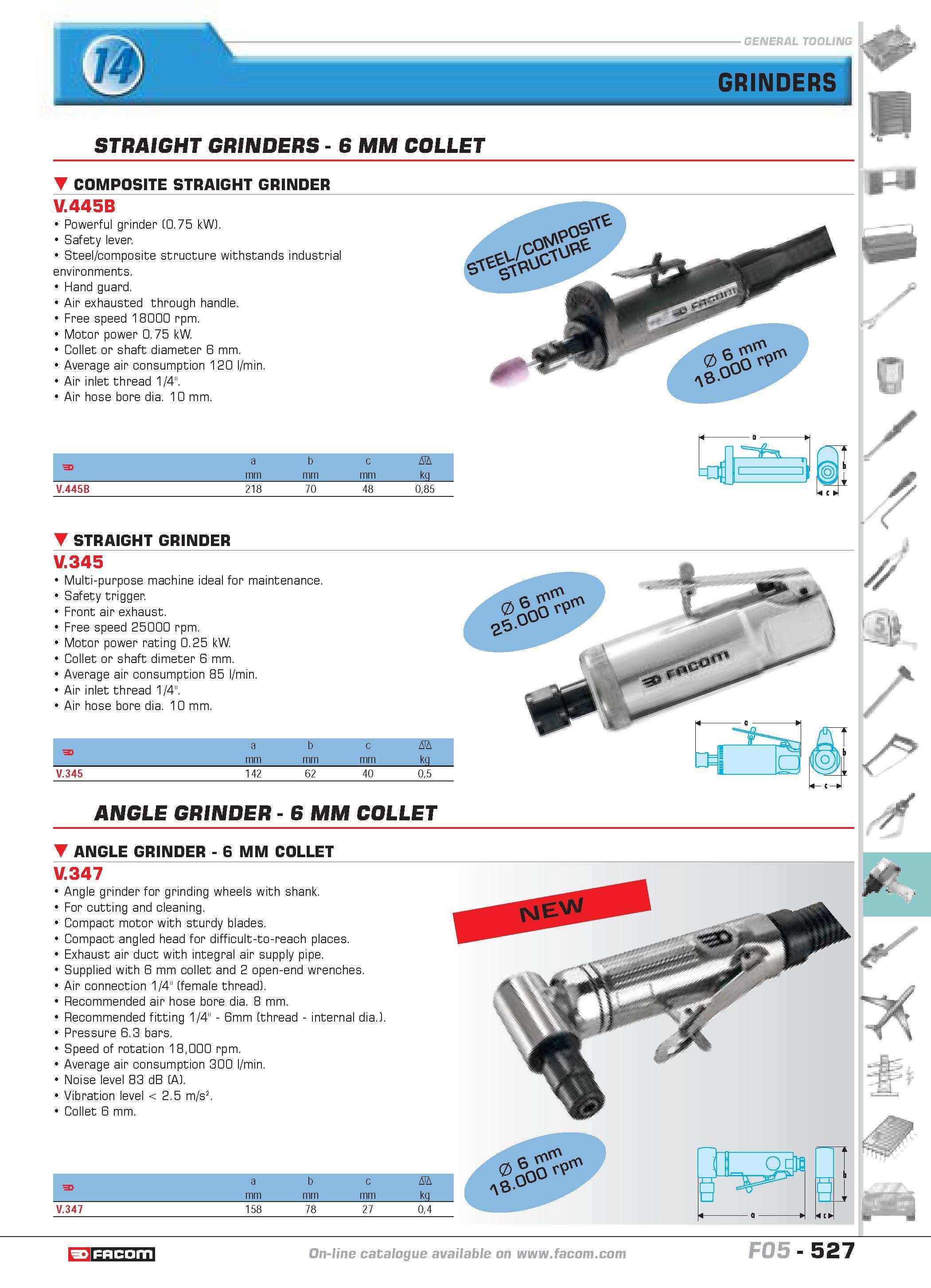

GRINDERS STRAIGHT GRINDERS 6 MM COLLET COMPOSITE STRAIGHT GRINDER V.445B Powerful grinder (0.75 kW). Safety lever. Steel composite structure withstands industrial environments. Hand guard. Air exhausted through handle. Free speed 18000 rpm. Motor power 0.75 kW. Collet or shaft diameter 6 mm. Average air consumption 120 l min. Air inlet thread 1 4". Air hose bore dia. 10 mm. a b c D mm kq V.445B 218 70 48 085 STRAIGHT GRINDER V.345 Multi-purpose machine ideal for maintenance. Safety trigger. Front air exhaust. Free speed 25000 rpm. Motor power rating 0.25 kW. Collet or shaft dimeter 6 mm. Average air consumption 85 l min. Air inlet thread 1 4". Air hose bore dia. 10 mm. a b c D mm kq V.345 142 62 40 05 ANGLE GRINDER 6 MM COLLET ANGLE GRINDER 6 MM COLLET V.347 Angle grinder for grinding wheels with shank. For cutting and cleaning. Compact motor with sturdy blades. Compact angled head for difficult-to-reach places. Exhaust air duct with integral air supply pipe. Supplied with 6 mm collet and 2 open-end wrenches. Air connection 1/4" (female thread). Recommended air hose bore dia. 8 mm. Recommended fitting 1/4" 6mm (thread internal dia.). Pressure 6.3 bars. Speed of rotation 18000 rpm. Average air consumption 300 l min. Noise level 83 dB (A). Vibration level 2.5 m sz. Collet 6 mm. a b c D mm kq V.347 158 78 27 04 catalogue FACOM F05- 527
