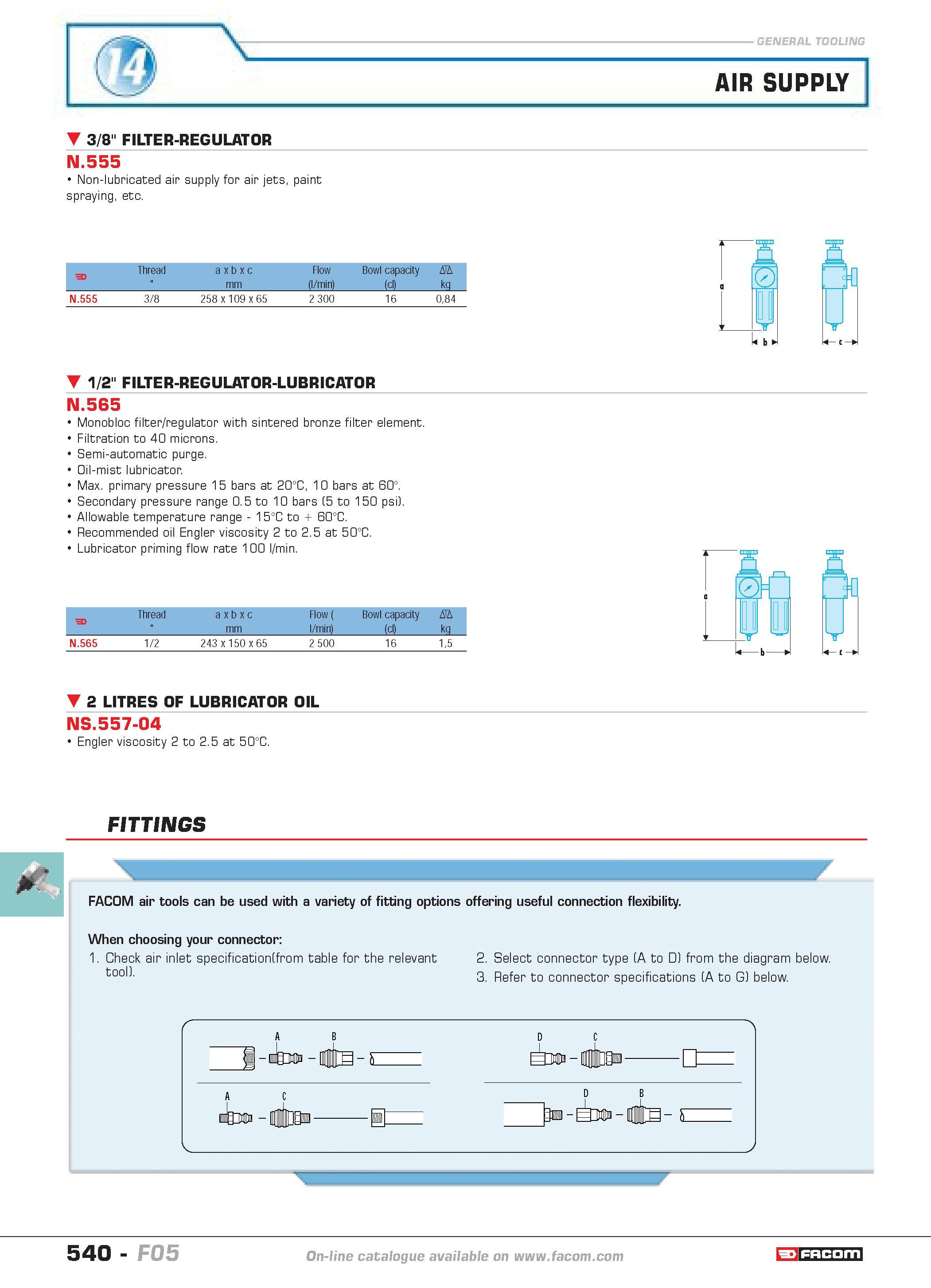

AIR SUPPLY 3/8" FILTER-REGULATOR N.555 Non-lubricated air supply for air jets paint spraying etc. Thread a x b x c Flow Bowl capacity D mm (l min) (cl) kg N.555 3 8 258 x 109 x 65 2 300 16 084 1/2" FILTER-REGULATOR-LUBRICATOR N.565 Monobloc filter regulator with sintered bronze filter element. Filtration to 40 microns. Semi-automatic purge. Oil-mist lubricator. Max. primary pressure 15 bars at 20C 10 bars at 60. Secondary pressure range 0.5 to 10 bars (5 to 150 psi). Allowable temperature range 15C to 60C. Recommended oil Engler viscosity 2 to 2.5 at 50C. Lubricator priming flow rate 100 l min. Thread a x b x c Flow ( Bowl capacity D mm l min) (cl) kg N.565 1 2 243 x 150 x 65 2 500 16 15 2 LITRES OF LUBRICATOR OIL NS.557-04 Engler viscosity 2 to 2.5 at 50C. FITTINGS FACOM air tools can be used with a variety of fitting options offering useful connection flexibility. When choosing your connector 1. Check air inlet specification(from table for the relevant tool). 2. Select connector type (A to D) from the diagram below. 3. Refer to connector specifications (A to G) below. 540 catalogue FACOM F05
