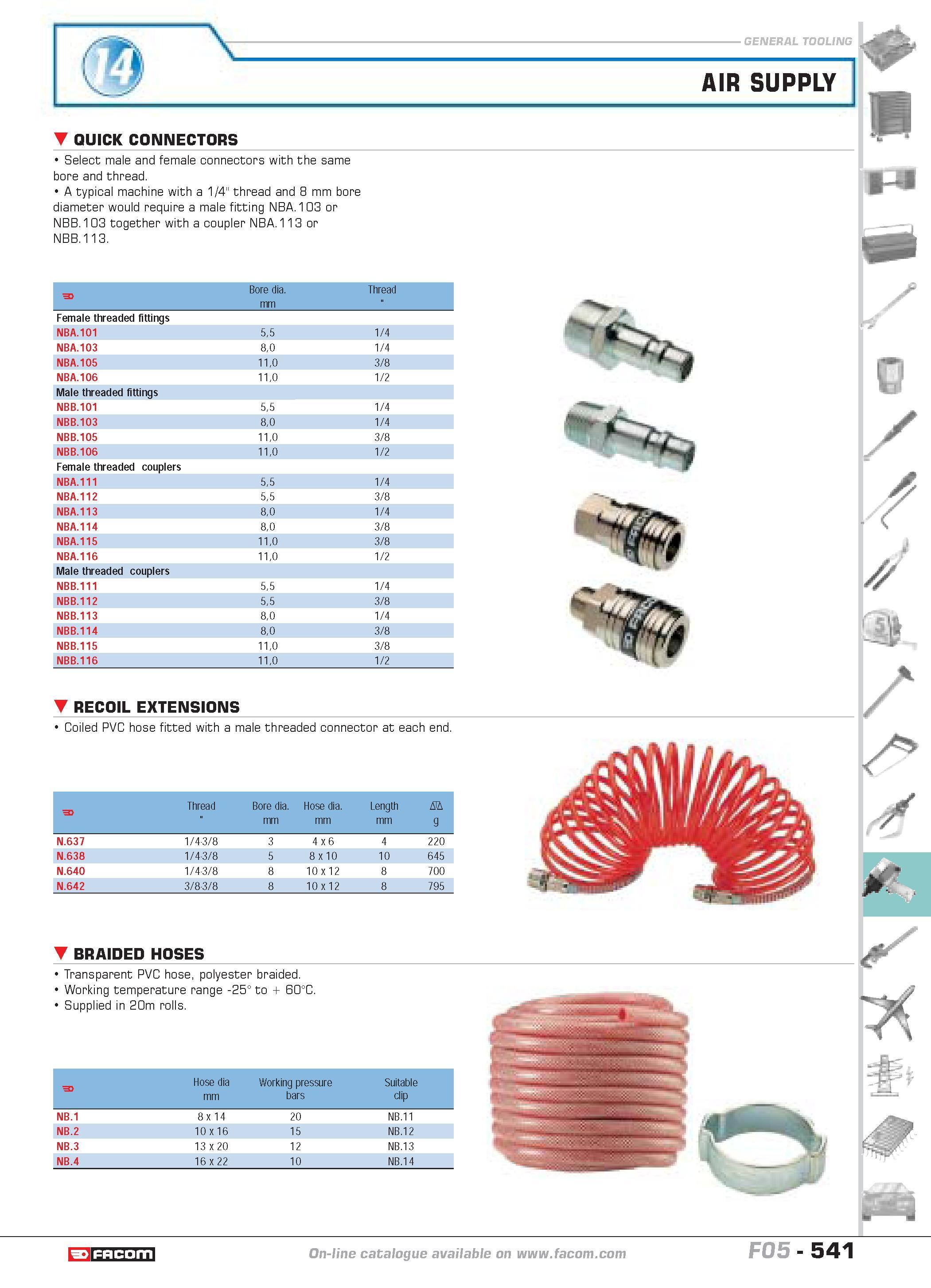

AIR SUPPLY QUICK CONNECTORS Select male and female connectors with the same bore and thread. A typical machine with a 1/4" thread and 8 mm bore diameter would require a male fitting NBA.103 or NBB.103 together with a coupler NBA.113 or NBB.113. Bore dia. mm Thread Female threaded fittings NBA.101 55 1 4 NBA.103 80 1 4 NBA.105 110 3 8 NBA.106 110 1 2 Male threaded fittings NBB.101 55 1 4 NBB.103 80 1 4 NBB.105 110 3 8 NBB.106 110 1 2 Female threaded couplers NBA.111 55 1 4 NBA.112 55 3 8 NBA.113 80 1 4 NBA.114 80 3 8 NBA.115 110 3 8 NBA.116 110 1 2 Male threaded couplers NBB.111 55 1 4 NBB.112 55 3 8 NBB.113 80 1 4 NBB.114 80 3 8 NBB.115 110 3 8 NBB.116 110 1 2 RECOIL EXTENSIONS Coiled PVC hose fitted with a male threaded connector at each end. Thread Bore dia. mm Hose dia. mm Length mm D g N.637 1 4-3 8 3 4 x 6 4 220 N.638 1 4-3 8 5 8 x 10 10 645 N.640 1 4-3 8 8 10 x 12 8 700 N.642 3 8-3 8 8 10 x 12 8 795 BRAIDED HOSES Transparent PVC hose polyester braided. Working temperature range -25 to 60C. Supplied in 20m rolls. Hose dia mm Working pressure bars Suitable clip NB.1 8 x 14 20 NB.11 NB.2 10 x 16 15 NB.12 NB.3 13 x 20 12 NB.13 NB.4 16 x 22 10 NB.14 catalogue FACOM F05 541
