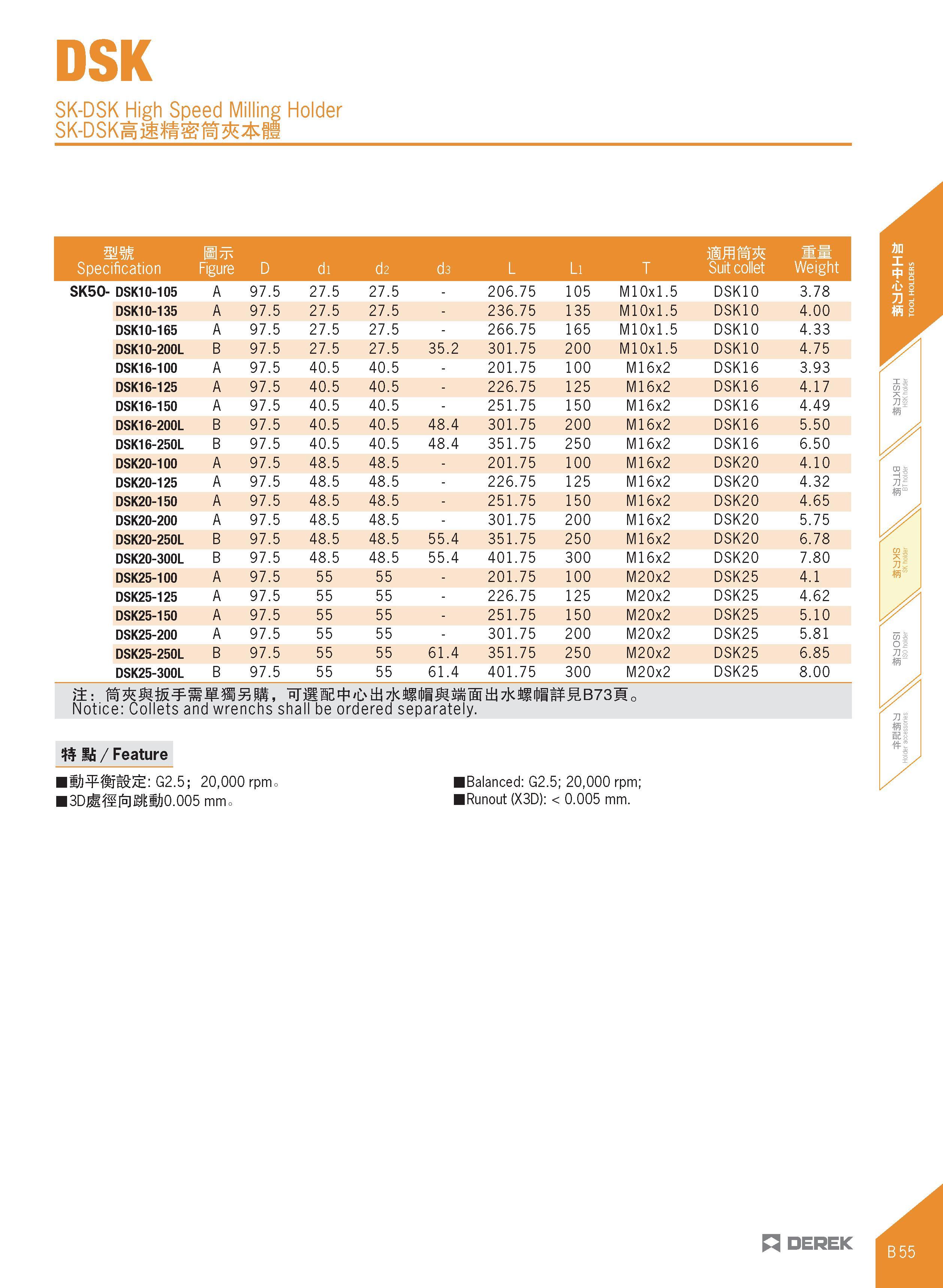

DSK SK-DSK High Speed Milling Holder SK-DSK j ft M fl Specification Bttc Figure D di d2 d3 L Li T Suit collet Weight SK50- DSK10-105 A 97.5 27.5 27.5 - 206.75 105 M10xl.5 DSK10 3.78 DSK10-135 A 97.5 27.5 27.5 - 236.75 135 M10xl.5 DSK10 4.00 DSK10-165 A 97.5 27.5 27.5 - 266.75 165 M10xl.5 DSK10 4.33 DSK10-200L B 97.5 27.5 27.5 35.2 301.75 200 M10xl.5 DSK10 4.75 DSK16-100 A 97.5 40.5 40.5 - 201.75 100 Ml 6x2 DSK16 3.93 DSK16-125 A 97.5 40.5 40.5 - 226.75 125 Ml 6x2 DSK16 4.17 DSK16-150 A 97.5 40.5 40.5 - 251.75 150 Ml 6x2 DSK16 4.49 DSK16-200L B 97.5 40.5 40.5 48.4 301.75 200 Ml 6x2 DSK16 5.50 DSK16-250L B 97.5 40.5 40.5 48.4 351.75 250 Ml 6x2 DSK16 6.50 DSK20-100 A 97.5 48.5 48.5 - 201.75 100 Ml 6x2 DSK20 4.10 DSK20-125 A 97.5 48.5 48.5 - 226.75 125 Ml 6x2 DSK20 4.32 DSK20-150 A 97.5 48.5 48.5 - 251.75 150 Ml 6x2 DSK20 4.65 DSK20-200 A 97.5 48.5 48.5 - 301.75 200 Ml 6x2 DSK20 5.75 DSK20-250L B 97.5 48.5 48.5 55.4 351.75 250 Ml 6x2 DSK20 6.78 DSK20-300L B 97.5 48.5 48.5 55.4 401.75 300 Ml 6x2 DSK20 7.80 DSK25-100 A 97.5 55 55 - 201.75 100 M20x2 DSK25 4.1 DSK25-125 A 97.5 55 55 - 226.75 125 M20x2 DSK25 4.62 DSK25-150 A 97.5 55 55 - 251.75 150 M20x2 DSK25 5.10 DSK25-200 A 97.5 55 55 - 301.75 200 M20x2 DSK25 5.81 DSK25-250L B 97.5 55 55 61.4 351.75 250 M20x2 DSK25 6.85 DSK25-300L B 97.5 55 55 61.4 401.75 300 M20x2 DSK25 8.00 Notice: Collets and wrenchs shall be ordered separately. : £ / Feature S)¥iil£ : G2.5; 20,000 rpmo 3D S S lll0.005 mm. Balanced: G2.5; 20,000 rpm; Runout (X3D): < 0.005 mm. n DEREK
