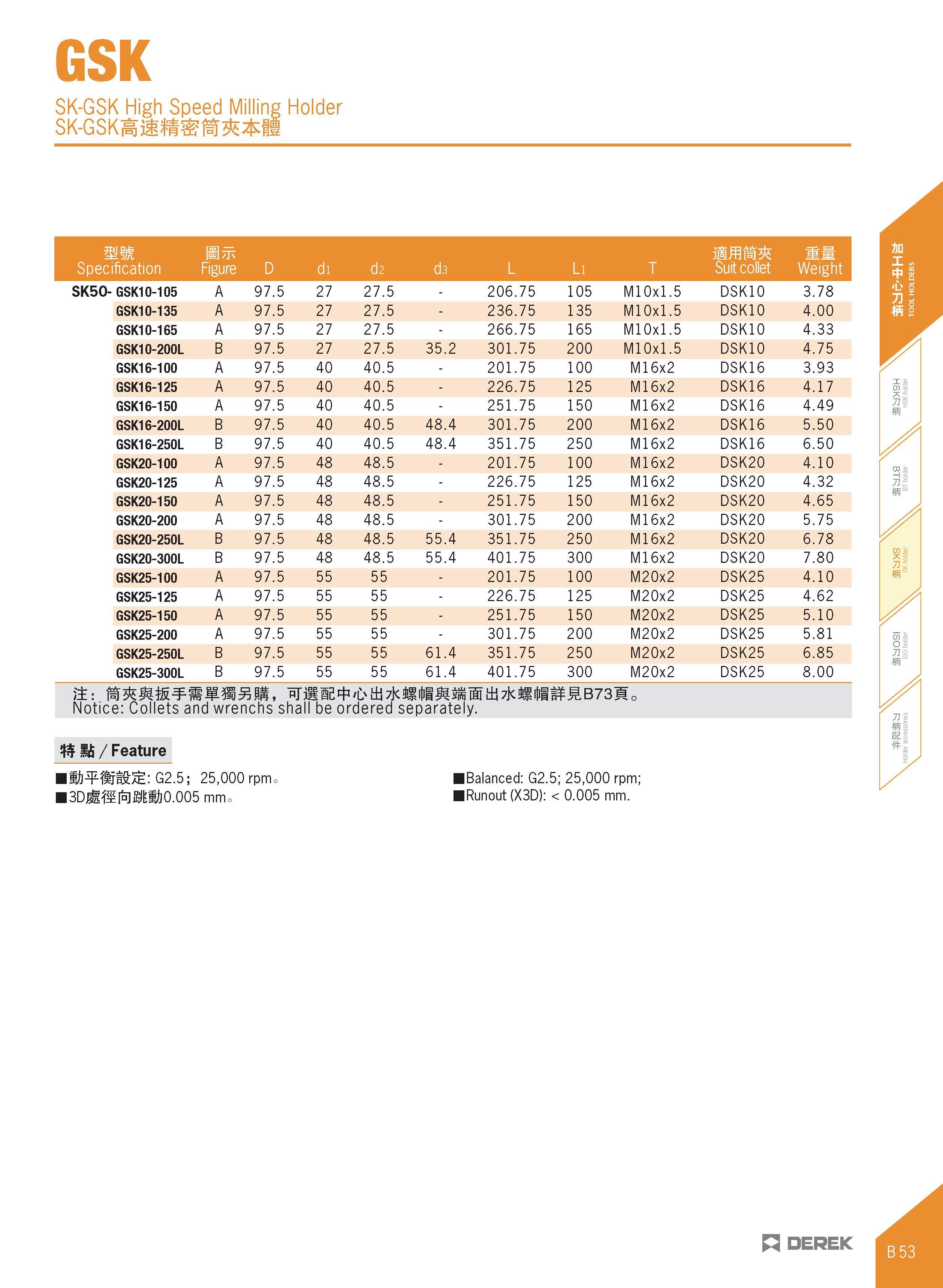

GSK SK-GSK High Speed Milling Holder SK-GSK j ft M fl mm Specification Bttc Figure D di d2 d3 L Li T Suit collet Weight SK50- GSK10-105 A 97.5 27 27.5 - 206.75 105 M10xl.5 DSK10 3.78 GSK10-135 A 97.5 27 27.5 - 236.75 135 M10xl.5 DSK10 4.00 GSK10-165 A 97.5 27 27.5 - 266.75 165 M10xl.5 DSK10 4.33 GSK10-200L B 97.5 27 27.5 35.2 301.75 200 M10xl.5 DSK10 4.75 GSK16-100 A 97.5 40 40.5 - 201.75 100 Ml 6x2 DSK16 3.93 GSK16-125 A 97.5 40 40.5 - 226.75 125 Ml 6x2 DSK16 4.17 GSK16-150 A 97.5 40 40.5 - 251.75 150 Ml 6x2 DSK16 4.49 GSK16-200L B 97.5 40 40.5 48.4 301.75 200 Ml 6x2 DSK16 5.50 GSK16-250L B 97.5 40 40.5 48.4 351.75 250 Ml 6x2 DSK16 6.50 GSK20-100 A 97.5 48 48.5 - 201.75 100 Ml 6x2 DSK20 4.10 GSK20-125 A 97.5 48 48.5 - 226.75 125 Ml 6x2 DSK20 4.32 GSK20-150 A 97.5 48 48.5 - 251.75 150 Ml 6x2 DSK20 4.65 GSK20-200 A 97.5 48 48.5 - 301.75 200 Ml 6x2 DSK20 5.75 GSK20-250L B 97.5 48 48.5 55.4 351.75 250 Ml 6x2 DSK20 6.78 GSK20-300L B 97.5 48 48.5 55.4 401.75 300 Ml 6x2 DSK20 7.80 GSK25-100 A 97.5 55 55 - 201.75 100 M20x2 DSK25 4.10 GSK25-125 A 97.5 55 55 - 226.75 125 M20x2 DSK25 4.62 GSK25-150 A 97.5 55 55 - 251.75 150 M20x2 DSK25 5.10 GSK25-200 A 97.5 55 55 - 301.75 200 M20x2 DSK25 5.81 GSK25-250L B 97.5 55 55 61.4 351.75 250 M20x2 DSK25 6.85 GSK25-300L B 97.5 55 55 61.4 401.75 300 M20x2 DSK25 8.00 Notice: Collets and wrenchs shall be ordered separately. : £ / Feature S)¥iil£ : G2.5; 25,000rpmo 3D S S lll0.005 mm. Balanced: G2.5; 25,000 rpm; Runout (X3D): < 0.005 mm. DEPEK
