164 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.B52

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. B52 0164 Lab2u

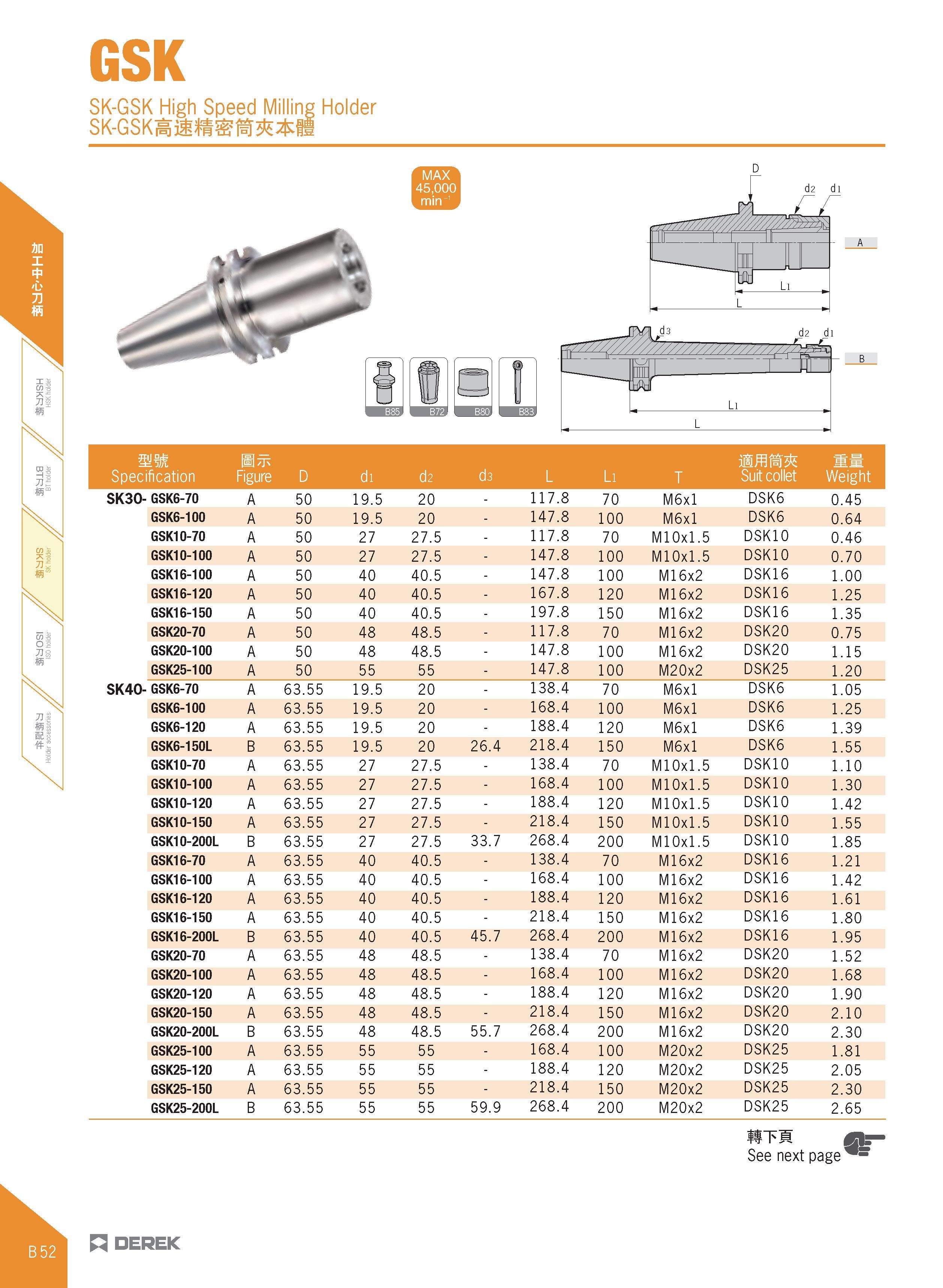

GSK SK-GSK High Speed Milling Holder SK-GSK j ft M fl mm Specification Bttc Figure D di d2 d3 L Li T Suit collet Weight SK30- GSK6-70 A 50 19.5 20 - 117.8 70 M6xl DSK6 0.45 GSK6-100 A 50 19.5 20 - 147.8 100 M6xl DSK6 0.64 GSK10-70 A 50 27 27.5 - 117.8 70 M10xl.5 DSK10 0.46 GSK10-100 A 50 27 27.5 - 147.8 100 M10xl.5 DSK10 0.70 GSK16-100 A 50 40 40.5 - 147.8 100 M16x2 DSK16 1.00 GSK16-120 A 50 40 40.5 - 167.8 120 M16x2 DSK16 1.25 GSK16-150 A 50 40 40.5 - 197.8 150 M16x2 DSK16 1.35 GSK20-70 A 50 48 48.5 - 117.8 70 M16x2 DSK20 0.75 GSK20-100 A 50 48 48.5 - 147.8 100 M16x2 DSK20 1.15 GSK25-100 A 50 55 55 - 147.8 100 M20x2 DSK25 1.20 SK40- GSK6-70 A 63.55 19.5 20 - 138.4 70 M6xl DSK6 1.05 GSK6-100 A 63.55 19.5 20 - 168.4 100 M6xl DSK6 1.25 GSK6-120 A 63.55 19.5 20 - 188.4 120 M6xl DSK6 1.39 GSK6-150L B 63.55 19.5 20 26.4 218.4 150 M6xl DSK6 1.55 GSK10-70 A 63.55 27 27.5 - 138.4 70 M10xl.5 DSK10 1.10 GSK10-100 A 63.55 27 27.5 - 168.4 100 M10xl.5 DSK10 1.30 GSK10-120 A 63.55 27 27.5 - 188.4 120 M10xl.5 DSK10 1.42 GSK10-150 A 63.55 27 27.5 - 218.4 150 M10xl.5 DSK10 1.55 GSK10-200L B 63.55 27 27.5 33.7 268.4 200 M10xl.5 DSK10 1.85 GSK16-70 A 63.55 40 40.5 - 138.4 70 Ml 6x2 DSK16 1.21 GSK16-100 A 63.55 40 40.5 - 168.4 100 Ml 6x2 DSK16 1.42 GSK16-120 A 63.55 40 40.5 - 188.4 120 Ml 6x2 DSK16 1.61 GSK16-150 A 63.55 40 40.5 - 218.4 150 Ml 6x2 DSK16 1.80 GSK16-200L B 63.55 40 40.5 45.7 268.4 200 Ml 6x2 DSK16 1.95 GSK20-70 A 63.55 48 48.5 - 138.4 70 Ml 6x2 DSK20 1.52 GSK20-100 A 63.55 48 48.5 - 168.4 100 Ml 6x2 DSK20 1.68 GSK20-120 A 63.55 48 48.5 - 188.4 120 Ml 6x2 DSK20 1.90 GSK20-150 A 63.55 48 48.5 - 218.4 150 Ml 6x2 DSK20 2.10 GSK20-200L B 63.55 48 48.5 55.7 268.4 200 Ml 6x2 DSK20 2.30 GSK25-100 A 63.55 55 55 - 168.4 100 M20x2 DSK25 1.81 GSK25-120 A 63.55 55 55 - 188.4 120 M20x2 DSK25 2.05 GSK25-150 A 63.55 55 55 - 218.4 150 M20x2 DSK25 2.30 GSK25-200L B 63.55 55 55 59.9 268.4 200 M20x2 DSK25 2.65 See next page n DEREK
