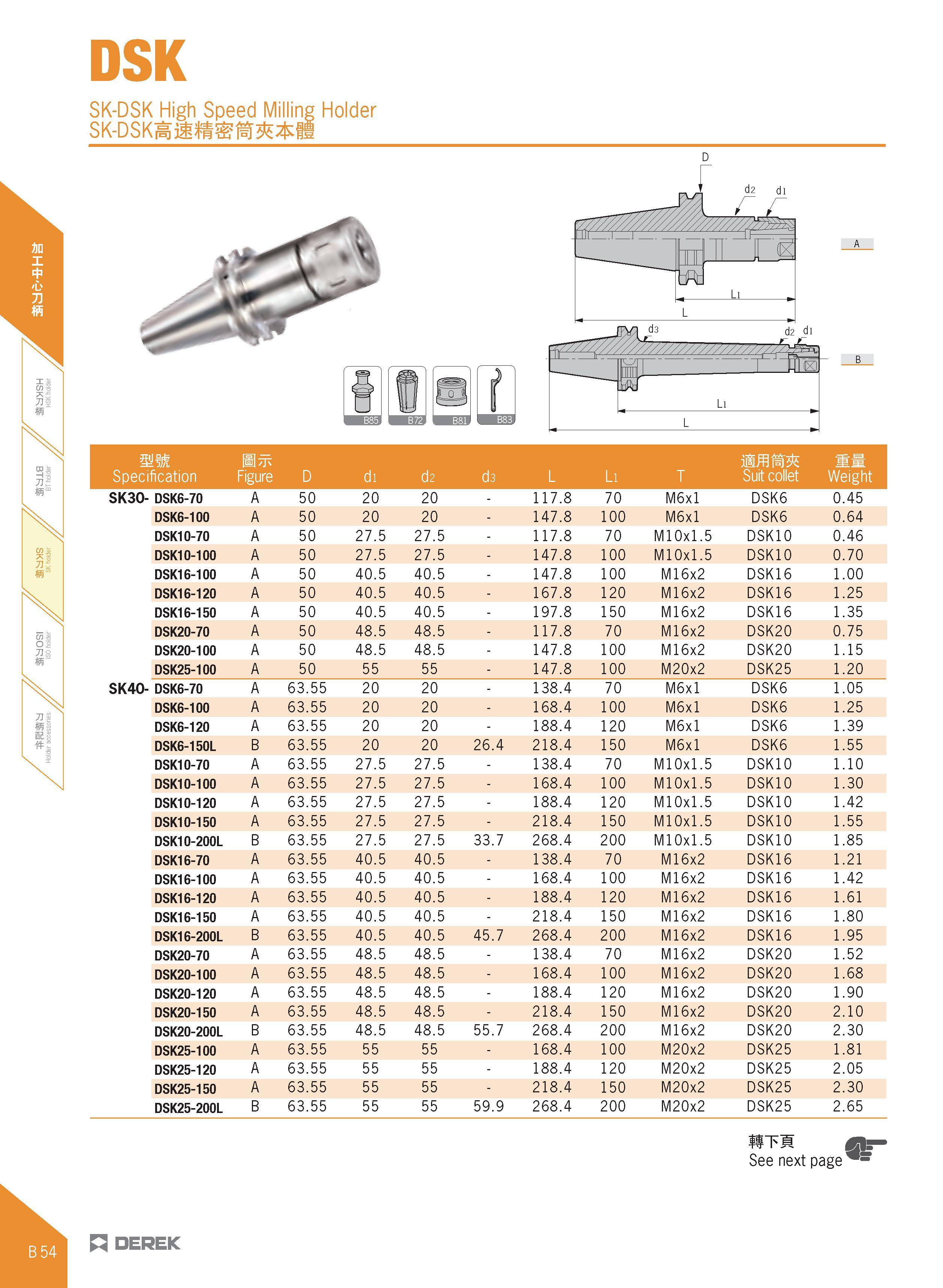

OI 7JS. 711 m DSK SK-DSK High Speed Milling Holder SK-DSK iift M fl d2 di Specification Bttc Figure D di d2 d3 L Li T Suit collet Weight SK30- DSK6-70 A 50 20 20 - 117.8 70 M6xl DSK6 0.45 DSK6-100 A 50 20 20 - 147.8 100 M6xl DSK6 0.64 DSK10-70 A 50 27.5 27.5 - 117.8 70 M10xl.5 DSK10 0.46 DSK10-100 A 50 27.5 27.5 - 147.8 100 M10xl.5 DSK10 0.70 DSK16-100 A 50 40.5 40.5 - 147.8 100 Ml 6x2 DSK16 1.00 DSK16-120 A 50 40.5 40.5 - 167.8 120 Ml 6x2 DSK16 1.25 DSK16-150 A 50 40.5 40.5 - 197.8 150 Ml 6x2 DSK16 1.35 DSK20-70 A 50 48.5 48.5 - 117.8 70 Ml 6x2 DSK20 0.75 DSK20-100 A 50 48.5 48.5 - 147.8 100 Ml 6x2 DSK20 1.15 DSK25-100 A 50 55 55 - 147.8 100 M20x2 DSK25 1.20 SK40- DSK6-70 A 63.55 20 20 - 138.4 70 M6xl DSK6 1.05 DSK6-100 A 63.55 20 20 - 168.4 100 M6xl DSK6 1.25 DSK6-120 A 63.55 20 20 - 188.4 120 M6xl DSK6 1.39 DSK6-150L B 63.55 20 20 26.4 218.4 150 M6xl DSK6 1.55 DSK10-70 A 63.55 27.5 27.5 - 138.4 70 M10xl.5 DSK10 1.10 DSK10-100 A 63.55 27.5 27.5 - 168.4 100 M10xl.5 DSK10 1.30 DSK10-120 A 63.55 27.5 27.5 - 188.4 120 M10xl.5 DSK10 1.42 DSK10-150 A 63.55 27.5 27.5 - 218.4 150 M10xl.5 DSK10 1.55 DSK10-200L B 63.55 27.5 27.5 33.7 268.4 200 M10xl.5 DSK10 1.85 DSK16-70 A 63.55 40.5 40.5 - 138.4 70 Ml 6x2 DSK16 1.21 DSK16-100 A 63.55 40.5 40.5 - 168.4 100 Ml 6x2 DSK16 1.42 DSK16-120 A 63.55 40.5 40.5 - 188.4 120 Ml 6x2 DSK16 1.61 DSK16-150 A 63.55 40.5 40.5 - 218.4 150 Ml 6x2 DSK16 1.80 DSK16-200L B 63.55 40.5 40.5 45.7 268.4 200 Ml 6x2 DSK16 1.95 DSK20-70 A 63.55 48.5 48.5 - 138.4 70 Ml 6x2 DSK20 1.52 DSK20-100 A 63.55 48.5 48.5 - 168.4 100 Ml 6x2 DSK20 1.68 DSK20-120 A 63.55 48.5 48.5 - 188.4 120 Ml 6x2 DSK20 1.90 DSK20-150 A 63.55 48.5 48.5 - 218.4 150 Ml 6x2 DSK20 2.10 DSK20-200L B 63.55 48.5 48.5 55.7 268.4 200 Ml 6x2 DSK20 2.30 DSK25-100 A 63.55 55 55 - 168.4 100 M20x2 DSK25 1.81 DSK25-120 A 63.55 55 55 - 188.4 120 M20x2 DSK25 2.05 DSK25-150 A 63.55 55 55 - 218.4 150 M20x2 DSK25 2.30 DSK25-200L B 63.55 55 55 59.9 268.4 200 M20x2 DSK25 2.65 IITM See next page n DEREK
