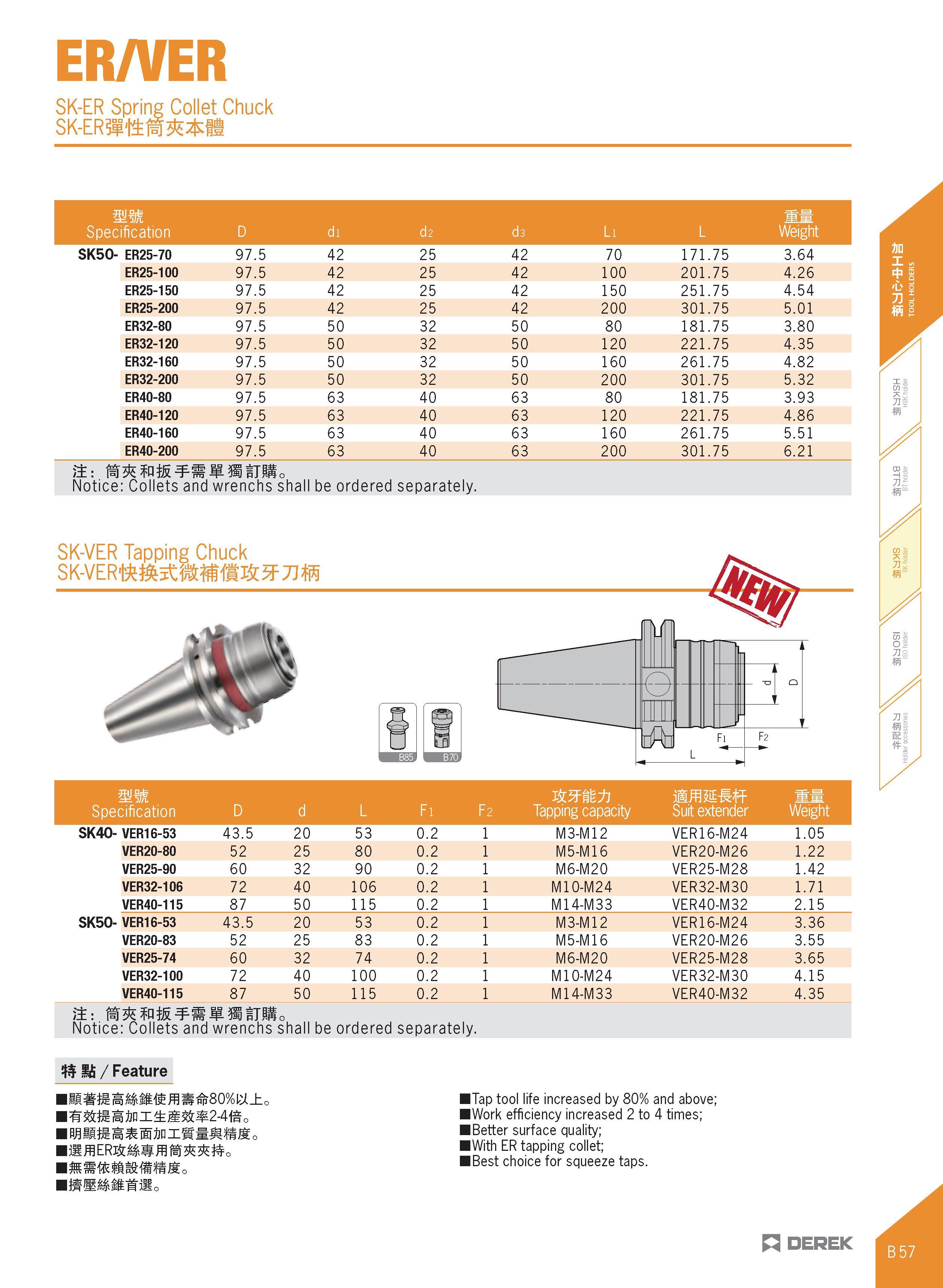

ER/VER SK-ER Spring Collet Chuck SK-ER itt1 il mm Specification D di d2 d3 Li L Ww Weight SK50- ER25-70 97.5 42 25 42 70 171.75 3.64 ER25-100 97.5 42 25 42 100 201.75 4.26 ER25-150 97.5 42 25 42 150 251.75 4.54 ER25-200 97.5 42 25 42 200 301.75 5.01 ER32-80 97.5 50 32 50 80 181.75 3.80 ER32-120 97.5 50 32 50 120 221.75 4.35 ER32-160 97.5 50 32 50 160 261.75 4.82 ER32-200 97.5 50 32 50 200 301.75 5.32 ER40-80 97.5 63 40 63 80 181.75 3.93 ER40-120 97.5 63 40 63 120 221.75 4.86 ER40-160 97.5 63 40 63 160 261.75 5.51 ER40-200 97.5 63 40 63 200 301.75 6.21 jit: M n Wi m iTIl Notice: Collets and wrenchs shall be ordered separately. SK-VER Tapping Chuck mm Specification D d L Fi F2 Tapping capacity Suit extender Ww Weight SK40- VER16-53 43.5 20 53 0.2 1 M3-M12 VER16-M24 1.05 VER20-80 52 25 80 0.2 1 M5-M16 VER20-M26 1.22 VER25-90 60 32 90 0.2 1 M6-M20 VER25-M28 1.42 VER32-106 72 40 106 0.2 1 M10-M24 VER32-M30 1.71 VER40-115 87 50 115 0.2 1 M14-M33 VER40-M32 2.15 SK50- VER16-53 43.5 20 53 0.2 1 M3-M12 VER16-M24 3.36 VER20-83 52 25 83 0.2 1 M5-M16 VER20-M26 3.55 VER25-74 60 32 74 0.2 1 M6-M20 VER25-M28 3.65 VER32-100 72 40 100 0.2 1 M10-M24 VER32-M30 4.15 VER40-115 87 50 115 0.2 1 M14-M33 VER40-M32 4.35 j±: Notice: Collets and wrenchs shall be ordered separately. S li / Feature te S np 80% W t o I RE HtH is in iSsHfifi o I ERi£ p ffl W & & 0 ITap tool life increased by 80% and above; IWork efficiency increased 2 to 4 times; I Better surface quality; IWith ER tapping collet; I Best choice for squeeze taps. H DEREK
