172 Каталог DEREK 2017 Режущий инструмент и оснастка инструментальная для станков Стр.B60

Каталог DEREK 2017 Инструмент и оснастка для станков Стр. B60 0172 Lab2u

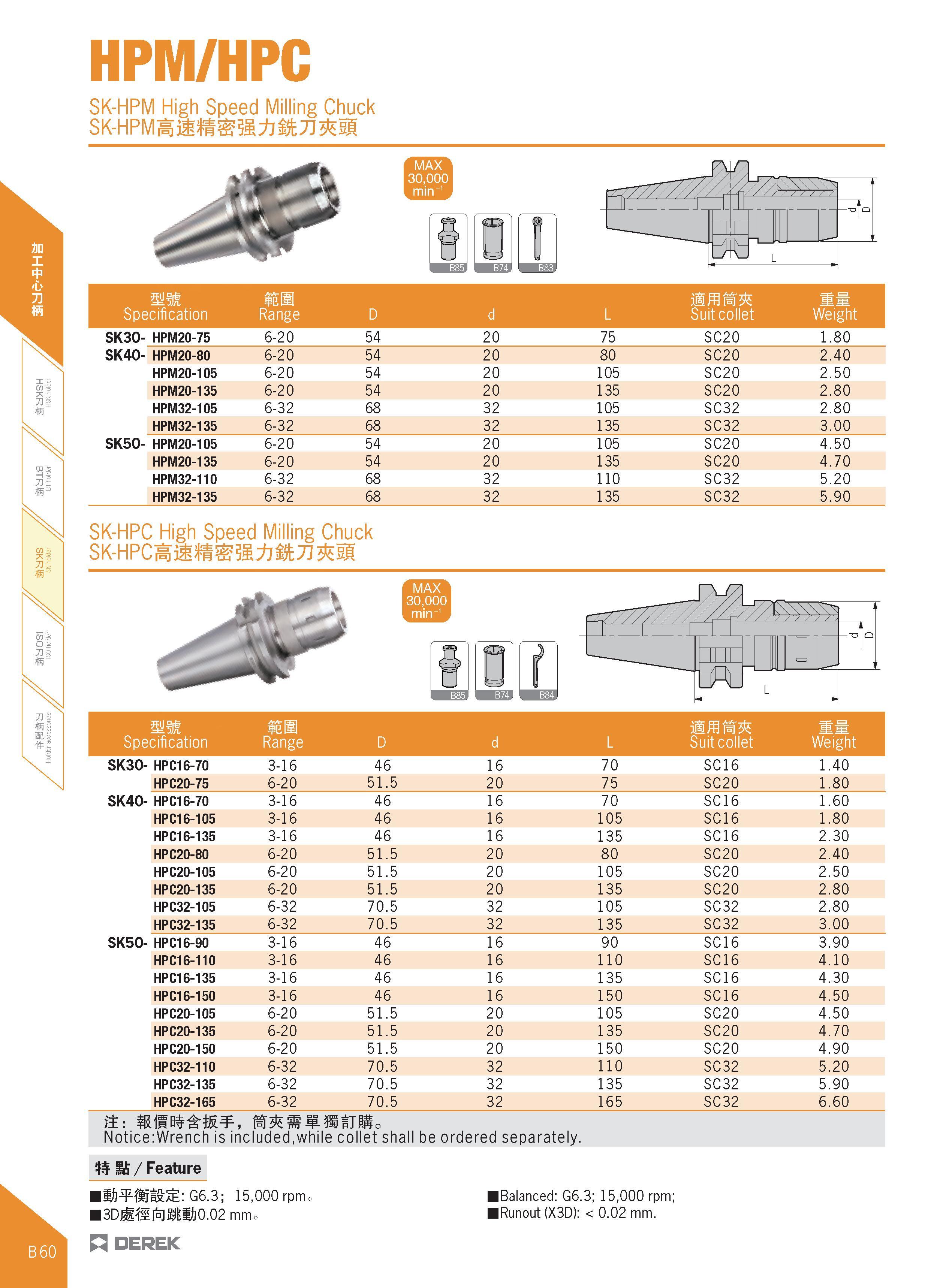

HPM/HPC SK-HPM High Speed Milling Chuck SK-HPMEi£ 3S 8fe7J 5i - \\\\ ii -o q bWd L mm Specification mm Range D d L Suit collet Weight SK30- HPM20-75 6-20 54 20 75 SC20 1.80 SK40- HPM20-80 6-20 54 20 80 SC20 2.40 HPM20-105 6-20 54 20 105 SC20 2.50 HPM20-135 6-20 54 20 135 SC20 2.80 HPM32-105 6-32 68 32 105 SC32 2.80 HPM32-135 6-32 68 32 135 SC32 3.00 SK50- HPM20-105 6-20 54 20 105 SC20 4.50 HPM20-135 6-20 54 20 135 SC20 4.70 HPM32-110 6-32 68 32 110 SC32 5.20 HPM32-135 6-32 68 32 135 SC32 5.90 SK-HPC High Speed Milling Chuck SK-HPCEig 3S 8fe7J 5i mm Specification mm Range D d L Suit collet Weight SK30- HPC16-70 3-16 46 16 70 SC16 1.40 HPC20-75 6-20 51.5 20 75 SC20 1.80 SK40- HPC16-70 3-16 46 16 70 SC16 1.60 HPC16-105 3-16 46 16 105 SC16 1.80 HPC16-135 3-16 46 16 135 SC16 2.30 HPC20-80 6-20 51.5 20 80 SC20 2.40 HPC20-105 6-20 51.5 20 105 SC20 2.50 HPC20-135 6-20 51.5 20 135 SC20 2.80 HPC32-105 6-32 70.5 32 105 SC32 2.80 HPC32-135 6-32 70.5 32 135 SC32 3.00 SK50- HPC16-90 3-16 46 16 90 SC16 3.90 HPC16-110 3-16 46 16 110 SC16 4.10 HPC16-135 3-16 46 16 135 SC16 4.30 HPC16-150 3-16 46 16 150 SC16 4.50 HPC20-105 6-20 51.5 20 105 SC20 4.50 HPC20-135 6-20 51.5 20 135 SC20 4.70 HPC20-150 6-20 51.5 20 150 SC20 4.90 HPC32-110 6-32 70.5 32 110 SC32 5.20 HPC32-135 6-32 70.5 32 135 SC32 5.90 HPC32-165 6-32 70.5 32 165 SC32 6.60 j±: ffi&i ilTIl Notice:Wrench is included,while collet shall be ordered separately. S li / Feature S)¥iil£ : G6.3; 15,000 rpmc 3DjtfeMS)0.02 mm. ZZ DEREK IBalanced: G6.3; 15,000 rpm; IRunout (X3D): < 0.02 mm.
