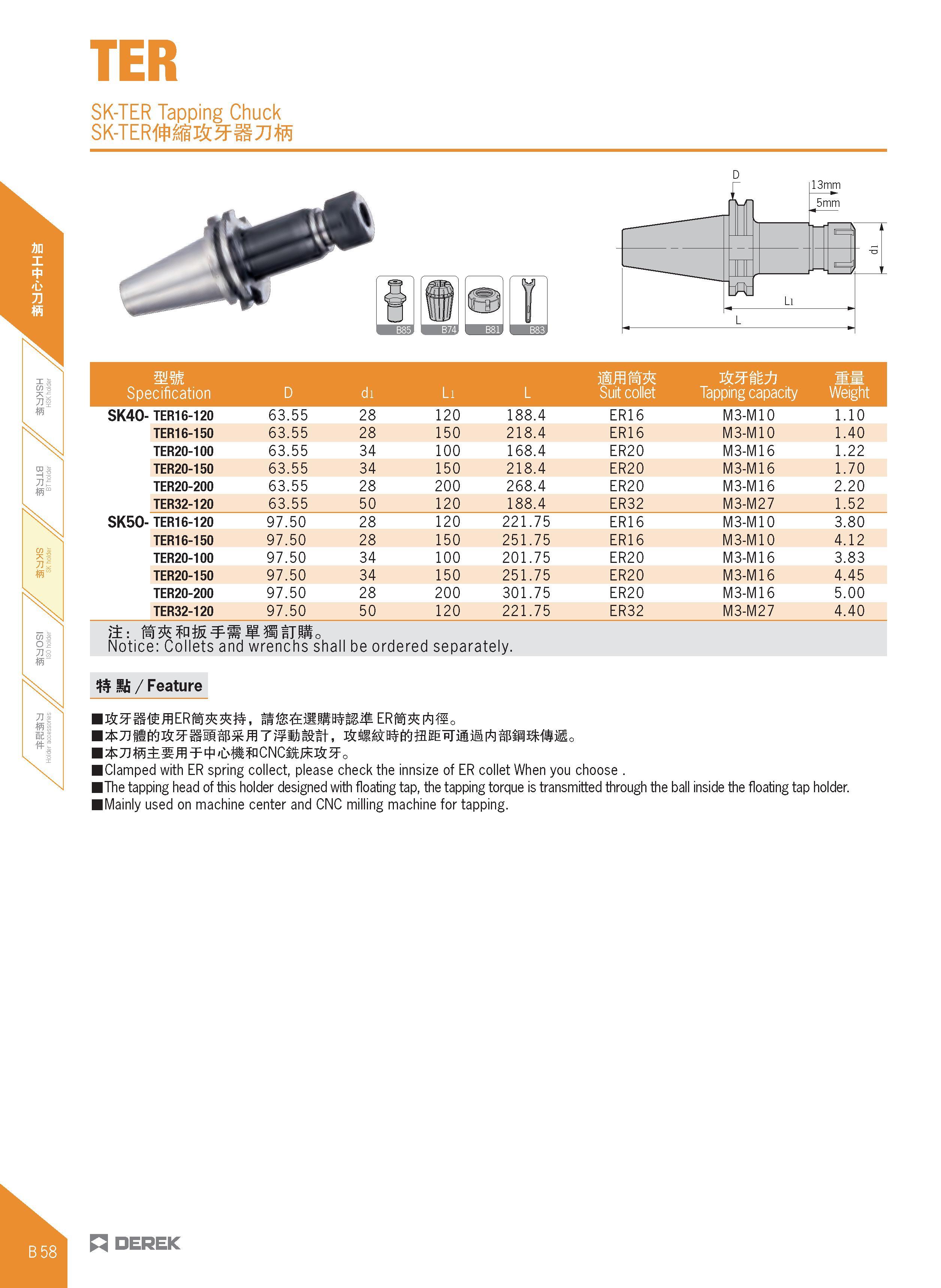

TER SK-TER Tapping Chuck SK-TER aU&5f&7J 5 'H' mm Specification D di Li L Suit collet Tapping capacity Ww Weight SK40- TER16-120 63.55 28 120 188.4 ER16 M3-M10 1.10 TER16-150 63.55 28 150 218.4 ER16 M3-M10 1.40 TER20-100 63.55 34 100 168.4 ER20 M3-M16 1.22 TER20-150 63.55 34 150 218.4 ER20 M3-M16 1.70 TER20-200 63.55 28 200 268.4 ER20 M3-M16 2.20 TER32-120 63.55 50 120 188.4 ER32 M3-M27 1.52 SK50- TER16-120 97.50 28 120 221.75 ER16 M3-M10 3.80 TER16-150 97.50 28 150 251.75 ER16 M3-M10 4.12 TER20-100 97.50 34 100 201.75 ER20 M3-M16 3.83 TER20-150 97.50 34 150 251.75 ER20 M3-M16 4.45 TER20-200 97.50 28 200 301.75 ER20 M3-M16 5.00 TER32-120 97.50 50 120 221.75 ER32 M3-M27 4.40 llTIl Notice: Collets and wrenchs shall be ordered separately. &3f ER rtSo =Ft > 'MtfaCNCf£j i£5T0 Clamped with ER spring collect, please check the innsize of ER collet When you choose . The tapping head of this holder designed with floating tap, the tapping torque is transmitted through the ball inside the floating tap holder. Mainly used on machine center and CNC milling machine for tapping. ZZ DEREK
